1200 Air-Cooled Dual-Temp Worktop Refrigerator Freezer
Highlights
- Dual-temperature refrigerator and freezer combination
- Refrigerator temperature range: 0~+5°C
- Freezer temperature range: -22~-18°C
- High-efficiency forced-air cooling system
- Smart airflow circulation for stable temperature control
- Environmentally friendly R290 refrigerant (GWP=3)
- Low temperature fluctuation for better food preservation
- SUS201 stainless steel interior and exterior construction
- Electric auto defrost with condensate self-evaporation
The YTA-120FR D/T Air-Cooled Worktop Refrigerator Freezer is a compact and versatile commercial refrigeration solution designed for restaurants, cafés, bakeries, hotel kitchens, and professional food preparation environments. Combining both refrigeration and freezing functions in one unit, it maximizes kitchen efficiency while saving valuable workspace.
Featuring independent dual-temperature zones, the unit provides precise cooling performance for both the refrigerator compartment (0~+5°C) and the freezer compartment (-22~-18°C). Its advanced forced-air circulation system and intelligent airflow technology ensure even cold air distribution with minimal temperature fluctuation, helping preserve food freshness and frozen products under demanding commercial conditions.
Built with durable SUS201 stainless steel and powered by environmentally friendly R290 refrigerant, the YTA-120FR D/T offers reliable performance, energy efficiency, and long service life. The integrated stainless steel worktop also provides additional preparation space, making it ideal for busy commercial kitchens.
Highlights
- Dual-temperature refrigerator and freezer combination
- Refrigerator temperature range: 0~+5°C
- Freezer temperature range: -22~-18°C
- High-efficiency forced-air cooling system
- Smart airflow circulation for stable temperature control
- Environmentally friendly R290 refrigerant (GWP=3)
- Low temperature fluctuation for better food preservation
- SUS201 stainless steel interior and exterior construction
- Electric auto defrost with condensate self-evaporation
- Front-access removable filter for easy maintenance
- Rounded interior corners for hygienic cleaning
- Heavy-duty foamed-in-place structure
- Electrophoresis-coated anti-corrosion evaporator
- Optional LED lighting and door lock
- Optional adjustable casters or feet
- Optional SUS304 stainless steel upgrade
- Optional RS485 ModBus communication interface
- Suitable for commercial kitchens up to 43°C ambient temperature
Technical Specifications
| Item | Specification |
|---|---|
| Model | YTA-120FR D/T |
| Product Type | Dual-Temp Worktop Refrigerator Freezer |
| Refrigerator Temperature Range | 0~+5°C |
| Freezer Temperature Range | -22~-18°C |
| Cooling Unit | Self-contained |
| Refrigeration Capacity | 500W |
| Refrigerant | R290 (GWP=3) |
| Refrigerant Charge | 60g |
| Refrigeration System | Forced Air Circulation |
| Defrost System | Electric Defrost, Microprocessor-Controlled |
| Insulation Material | Cyclopentane |
| Insulation Thickness | 60 mm |
| Exterior Material | SUS201 Stainless Steel + Galvanized Back/Bottom |
| Interior Material | SUS201 Stainless Steel |
| Shelves | 2 pcs Plastic-Coated Food-Grade Shelves |
| Feet Height | H100~120 mm |
| Optional Casters | H128 mm Adjustable Casters |
| Voltage | 220-240V AC / 50-60Hz |
| Rated Power | 190W |
| Rated Current | 1.88A |
| Climate Class | 4 |
| Operating Ambient Temperature | 5~43°C |
| Test Standard | ISO 22041 |

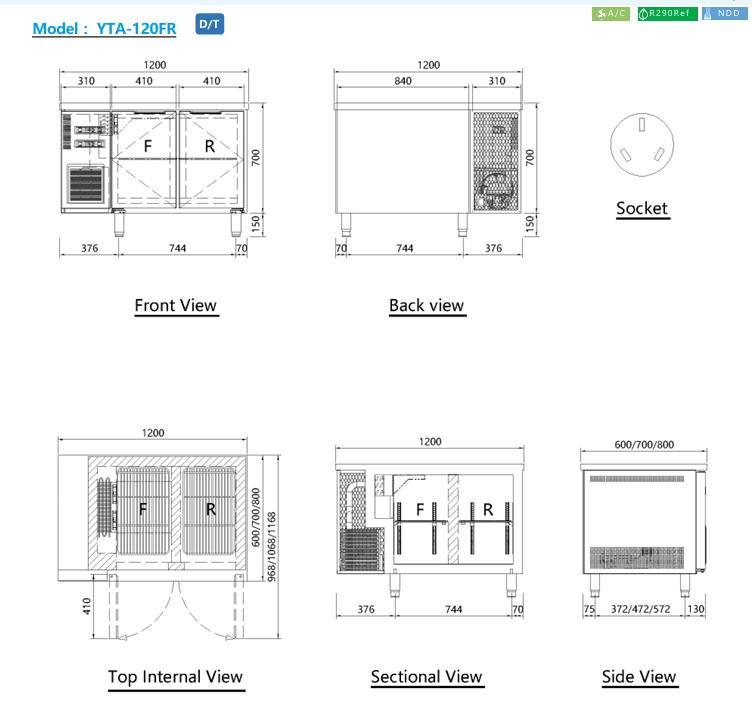

Dimensions & Capacity
| Configuration | 600D | 700D | 800D |
|---|---|---|---|
| Freezer Net Capacity | 99L | 121L | 140L |
| Refrigerator Net Capacity | 99L | 121L | 140L |
| Gross Capacity | 203L | 247L | 290L |
| External Dimensions (W×D×H) | 1200×600×800 mm | 1200×700×800 mm | 1200×800×800 mm |
| Internal Dimensions (W×D×H) | 880×412×570 mm | 880×512×570 mm | 880×612×570 mm |
| Door Swing Space | 1200×968×800 mm | 1200×1068×800 mm | 1200×1168×800 mm |
| Package Dimensions | 1230×630×860 mm | 1230×730×860 mm | 1230×830×860 mm |
| Net Weight | 55 kg | 57 kg | 59 kg |
| Gross Weight | 65 kg | 67 kg | 69 kg |
Applications
The YTA-120FR D/T commercial dual-temp worktop refrigerator freezer is suitable for:
- Restaurants
- Hotel kitchens
- Bakeries
- Cafés and coffee shops
- Catering operations
- Fast food chains
- Commercial food preparation stations
- Central kitchens
- Supermarket back kitchens
- Frozen and fresh food storage
- Professional food service operations
FAQ
1. What are the temperature ranges of the two compartments?
The refrigerator compartment operates between 0~+5°C, while the freezer compartment maintains temperatures from -22~-18°C.
2. What refrigerant does the unit use?
The YTA-120FR D/T uses environmentally friendly R290 refrigerant, offering high cooling efficiency and low environmental impact.
3. Is the unit suitable for commercial kitchens with high ambient temperatures?
Yes. The unit is designed for ambient temperatures between 5°C and 43°C, making it suitable for demanding commercial kitchen environments.
4. Does the refrigerator freezer require external drainage?
No. The built-in electric defrost system includes condensate self-evaporation, eliminating the need for an external drain pipe in most installations.
5. What are the advantages of the forced-air refrigeration system?
The forced-air system provides:
- Faster cooling recovery
- Uniform temperature distribution
- Reduced temperature fluctuation
- Improved food preservation
6. Can the unit be customized?
Yes. Optional configurations include:
- SUS304 stainless steel
- Adjustable casters
- LED lighting
- Door lock
- RS485 ModBus communication port
7. Is the stainless steel worktop suitable for food preparation?
Yes. The durable stainless steel worktop provides additional preparation space and improves kitchen workflow efficiency.
