1500 Air-Cooled Commercial Worktop Freezer（-22~-18°C）
Highlights
- Single-temperature commercial freezer
- Temperature range: -22~-18°C
- High-efficiency forced air cooling system
- Smart airflow circulation for uniform temperature distribution
- Environmentally friendly R290 refrigerant (GWP=3)
- Stable freezing performance with minimal temperature fluctuation
- SUS201 stainless steel interior and exterior construction
- Electric auto defrost with condensate self-evaporation
- Front-access removable filter for easy maintenance
The YTA-150R FZ Air-Cooled Worktop Freezer is a professional-grade commercial freezer designed for restaurants, hotel kitchens, bakeries, catering operations, and food preparation environments that require reliable frozen storage and durable workspace integration.
Featuring a powerful forced-air refrigeration system and intelligent airflow circulation technology, the unit maintains a stable freezing temperature range of -22~-18°C, ensuring optimal preservation of frozen food products even during intensive kitchen operations.
Built with high-quality SUS201 stainless steel inside and out, the freezer offers excellent durability, hygiene, and corrosion resistance for demanding commercial applications. The environmentally friendly R290 refrigerant delivers efficient cooling performance while reducing environmental impact.
With a compact undercounter design and integrated stainless steel worktop, the YTA-150R FZ combines food storage and preparation efficiency in one space-saving commercial refrigeration solution.
Highlights
- Single-temperature commercial freezer
- Temperature range: -22~-18°C
- High-efficiency forced air cooling system
- Smart airflow circulation for uniform temperature distribution
- Environmentally friendly R290 refrigerant (GWP=3)
- Stable freezing performance with minimal temperature fluctuation
- SUS201 stainless steel interior and exterior construction
- Electric auto defrost with condensate self-evaporation
- Front-access removable filter for easy maintenance
- Rounded interior corners for improved hygiene
- Foamed-in-place heavy-duty structure for durability
- Electrophoresis-coated anti-corrosion evaporator
- Optional LED lighting and door lock
- Optional adjustable casters or feet
- Optional SUS304 stainless steel upgrade
- Optional RS485 ModBus communication interface
- Suitable for commercial kitchens with ambient temperatures up to 43°C
Technical Specifications
| Item | Specification |
|---|---|
| Model | YTA-150R FZ |
| Product Type | Air-Cooled Worktop Freezer |
| Temperature Range | -22~-18°C |
| Cooling Unit | Self-contained |
| Refrigeration Capacity | 350W |
| Refrigerant | R290 (GWP=3) |
| Refrigerant Charge | 60g |
| Refrigeration System | Forced Air Circulation |
| Defrost System | Electric Defrost, Microprocessor-Controlled |
| Insulation Material | Cyclopentane |
| Insulation Thickness | 60 mm |
| Exterior Material | SUS201 Stainless Steel + Galvanized Back/Bottom |
| Interior Material | SUS201 Stainless Steel |
| Shelves | 2 pcs Plastic-Coated Food-Grade Shelves |
| Feet Height | H100~120 mm |
| Optional Casters | H128 mm Adjustable Casters |
| Voltage | 220-240V AC / 50-60Hz |
| Rated Power | 220W |
| Rated Current | 1.03A |
| Climate Class | 4 |
| Operating Ambient Temperature | 5~43°C |
| Test Standard | ISO 22041 |

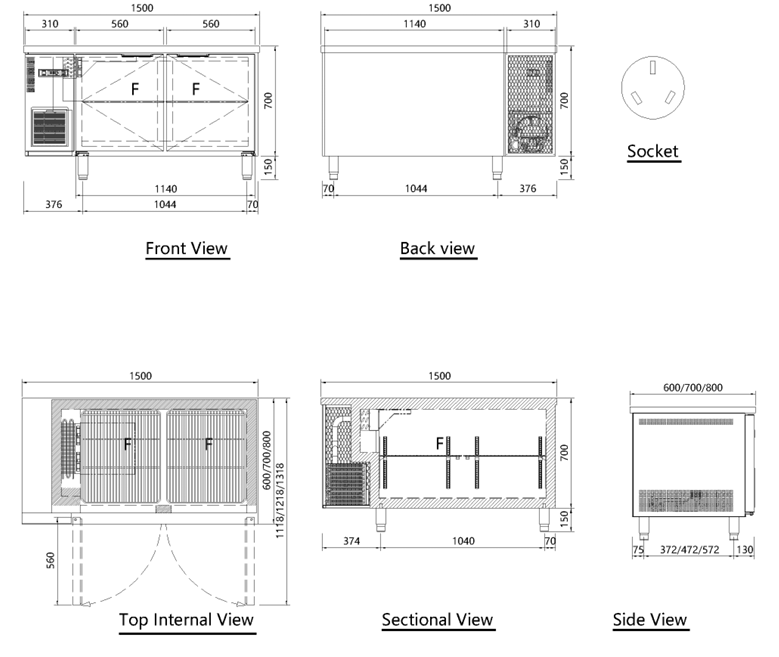

Dimensions & Capacity
| Configuration | 600D | 700D | 800D |
|---|---|---|---|
| Net Capacity | 271L | 332L | 393L |
| Gross Capacity | 284L | 344L | 405L |
| External Dimensions (W×D×H) | 1500×600×800 mm | 1500×700×800 mm | 1500×800×800 mm |
| Internal Dimensions (W×D×H) | 1180×412×570 mm | 1180×512×570 mm | 1180×612×570 mm |
| Door Swing Space | 1500×1118×800 mm | 1500×1218×800 mm | 1500×1318×800 mm |
| Package Dimensions | 1530×630×860 mm | 1530×730×860 mm | 1530×830×860 mm |
| Net Weight | 64 kg | 67 kg | 70 kg |
| Gross Weight | 74 kg | 78 kg | 83 kg |
Applications
The YTA-150R FZ commercial worktop freezer is suitable for:
- Restaurants
- Hotel kitchens
- Bakeries
- Cafés and coffee shops
- Catering services
- Fast food chains
- Commercial food preparation areas
- Central kitchens
- Supermarket back kitchens
- Frozen food storage applications
- Professional food service operations
FAQ
1. What temperature range does the freezer maintain?
The YTA-150R FZ maintains a stable freezing temperature between -22°C and -18°C, suitable for commercial frozen food storage.
2. What refrigerant does the freezer use?
The unit uses environmentally friendly R290 refrigerant, which provides excellent cooling efficiency with very low environmental impact.
3. Is the freezer suitable for high-temperature kitchen environments?
Yes. The freezer is designed to operate in ambient temperatures ranging from 5°C to 43°C, making it ideal for busy commercial kitchens.
4. Does the unit require external drainage?
No. The electric defrost system includes condensate self-evaporation, reducing installation complexity and eliminating the need for a drain pipe in most environments.
5. What are the advantages of forced-air cooling?
The forced-air refrigeration system offers:
- Faster cooling recovery
- Even air distribution
- Reduced frost accumulation
- Stable internal temperature
- Improved food preservation
6. Can the freezer be customized?
Yes. Optional features include:
- SUS304 stainless steel construction
- Adjustable casters
- LED lighting
- Door lock
- RS485 ModBus communication port
7. Is the worktop suitable for food preparation?
Yes. The stainless steel worktop provides additional food preparation space while maximizing kitchen efficiency.
