1800 Air-Cooled Worktop Refrigerator
Highlights：
- Stable Refrigeration Performance
Maintains precise 0~5°C temperature with minimal fluctuation - Energy-Efficient Operation
Inverter compressor + R290 refrigerant (GWP=3) reduces power consumption - Advanced Airflow System
Controlled duct circulation ensures uniform cooling throughout the cabinet - Premium Insulation Technology
Cyclopentane + VIP panel improves thermal efficiency - Smart & Easy Maintenance Design
Auto defrost, RS485 remote monitoring, and front-access filter
The Realmann YTA-180R3-E Air-Cooled Worktop Refrigerator is designed for commercial kitchens that require stable refrigeration, energy efficiency, and compact workspace integration.
With a single temperature zone (0~5°C), this unit ensures optimal storage conditions for fresh ingredients. Powered by an inverter compressor and R290 refrigerant, it delivers consistent cooling performance with reduced energy consumption.
The integration of VIP insulation and forced air circulation guarantees uniform temperature distribution while minimizing thermal loss, making it ideal for high-demand professional environments such as restaurants, bakeries, and food processing facilities.
Highlights
- Stable Refrigeration Performance
Maintains precise 0~5°C temperature with minimal fluctuation - Energy-Efficient Operation
Inverter compressor + R290 refrigerant (GWP=3) reduces power consumption - Advanced Airflow System
Controlled duct circulation ensures uniform cooling throughout the cabinet - Premium Insulation Technology
Cyclopentane + VIP panel improves thermal efficiency - Smart & Easy Maintenance Design
Auto defrost, RS485 remote monitoring, and front-access filter
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | YTA-180R3-E |
| Type | Air-Cooled Worktop Refrigerator | |
| Temperature Range | 0~5°C | |
| Cooling System | Forced Air Circulation | |
| Refrigerant | R290 (GWP=3) | |
| Refrigerant Charge | 45g | |
| Refrigeration Capacity | 700W | |
| Energy Class | Class B | |
| Energy Index | 18 / 18 / 17 | |
| Structure & Materials | Exterior Material | Stainless Steel SUS304 + Galvanized Sheet |
| Interior Material | Stainless Steel AISI 304 | |
| Insulation | Cyclopentane + VIP (60 mm) | |
| Evaporator | Electrophoresis-coated (Anti-corrosion) | |
| Shelves | 3 pcs, Food-grade coated | |
| Feet | H100~120 mm adjustable / Optional casters H128 mm | |

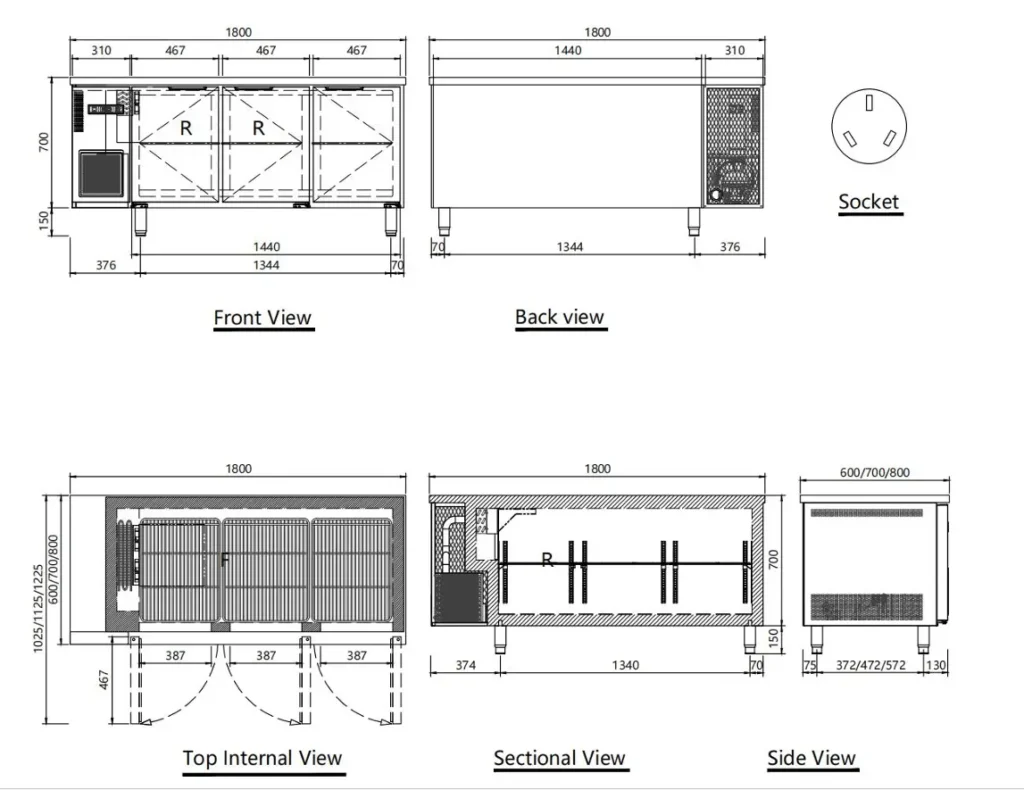

| Dimensions & Capacity | External Dimensions (W×D×H) | 1800 × 600/700/800 × 800 mm |
| Internal Dimensions (W×D×H) | 1480 × 412/512/612 × 570 mm | |
| Door Swing Space | 1800 × 1025/1125/1225 × 800 mm | |
| Package Dimensions | 1830 × 630/730/830 × 860 mm | |
| Net Capacity | 346 / 442 / 502 L | |
| Gross Capacity | 364 / 462 / 520 L | |
| Weight (Net) | 70 / 75 / 80 kg | |
| Weight (Gross) | 82 / 89 / 98 kg | |
| Electrical | Power Supply | 220–240V AC / 50–60 Hz |
| Rated Power | 120W | |
| Rated Current | 1.28A | |
| Energy Consumption (24h) | 1.39 / 1.40 / 1.40 kWh | |
| Annual Energy Consumption | 507 / 511 / 511 kWh | |
| System & Functions | Compressor | Inverter Compressor |
| Airflow System | Controlled duct circulation | |
| Fans | EC Evaporator Fan + EC Condenser Fan | |
| Defrost System | Electric Defrost (Microprocessor-controlled) | |
| Auto Defrost | Yes + Condensate Self-evaporation | |
| Remote Monitoring | RS485 Interface (ModBus Protocol) | |
| Maintenance | Front-access removable filter | |
| Operating Conditions | Climate Class | Class 4 |
| Ambient Temperature | 5~43°C | |
| Test Standard | ISO 22041 | |
| Test Conditions | 32°C / 65% RH | |
| Evaporation Temp. | -30°C | |
| Condensation Temp. | +54°C | |
| Optional Features | Lighting | LED Lighting |
| Door Lock | Optional | |
| Mobility | Casters / Adjustable Feet |
Applications
This refrigerator is widely used in:
- Restaurants & Commercial Kitchens
Fresh ingredient storage with stable temperature control - Hotels & Catering Operations
Efficient under-counter refrigeration for food prep areas - Bakeries & Cafés
Ideal for dairy, fruits, and ready-to-use ingredients - Supermarkets & Convenience Stores
Back-end cold storage with energy-saving performance - Food Processing Facilities
Maintains hygiene and temperature consistency during preparation
FAQ (Frequently Asked Questions)
1. What makes this refrigerator energy-efficient?
The combination of an inverter compressor, EC fans, and R290 refrigerant significantly reduces energy consumption while maintaining stable cooling.
2. Is the temperature evenly distributed inside the cabinet?
Yes. The forced air circulation system with controlled airflow ducts ensures uniform temperature throughout the storage area.
3. Does this unit require manual defrosting?
No. It features automatic electric defrost with condensate self-evaporation, eliminating manual maintenance.
4. Can this refrigerator be integrated into smart systems?
Yes. It supports RS485 communication with ModBus protocol, allowing remote monitoring and integration.
5. Is it suitable for high ambient temperatures?
Yes. Designed for Climate Class 4, it operates reliably in environments up to 43°C.
