700mm Depth Series Stainless Steel Upright Cabinets
Features
- 60 mm insulation: A thick insulating layer helps reduce heat transfer into the cabinet.
- Self-closing door: Closes automatically when opened to less than 90°, helping prevent it from being left ajar.
- Tool-free gasket removal: The magnetic door seal detaches easily for cleaning and replacement.
- Lockable storage: A supplied lock and key allow staff to control access.
- GN 2/1-compatible shelving: Accommodates standard foodservice storage arrangements.
The GN-580 Series offers professional chilled and frozen storage in a European-style stainless steel cabinet. Designed for commercial kitchens, its upright format provides 580 litres of effective capacity within a 740 × 730 mm footprint.
AISI 304 stainless steel inside and out provides a durable surface for daily use, while rounded internal corners make cleaning easier. The solid-door design suits back-of-house ingredient storage, with built-in lighting for clear visibility when accessing stock.
Choose the GN-580TN for refrigeration or the GN-580BT for frozen storage. Both models combine fan-assisted cooling with digital temperature control to support organised food storage throughout a busy service.
Key Features
- 60 mm insulation: A thick insulating layer helps reduce heat transfer into the cabinet.
- Self-closing door: Closes automatically when opened to less than 90°, helping prevent it from being left ajar.
- Tool-free gasket removal: The magnetic door seal detaches easily for cleaning and replacement.
- Lockable storage: A supplied lock and key allow staff to control access.
- GN 2/1-compatible shelving: Accommodates standard foodservice storage arrangements.
- Automatic defrost: Reduces routine manual defrosting tasks.
- EBM fan: Supports air circulation within the storage compartment.
- Replaceable heated crossbar: The brochure specifies a crossbar with an integrated heating element; confirm its arrangement on the selected model.
- Optional base configuration: Adjustable feet or castors are available to suit the installation.
Technical Specifications
| Specification | GN-580TN | GN-580BT |
|---|---|---|
| Cabinet type | Upright chiller | Upright freezer |
| External dimensions, W × D × H | 740 × 730 × 2010 mm | 740 × 730 × 2010 mm |
| Effective capacity | 580 L | 580 L |
| Temperature range | −2°C to +10°C | −22°C to −18°C |
| Cooling method | Fan-assisted | Fan-assisted |
| Interior and exterior | AISI 304 stainless steel | AISI 304 stainless steel |
| Insulation thickness | 60 mm | 60 mm |
| Shelf quantity | 3 | 3 |
| Shelf compatibility | GN 2/1 | GN 2/1 |
| Lighting | LED | LED |
| Compressor, as tabulated | Secop | Secop |
| Temperature controller, as tabulated | Dixell | Dixell |
| Refrigerant options | R134a / R290 | R404a / R290 |
| Defrost system | Automatic | Automatic |
| Door lock | Lock and key | Lock and key |
| Optional supports | Adjustable feet or castors | Adjustable feet or castors |
| Loading quantity per 40-foot container | 45 units | 45 units |
The specification table lists Secop compressors and Dixell controllers. The general brochure also mentions Danfoss/Embraco compressors and Carel/Eliwell controllers. Confirm the supplied components and refrigerant when ordering; slash-separated refrigerants indicate alternatives.
Application Scenarios
Restaurant preparation areas
Keep ingredients close to workstations without dedicating a wide floor area to refrigerated storage.
Café and bakery kitchens
Organise dairy ingredients, fillings or frozen bakery stock in the appropriate temperature model.
Hotel satellite kitchens
Provide dedicated storage for individual service areas, reducing trips to a central cold room.
Catering facilities and canteens
Arrange supplies around GN-compatible kitchen workflows, with separate cabinets for chilled and frozen stock.
Frequently Asked Questions
Is the cabinet 700 mm or 730 mm deep?
“700 mm Depth” is the brochure’s series designation. The listed external depth is 730 mm, which should be used for space planning. Required ventilation and service clearances must also be confirmed.
Is this a glass-door display refrigerator?

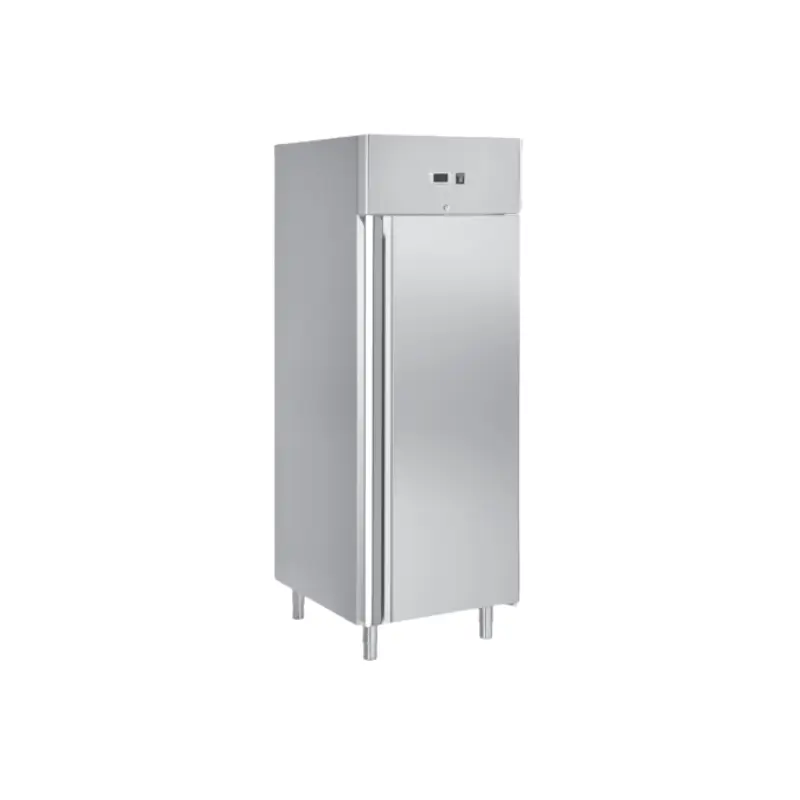

The brochure image shows a solid stainless steel door. This configuration is intended for enclosed storage rather than customer-facing product display.
Can one cabinet switch between refrigerator and freezer operation?
The documentation lists separate chiller and freezer models. It does not specify a convertible operating mode, so select the model that matches your products’ storage requirements.
Does GN 2/1 compatibility mean food pans are included?
No pans are listed among the supplied items. The specification confirms three shelves and GN 2/1 compatibility; confirm any required containers or accessories separately.
What electrical supply does it require?
Voltage, frequency and rated power are not provided in the supplied materials. Request these details for the intended installation market before ordering.
What should I confirm for a commercial purchase?
Confirm the exact model, refrigerant, electrical specification, shelf load rating and installation clearances. If certification documentation is required, request documents applicable to the supplied unit.
