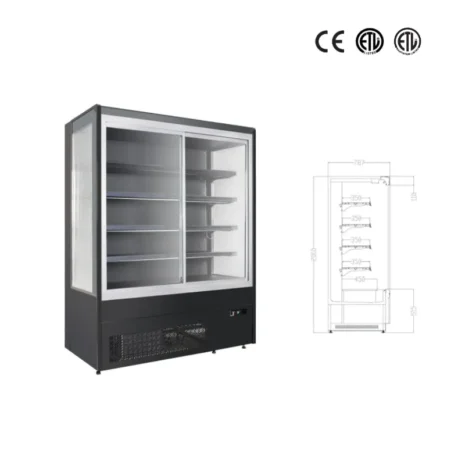

620–780L 787mm Sliding Glass Door Display Refrigerator

The 787mm Series Double-Layer Alloy Sliding Glass Door Display Refrigerator is designed for commercial retailers that need increased refrigerated storage capacity without sacrificing product visibility or convenient customer access.

With a cabinet depth of 787 mm, this series provides a deeper refrigerated interior than standard 660 mm models, offering effective capacities of 620L and 780L. It is particularly suitable for supermarkets, convenience stores, beverage retailers and grocery stores that need to display larger quantities of chilled products within a compact upright footprint.

The cabinet features double-layer alloy-framed sliding glass doors, allowing customers to access products without requiring outward door clearance. This makes the refrigerator practical for narrow aisles and busy merchandising zones.

A forced-air refrigeration system, dual Embraco or Secop compressors, electronic temperature control and copper-aluminum fin evaporator work together to maintain a stable operating range of -1°C to +7°C.

Integrated LED lighting and adjustable shelves further improve product presentation and allow flexible merchandising of beverages, packaged food, dairy products and other chilled goods.

Features

787mm Deep Cabinet Design

The increased 787 mm cabinet depth provides more usable refrigerated space, making the series suitable for retailers requiring higher product loading capacity.

Compared with shallower display cabinets, the deeper interior can accommodate larger quantities of merchandise while maintaining an upright footprint.

Double-Layer Alloy Sliding Glass Doors

The sliding glass door structure eliminates the need for outward-opening clearance.

This makes the refrigerator particularly suitable for:

• Narrow supermarket aisles
• High-traffic convenience stores
• Beverage merchandising areas
• Behind-counter applications

The alloy structure also provides reinforcement around the double-layer glass panels.

Dual Compressor Refrigeration

Both models are equipped with two Embraco or Secop compressors, supporting strong refrigeration performance and rapid temperature recovery.

This configuration is designed for demanding commercial applications where the refrigerator may experience frequent door opening.

Forced-Air Cooling

The internal fan system circulates cold air throughout the cabinet, helping reduce temperature differences between upper and lower shelves.

This supports more consistent refrigeration across a fully loaded display cabinet.

Electronic Temperature Control

An intelligent electronic controller provides convenient temperature adjustment and monitoring.

The cabinet maintains a standard operating range of -1°C to +7°C.

Frost-Free Refrigeration

The fan-assisted cooling system reduces frost accumulation and eliminates the need for frequent manual defrosting under normal operating conditions.

Trapezoidal Airflow Structure

An optimized trapezoidal air curtain design helps guide cold air through the cabinet, improving internal circulation and refrigeration efficiency.

Copper-Aluminum Fin Evaporator

The finned evaporator provides efficient heat exchange to support stable refrigeration performance during extended commercial operation.

Magnetic LED Lighting

Built-in LED lighting clearly illuminates displayed products.

The magnetic installation structure also makes lighting components easier to access during servicing.

Adjustable Shelves

Shelf positions can be changed according to product dimensions, allowing different merchandising layouts for bottles, cans, food packages and dairy products.

Magnetic Front Panel

The removable magnetic front cover provides convenient maintenance access and helps simplify routine drainage and cleaning.

Technical Specifications

Specifications may be adjusted according to final production configuration, destination market and customer requirements.

Available Models

BLF-1380GD – 620L

The BLF-1380GD combines a 1310 mm cabinet width with a deeper 787 mm interior, providing 620L effective capacity.

It is suitable for medium-sized supermarkets, convenience stores and beverage sections where additional storage depth is required without significantly increasing cabinet frontage.

BLF-1580GD – 780L

The BLF-1580GD provides 780L effective capacity and a larger 2.15 m² product display area.

Its increased internal volume makes it suitable for stores with higher product turnover or larger beverage and chilled-food inventories.

Application

Supermarkets

The deeper cabinet provides additional refrigerated storage for high-volume supermarket merchandising.

It can be used for beverages, dairy products, ready-to-eat food and packaged chilled merchandise.

Convenience Stores

Sliding doors reduce interference with customers moving through narrow aisles, while the deeper cabinet increases stock capacity.

This combination is suitable for convenience-store beverage walls and chilled food sections.

Beverage Retail Areas

The refrigerator can be used to display:

• Bottled water
• Carbonated drinks
• Juice
• Energy drinks
• Chilled coffee
• Milk drinks
• Tea beverages
• Canned products

Grocery Stores

Adjustable shelves allow retailers to combine multiple chilled product categories within one cabinet.

The transparent sliding doors keep merchandise visible while helping isolate the refrigerated interior from the surrounding environment.

High-Traffic Retail Locations

Dual compressors and fan cooling make the series suitable for commercial environments where doors may be opened frequently throughout the day.

Foodservice and Café Areas

The sliding-door design is useful in service areas where available working space is limited and conventional hinged doors could interfere with employee movement.

More Capacity in a Deeper Commercial Cabinet

One of the main differences between this range and conventional upright display refrigerators is its 787 mm cabinet depth.

For retailers, deeper cabinets can increase product loading capacity without requiring a proportionally wider installation area.

The BLF-1380GD provides 620L of effective capacity, while the larger BLF-1580GD increases this to 780L.

This makes the series particularly useful for stores that need to reduce the frequency of product replenishment while maintaining a clear customer-facing display.

Sliding Doors for Efficient Retail Space

Store aisle width is an important consideration when selecting commercial refrigeration equipment.

Traditional hinged doors require clearance in front of the refrigerator. In contrast, the sliding doors on this series move horizontally along the cabinet.

This configuration helps:

• Reduce obstruction in narrow aisles
• Improve customer movement around the cabinet
• Make product access easier in compact stores
• Reduce interference with shopping carts
• Support behind-counter installations

For space-conscious retail environments, this can provide an important operational advantage.

FAQ

1. What makes the 787mm series different from a standard display refrigerator?

The main difference is the 787 mm cabinet depth, which provides increased refrigerated storage capacity. The series offers effective capacities of 620L and 780L.

2. What type of doors does this refrigerator use?

It uses double-layer alloy-framed sliding glass doors.

The sliding design reduces the amount of clearance required in front of the refrigerator.

3. What is the operating temperature range?

The standard temperature range is -1°C to +7°C.

4. Does the refrigerator use fan cooling?

Yes. Both models use a forced-air fan cooling system to circulate refrigerated air throughout the cabinet.

5. How many compressors are installed?

Both BLF-1380GD and BLF-1580GD are configured with two Embraco or Secop compressors.

6. Why use dual compressors?

A dual-compressor configuration supports strong refrigeration capacity and temperature recovery in demanding commercial environments.

7. Does the cabinet require manual defrosting?

The refrigerator uses a frost-free fan cooling system designed to reduce frost buildup and minimize routine manual defrosting.

8. Which model has the larger capacity?

The BLF-1580GD provides the larger effective volume at 780L, compared with 620L for the BLF-1380GD.

9. Are the shelves adjustable?

Yes. Shelf heights can be adjusted according to different bottle sizes, packaging formats and merchandising requirements.

10. Is this series suitable for beverage merchandising?

Yes. The cabinet is suitable for bottled drinks, cans, dairy beverages, juice, chilled coffee and other products compatible with the operating temperature range.

11. What refrigerants are available?

Available configurations include R404a and R290.

Final refrigerant selection should be confirmed based on destination-market requirements and local regulations.

12. What compressor brands are available?

The listed compressor configurations are Embraco and Secop.

13. Is the cabinet suitable for narrow aisles?

Yes. Sliding doors do not project outward when opened, making this design particularly useful in narrow or high-traffic retail aisles.

14. Does it have internal lighting?

Yes. Both models include LED interior lighting to improve merchandise visibility.

15. What businesses typically use this refrigerator?

Typical applications include supermarkets, convenience stores, grocery stores, beverage outlets, cafés, foodservice areas and commercial retail chains.
