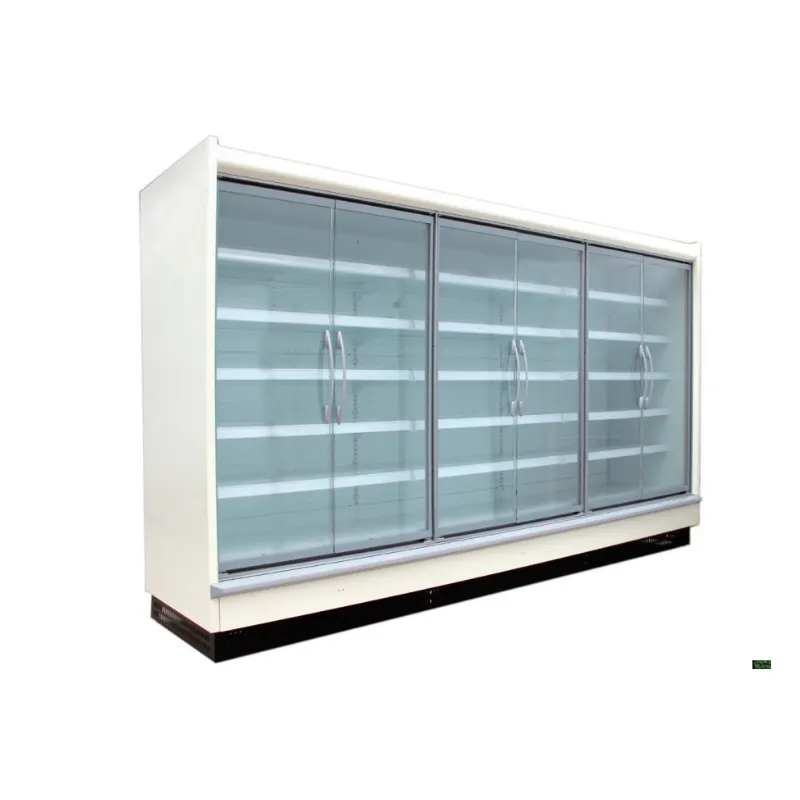

918mm Deep Remote Glass Door Display Refrigerator

The 918mm Series Remote Glass Door Display Refrigerator is designed for supermarkets, hypermarkets, grocery stores and other high-volume retail environments that require large refrigerated storage capacity with enclosed product merchandising.

With a deep 918 mm cabinet, this series provides effective capacities from approximately 1600L to 3490L and display areas from 2.10 m² to 4.76 m². The enclosed glass-door structure helps reduce direct cold-air exchange with the sales environment while keeping chilled products clearly visible.

The cabinet uses a ventilated refrigeration system with EBM fans, an enlarged copper-aluminum fin evaporator and CAREL electronic temperature control. It is designed for remote refrigeration installations and can support commercial projects requiring centralized refrigeration systems.

Three cabinet widths are available, and each size is offered in both standard and taller H versions, allowing retailers to increase vertical merchandising space without increasing floor width.

Integrated LED lighting and adjustable internal shelves provide flexible display options for beverages, dairy products, packaged foods and other chilled retail products.

Features

Deep 918mm Cabinet

The 918 mm depth provides substantially more refrigerated storage space than standard-depth upright cabinets.

This makes the series suitable for supermarkets and high-volume retail locations where larger product loading capacity is required.

Enclosed Glass Door Merchandising

Unlike open multideck refrigerators, this series uses glass doors to create an enclosed refrigerated display area.

The door structure helps reduce direct exchange between cabinet air and ambient store air while maintaining clear product visibility.

Standard and High Versions

Each cabinet width is available in two heights:

Standard models: 2030 mm
H models: 2180 mm

The taller versions provide greater display area and effective internal capacity without increasing cabinet width or depth.

Ventilated Cooling

The cabinet uses forced-air or ventilated refrigeration to distribute cold air across multiple shelf levels.

This supports more consistent temperatures throughout a large commercial display cabinet.

Enlarged Copper-Aluminum Fin Evaporator

The enlarged finned evaporator increases heat-exchange area and supports refrigeration performance in the deep cabinet.

Trapezoidal Airflow Design

Optimized internal airflow helps circulate refrigerated air efficiently through the cabinet.

EBM Fan System

EBM fans provide reliable air circulation across the wide and deep merchandising area.

CAREL Temperature Controller

CAREL control components provide accurate and convenient commercial refrigeration management.

R404A / R744 Refrigeration Options

The product information indicates compatibility with R404A / R744 refrigerant configurations.

The current technical table lists R404A, so final R744 availability should be confirmed according to project specifications.

Adjustable Display Shelves

Shelf positions can be changed to accommodate different product sizes, allowing retailers to optimize vertical merchandising space.

LED Lighting

Built-in LED lighting improves product visibility and presentation.

Optional shelf lighting can also be added where required.

Solenoid Valve and Filtration

A standard solenoid valve and additional filtration help protect the refrigeration system and can reduce maintenance frequency.

Top-Pipe Installation

The upper piping design simplifies refrigeration connections during installation and supports cleaner project layouts.

Clip-Type Fan Base

The detachable fan base makes routine fan inspection and maintenance easier.

Adjustable Feet

Adjustable foot bolts allow accurate cabinet leveling on commercial floors.

Technical Specifications

*The source table lists effective volume as 1.6 / 1.74 / 2.14 / 2.33 / 3.21 / 3.49 under an “L” heading. These figures are clearly more consistent with m³, equivalent to approximately 1600–3490L.

**The supplied specification does not show the unit for cooling capacity. Confirm whether these values are in watts before publishing.

Model Options

CLF-2092G – 1600L

The CLF-2092G provides approximately 1600L capacity with a cabinet width of 1935 mm.

It is suitable for medium-sized supermarket beverage and chilled-food sections.

CLF-2092HG – 1740L

The taller CLF-2092HG increases cabinet height to 2180 mm and capacity to approximately 1740L.

This provides additional vertical merchandising space without requiring a larger floor footprint.

CLF-2592G – 2140L

With a 2560 mm cabinet width and approximately 2140L capacity, the CLF-2592G is suitable for larger chilled-product sections.

CLF-2592HG – 2330L

The high version increases effective volume to approximately 2330L and provides a larger 3.18 m² display area.

CLF-3892G – 3210L

The CLF-3892G provides approximately 3210L capacity and a 4.20 m² display area for high-volume supermarket use.

CLF-3892HG – 3490L

The CLF-3892HG is the largest model in the range, offering approximately 3490L capacity and 4.76 m² display area.

Application

Supermarkets

The large internal capacity makes this series suitable for beverage, dairy and chilled-food aisles with high daily turnover.

Hypermarkets

The wider 3810 mm models provide extensive merchandising capacity for large-format food retail stores.

Beverage Display

Suitable applications include:

• Bottled water
• Soft drinks
• Juice
• Energy drinks
• Chilled coffee
• Tea beverages
• Dairy drinks

Dairy Sections

Adjustable shelves can be configured for milk, yogurt, cheese products, desserts and other compatible chilled products.

Packaged Food

The cabinet can display sandwiches, salads, ready meals and other packaged chilled foods.

Grocery Stores

The glass-door design provides enclosed refrigeration while allowing customers to view merchandise clearly.

Retail Chain Projects

Multiple cabinet widths and two height options allow the same product family to be used across different store formats.

Central Refrigeration Systems

The remote configuration is suitable for stores using centralized refrigeration infrastructure and multiple connected display cabinets.

Why Choose a Deep Glass Door Display Refrigerator?

A deep glass door refrigerator provides a different merchandising balance from an open-front multideck.

The 918 mm cabinet depth increases product loading capacity, while glass doors create an enclosed refrigerated environment.

This configuration is particularly useful when retailers want to combine:

• Large refrigerated capacity
• Clear product visibility
• Reduced cold-air exchange
• Organized merchandising
• High-volume stock loading
• Centralized refrigeration

For high-turnover supermarket sections, this can reduce the frequency of shelf replenishment while maintaining strong product presentation.

Standard vs. H Models

The H series increases vertical capacity while keeping the same cabinet footprint.

For example:

CLF-2092G: 1600L / 2.10 m²
CLF-2092HG: 1740L / 2.38 m²

CLF-2592G: 2140L / 2.80 m²
CLF-2592HG: 2330L / 3.18 m²

CLF-3892G: 3210L / 4.20 m²
CLF-3892HG: 3490L / 4.76 m²

The taller versions are particularly useful where floor space is limited but additional vertical merchandising capacity is available.

FAQ

1. What is a remote glass door display refrigerator?

It is a refrigerated merchandising cabinet with glass doors that connects to a refrigeration system located separately from the display cabinet.

2. What is the main advantage of the 918mm cabinet depth?

The deeper cabinet provides greater refrigerated storage and merchandise loading capacity compared with standard-depth display refrigerators.

3. What capacities are available?

Approximate effective capacities range from 1600L to 3490L.

4. What is the difference between G and HG models?

The HG models are taller.

G models are 2030 mm high, while HG models are 2180 mm high and provide more display area and storage capacity.

5. What does 3M1 mean?

3M1 is a commercial refrigeration climate/product temperature classification used for refrigerated display cabinets. The exact test and operating conditions should be specified according to the applicable product standard and certification documentation.

6. Does this series use fan cooling?

Yes. All models use a ventilated forced-air refrigeration system.

7. What fan brand is used?

The supplied specification lists EBM fans.

8. What temperature controller is used?

The cabinets use CAREL controllers according to the supplied specification.

9. What refrigerant is used?

The technical table lists R404A. Product information also mentions R744 as an option, which should be confirmed for the final system design.

10. Does the cabinet include LED lighting?

Yes. LED lighting is included for improved product visibility.

11. Are the shelves adjustable?

Yes. Shelf positions can be adjusted according to different merchandise heights and package dimensions.

12. Is this series suitable for beverages?

Yes. Its large capacity and glass-door merchandising structure make it suitable for bottled and canned beverages.

13. Can it be used for dairy products?

Yes, provided the product’s required storage conditions match the cabinet’s certified operating range.

14. Is this a self-contained refrigerator?

No. This is a remote refrigeration cabinet designed for connection to compatible external refrigeration equipment.

15. Which model has the largest display capacity?

The CLF-3892HG is the largest model, offering approximately 3490L effective volume and a 4.76 m² display area.
