Air-Cooled Vertical Two-Door Freezer 470L (-22°C to -18°C)
Highlights
- Precise freezer temperature control (-22°C ~ -18°C)
- Large 470L usable storage capacity
- Smart forced-air cooling for even temperature distribution
- Eco-friendly R290 refrigerant (GWP=3)
- Automatic electric defrost with microprocessor control
- High-efficiency 60mm Cyclopentane insulation
- Food-grade SUS201 stainless steel interior
- Front-access removable filter for easy maintenance
- Anti-corrosion evaporator coating extends service life
- Optional AISI304 stainless steel upgrade
- Optional RS485 ModBus communication interface
- Optional casters, adjustable feet, LED lighting, and door lock
Product Description
The Realmann YHA-2F Air-Cooled Vertical Two-Door Freezer is a high-performance commercial freezer designed for restaurants, hotels, bakeries, supermarkets, food processing facilities, and professional kitchens requiring stable low-temperature storage. Featuring a precise temperature range of -22°C to -18°C, this freezer ensures reliable preservation of frozen food, ingredients, meat, seafood, and temperature-sensitive products.
Equipped with a smart forced-air circulation system, environmentally friendly R290 refrigerant, and intelligent temperature control technology, the YHA-2F delivers uniform cooling distribution and minimal temperature fluctuation. Its durable food-grade stainless steel construction and automatic defrost system reduce maintenance while improving operational efficiency.
Highlights
- Precise freezer temperature control (-22°C ~ -18°C)
- Large 470L usable storage capacity
- Smart forced-air cooling for even temperature distribution
- Eco-friendly R290 refrigerant (GWP=3)
- Automatic electric defrost with microprocessor control
- High-efficiency 60mm Cyclopentane insulation
- Food-grade SUS201 stainless steel interior
- Front-access removable filter for easy maintenance
- Anti-corrosion evaporator coating extends service life
- Optional AISI304 stainless steel upgrade
- Optional RS485 ModBus communication interface
- Optional casters, adjustable feet, LED lighting, and door lock
Technical Specifications
| Item | Specification |
|---|---|
| Model | YHA-2F |
| Product Type | Vertical Commercial Freezer |
| Temperature Range | -22°C ~ -18°C |
| Capacity | 470L Net / 520L Gross |
| Usable Capacity | 470L Freezer |
| Cooling System | Forced Air Circulation |
| Refrigeration Capacity | 500W |
| Refrigerant | R290 |
| Refrigerant Charge | 70g |
| Cooling Unit | Self-contained |
| Defrost System | Electric Defrost, Microprocessor Controlled |
| Insulation Thickness | 60mm Cyclopentane |
| Exterior Material | SUS201 Stainless Steel + Galvanized Back & Bottom |
| Interior Material | SUS201 Stainless Steel |
| Shelves | 3 pcs Plastic-coated Food-grade Shelves |
| Shelf Size | 550 × 580 mm |
| Rated Power | 190W |
| Rated Current | 2A |
| Power Supply | 220–240V AC / 50–60Hz |
| Net Weight | 80kg |
| Gross Weight | 91kg |

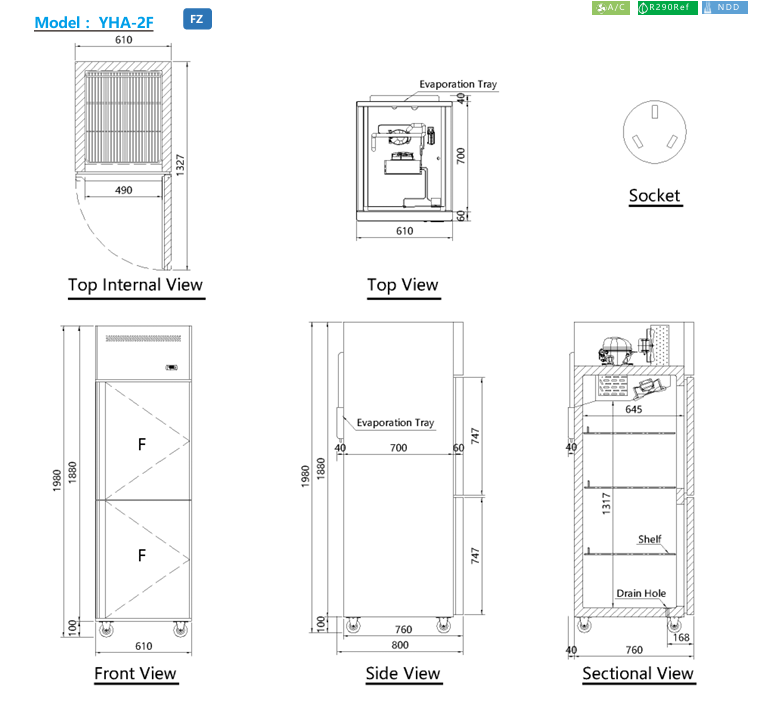

| External Dimensions | 610 × 800 × 1980 mm |
| Internal Dimensions | 490 × 660 × 1420 mm |
| Package Dimensions | 640 × 830 × 2040 mm |
| Operating Ambient Temperature | 5°C ~ 43°C |
| Climate Class | 4 |
| Test Standard | ISO 22041 |
Applications
Restaurants & Commercial Kitchens
Store frozen meat, seafood, vegetables, prepared food, and bulk ingredients safely.
Hotels & Hospitality Projects
Suitable for hotel kitchens requiring stable frozen storage performance.
Supermarkets & Convenience Stores
Ideal for backroom frozen inventory and food storage applications.
Bakeries & Dessert Shops
Store frozen dough, cream products, ice cream ingredients, and prepared desserts.
Food Processing Facilities
Maintain stable frozen storage conditions for processed foods and raw materials.
FAQ
Q1: What temperature range does the YHA-2F operate within?
The YHA-2F maintains a stable freezer temperature between -22°C and -18°C, suitable for commercial frozen storage requirements.
Q2: What cooling technology does this freezer use?
The unit uses a forced-air circulation system, ensuring uniform cooling and reducing temperature differences inside the cabinet.
Q3: Does the freezer require manual defrosting?
No. The YHA-2F features an automatic electric defrost system controlled by a microprocessor.
Q4: Is the refrigerant environmentally friendly?
Yes. The freezer uses R290 refrigerant, which has a very low Global Warming Potential (GWP=3) and higher energy efficiency.
Q5: Can the material be upgraded?
Yes. AISI304 stainless steel is available as an optional upgrade for higher corrosion resistance requirements.
Q6: Does it support smart monitoring?
Yes. Optional RS485 communication with ModBus protocol is available for remote monitoring and smart kitchen integration.
