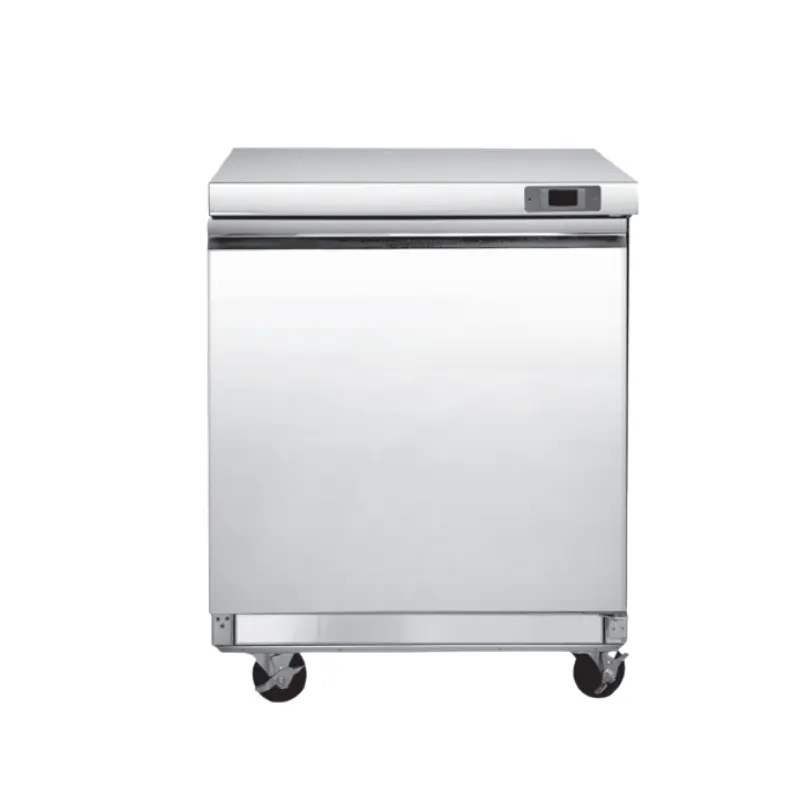

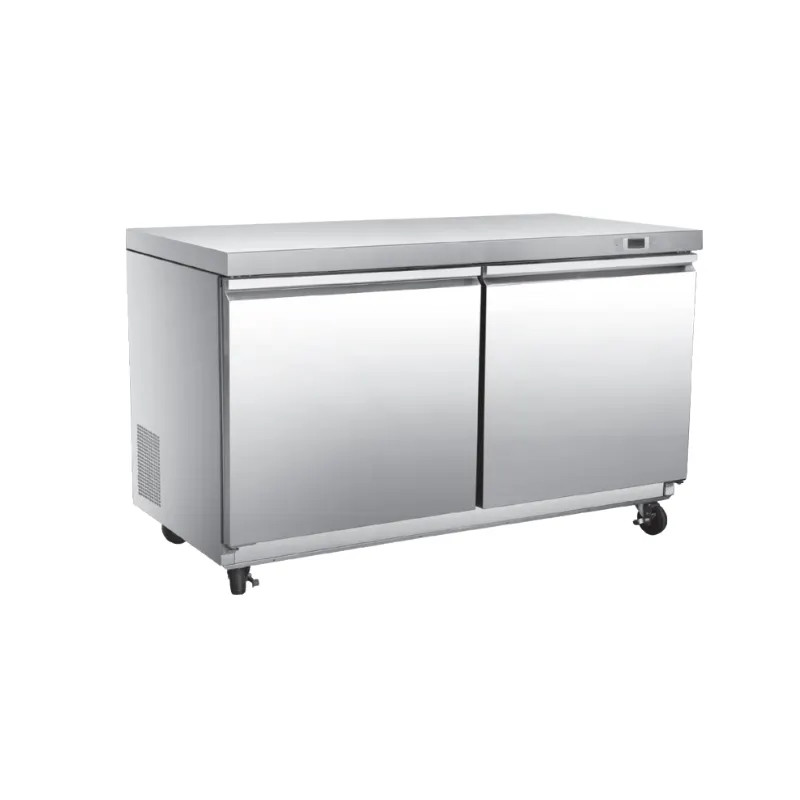

American-Style Refrigerated Counter Cabinet
Features
- American-style refrigerated counter design
- SS430 stainless steel exterior and pre-coated aluminum interior
- Ventilated cooling system
- Listed temperature range of 33°F to 41°F
- Embraco compressor and R290 refrigerant
- Digital Dixell thermostat
- Reversible doors that self-close when opened less than 90°
- Curved interior edges for easier cleaning
- Magnetic gasket helps keep cold air inside
Combine a practical work counter with refrigerated storage in this American-style commercial cabinet. Its SS430 stainless steel exterior and pre-coated aluminum interior are designed for foodservice environments. Four widths are available, from the compact TUC-29R to the larger TUC-72R, with capacities from 190 to 470 liters.
Ventilated cooling maintains a listed temperature range of 33°F to 41°F. The cabinet uses R290 refrigerant, an Embraco compressor and a digital Dixell thermostat. Optional configurations include fans, automatic defrost, a lock and key, removable interior components, adjustable stainless steel feet or lockable castors, and custom front panels.
Key Features
- American-style refrigerated counter design
- SS430 stainless steel exterior and pre-coated aluminum interior
- Ventilated cooling system
- Listed temperature range of 33°F to 41°F
- Embraco compressor and R290 refrigerant
- Digital Dixell thermostat
- Reversible doors that self-close when opened less than 90°
- Curved interior edges for easier cleaning
- Magnetic gasket helps keep cold air inside
- Optional tool-free removable components, fan, lock and key, and automatic defrost
- Optional adjustable stainless steel feet or lockable castors
- Custom front panel designs available on request
Specifications
| Specification | TUC-29R | TUC-48R | TUC-60R | TUC-72R |
|---|---|---|---|---|
| Product dimensions (W × D × H) | 735 × 799 × 966 mm | 1,230 × 799 × 966 mm | 1,555 × 799 × 966 mm | 1,827 × 799 × 966 mm |
| Packing dimensions (W × D × H) | 783 × 847 × 1,029 mm | 1,278 × 847 × 1,029 mm | 1,603 × 847 × 1,029 mm | 1,875 × 847 × 1,029 mm |
| Effective capacity | 190 L / 6.7 cu. ft. | 314 L / 11.1 cu. ft. | 399 L / 14.1 cu. ft. | 470 L / 16.6 cu. ft. |
| Cooling system | Ventilated | Ventilated | Ventilated | Ventilated |
| Temperature range | 33°F to 41°F | 33°F to 41°F | 33°F to 41°F | 33°F to 41°F |
| Refrigerant | R290 | R290 | R290 | R290 |
| Compressor | Embraco | Embraco | Embraco | Embraco |
| Thermostat | Digital (Dixell) | Digital (Dixell) | Digital (Dixell) | Digital (Dixell) |
| Shelves | 1 | 2 | 2 | 3 |
| Doors | 1 | 2 | 2 | 3 |
| 40′ container loading quantity | 60 | 46 | 28 | 28 |
Dimensions are shown as width × depth × height. Confirm optional features and final specifications with the supplier when ordering.
Applications
Suitable for commercial kitchens and foodservice operations that need refrigerated storage beneath or alongside a work counter, including:
- Restaurants and hotel kitchens
- Bars, cafés and bakeries
- Food preparation and service stations
- Catering kitchens
- Commercial facilities with limited floor space
Frequently Asked Questions
What temperature range do these counter cabinets support?
The listed operating range is 33°F to 41°F for all four models.
What is the difference between the models?
The models vary in width, capacity, shelf count, door count and listed container loading quantity. The TUC-29R is the most compact option; the TUC-72R has the largest listed capacity.
Does the cabinet include automatic defrost?
Automatic defrost is listed as an optional feature. Confirm availability for the model and configuration you need.
Are a fan and lock included?
The fan and lock with key are listed as options. Check the selected configuration with the supplier.
Can the unit be fitted with castors?
Yes. Adjustable stainless steel feet or lockable castors are available as options.
Can I request a custom front panel?
Custom front panel designs can be made on request. Provide the supplier with your requirements to confirm feasibility.
Which thermostat and compressor are listed?
The specifications list a digital Dixell thermostat and an Embraco compressor across all four models.
