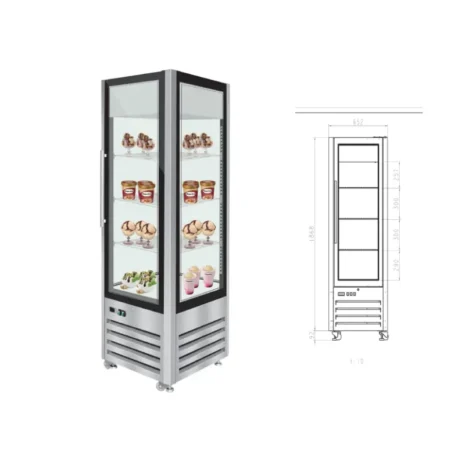

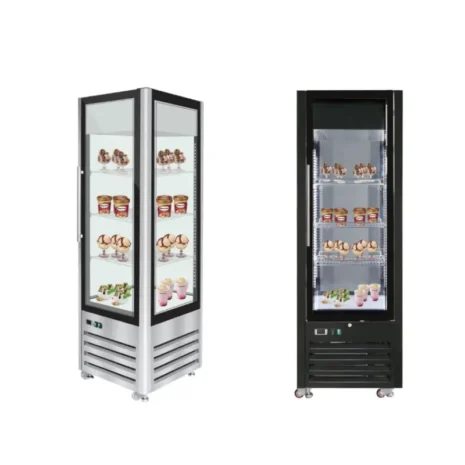

Commercial Upright Ice Cream Display Freezer
Highlights
Commercial Ice Cream Display Freezer with -15°C to -18°C Cooling
Heated Tempered Glass for Clear, Anti-Fog Product Display
Four Adjustable Shelves with 2.4 m² Display Area
R290 Refrigerant with Uniform Internal Air Circulation
LED Lighting, Electronic Temperature Control & Self-Closing Door
Designed for supermarkets, convenience stores, ice cream shops, dessert stores, and other commercial retail environments, this upright ice cream display freezer combines reliable low-temperature refrigeration with clear product visibility and convenient self-service access.
The freezer models operate from -15°C to -18°C, making them suitable for displaying and storing packaged ice cream and other frozen products. High-efficiency refrigeration, an independent internal air circulation system, and intelligent electronic temperature control help maintain a stable and uniform cabinet temperature.
Electrically heated tempered glass helps minimize condensation and fogging, keeping products clearly visible throughout daily operation. Four adjustable shelves provide flexible merchandising space, while integrated LED lighting illuminates products across the cabinet.
For refrigerated applications, the series is also available in 2°C to 8°C models, allowing retailers to select configurations according to different merchandising requirements.
Product Highlights
1. Powerful Commercial Refrigeration
A high-efficiency compressor provides rapid pull-down and dependable cooling performance for demanding commercial applications.
2. Uniform Internal Temperature
An independent internal air circulation design distributes cold air throughout the cabinet to help reduce temperature differences between shelves.
3. Heated Anti-Fog Tempered Glass
Electric heating helps prevent condensation on the glass, maintaining clear visibility of ice cream and frozen products.
4. Flexible Four-Layer Display System
Four dense, adjustable shelves allow operators to optimize the cabinet layout for different package sizes and product categories.
5. Intelligent Electronic Temperature Control
The electronic controller enables accurate temperature adjustment and convenient monitoring during daily operation.
6. Integrated LED Display Lighting
Built-in LED lighting provides bright, even illumination to enhance product presentation without leaving dark display areas.
7. Automatic Condensate Evaporation
The condensate self-evaporation system reduces routine maintenance and eliminates the need for frequent manual water disposal.
8. Energy-Saving Self-Closing Door
The automatic door-return mechanism helps reduce unnecessary cold-air loss when customers access products.
9. Easy Installation and Movement
Mobile universal casters and integrated supports make positioning, cleaning, and store-layout adjustments more convenient.
Technical Specifications
| Parameter | FD-430S | FD-430R | FC-430S | FC-430R |
|---|---|---|---|---|
| Product Dimensions (W × D × H) | 650 × 650 × 1950 mm | 650 × 650 × 1950 mm | 650 × 650 × 1950 mm | 650 × 650 × 1950 mm |
| Packing Dimensions (W × D × H) | 760 × 780 × 2212 mm | 760 × 780 × 2212 mm | 760 × 780 × 2212 mm | 760 × 780 × 2212 mm |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Effective Volume | 0.4 m³ | 0.4 m³ | 0.4 m³ | 0.4 m³ |
| Display Area | 2.4 m² | 2.4 m² | 2.4 m² | 2.4 m² |
| Refrigerant | R290 | R290 | R290 | R290 |
| Temperature Range | -15°C to -18°C | -15°C to -18°C | 2°C to 8°C | 2°C to 8°C |
| Lighting | LED | LED | LED | LED |
| 40′ GP Loading Quantity | 45 pcs | 45 pcs | 45 pcs | 45 pcs |
Applications
This commercial glass-door display cabinet is designed for high-visibility food merchandising in supermarkets, convenience stores, ice cream shops, dessert shops, grocery stores, minimarkets, food retail stores, cafés, and commercial food-service locations.
The FD-430S and FD-430R configurations are particularly suitable for packaged ice cream, popsicles, frozen desserts, frozen snacks, and other products requiring temperatures between -15°C and -18°C. The FC-430S and FC-430R models provide a 2°C to 8°C temperature range for chilled beverages, dairy products, desserts, and other refrigerated merchandise.
FAQ
What temperature does the ice cream display freezer operate at?
The FD-430S and FD-430R models operate from -15°C to -18°C, making them suitable for commercial display and storage of packaged ice cream and other frozen products.
What is the capacity of the cabinet?
Each model provides an effective internal volume of 0.4 m³ and a display area of approximately 2.4 m².
Does the glass door fog up during operation?
The cabinet uses electrically heated tempered glass to help reduce condensation and fogging, improving product visibility in commercial retail environments.
Does this commercial freezer require manual defrosting?
The cabinet is designed with a frost-free refrigeration system to reduce the need for manual defrosting during normal operation.
Are the shelves adjustable?
Yes. The cabinet includes four adjustable display shelves, allowing retailers to configure shelf spacing according to different product and package sizes.
What refrigerant does the freezer use?
The series uses R290 refrigerant, which is widely used in modern commercial refrigeration equipment due to its low global warming potential and strong thermodynamic performance.
Does the cabinet have automatic temperature control?
Yes. An intelligent electronic temperature controller helps maintain the selected operating temperature and simplifies daily temperature management.
Is this freezer suitable for supermarkets and convenience stores?
Yes. Its upright footprint, transparent glass display, LED lighting, adjustable shelving, and self-closing door make it particularly suitable for supermarkets, convenience stores, grocery stores, and frozen-food retail areas.
