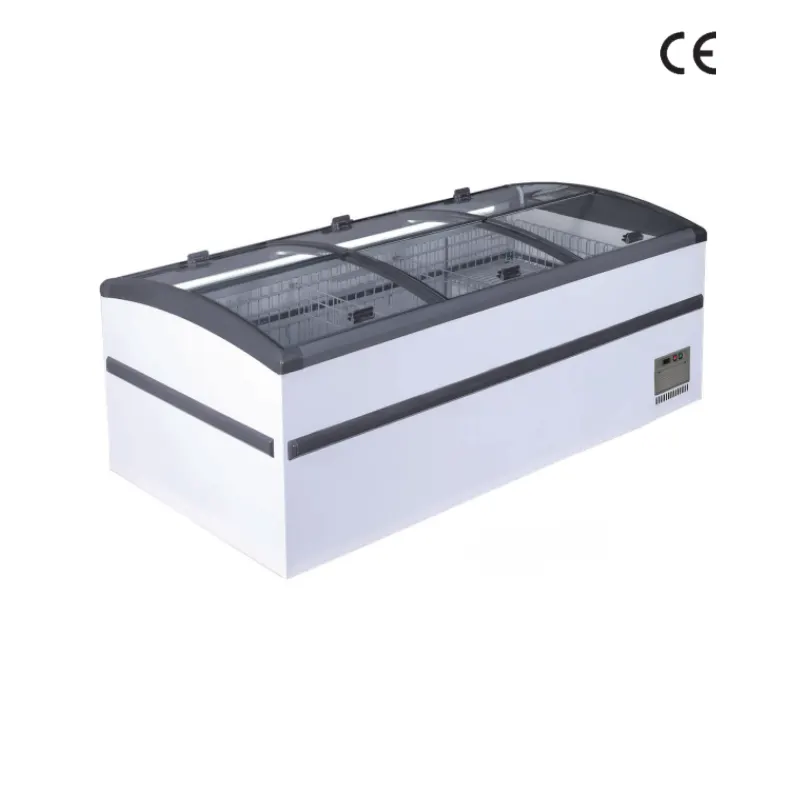

Curved Double-Sided Island Freezer for Frozen Food Display
Features
- Curved Double-Sided Display
- 580L Frozen Storage Capacity
- Sliding Glass Door Access
- Automatic Defrost System
- Self-Evaporating Condensate
The SDC-780R Curved Double-Sided Island Freezer is designed for supermarkets, convenience stores and frozen-food retailers that need an attractive center-floor freezer with convenient customer access from both sides.
Its curved double-sided display structure creates a more open and visually distinctive merchandising area than conventional rectangular island freezers. Upper-and-lower sliding glass doors allow customers to access products easily while helping retain cold air inside the cabinet.
The freezer operates from -18°C to -22°C and offers an effective capacity of 580L, making it suitable for ice cream, frozen snacks, frozen meals, seafood, meat and other packaged frozen products.
A high-efficiency Embraco or Secop compressor provides dependable low-temperature performance, while the automatic defrost system and self-evaporating condensate system simplify daily operation. Internal combination baskets, embedded LED lighting and external price labels further improve product organization and merchandising.
Features
Curved Double-Sided Merchandising
The curved cabinet design allows frozen merchandise to be displayed attractively from both sides.
This makes the freezer especially suitable for center-aisle installations where customers approach from multiple directions.
Upper-and-Lower Sliding Glass Doors
The freezer uses lightweight sliding glass doors for convenient product access.
The sliding design avoids outward-opening clearance and helps make better use of aisle space.
High-Efficiency Compressor
The cabinet can be equipped with Embraco or Secop compressors, supporting reliable freezing performance during continuous commercial operation.
-18°C to -22°C Temperature Range
The freezer maintains a low-temperature environment between -18°C and -22°C, suitable for a wide variety of frozen merchandise.
Food-Grade Pre-Coated Aluminum Interior
The inner cabinet uses food-grade pre-coated aluminum, providing a clean and practical surface for frozen-food storage.
Combination Basket System
Internal modular baskets help separate frozen products by category and make restocking more organized.
Embedded LED Lighting
Two built-in LED lights provide bright illumination throughout the freezer and reduce dark areas inside the cabinet.
Automatic Defrost
The automatic defrost system reduces frost buildup and minimizes the need for manual ice removal.
Self-Evaporating Condensate System
Defrost water is automatically evaporated during normal operation, reducing the need for manual drainage.
External Price Label Display
External price labels make product identification and promotional pricing clearer for customers.
Technical Specifications
| Specification | SDC-780R |
|---|---|
| Product Type | Curved Double-Sided Island Freezer |
| Product Dimensions (W × D × H) | 1900 × 980 × 835 mm |
| Packing Dimensions (W × D × H) | 2000 × 1080 × 870 mm |
| Effective Capacity | 580 L |
| Defrost System | Automatic |
| Temperature Range | -18°C to -22°C |
| Refrigerant | R404A / R290 |
| Compressor | Embraco / Secop |
| Condensate Evaporation | Yes |
| LED Lighting | 2 |
| Temperature Controller | Dixell / Eliwell |
| Door Type | Upper-and-Lower Sliding Glass Doors |
| 40′ GP Loading Qty. | 33 pcs |
Application Scenarios
Supermarket Frozen Food Sections
The double-sided structure is suitable for central frozen-food aisles where customers can browse merchandise from both directions.
Ice Cream Display
The freezer is well suited to:
- Ice cream tubs
- Ice cream bars
- Frozen desserts
- Multipack ice cream
- Premium frozen treats
Frozen Food Merchandising
Typical applications also include:
- Frozen vegetables
- Frozen dumplings
- Frozen pizza
- Ready meals
- Frozen snacks
Meat and Seafood
The basket system can be used to separate packaged frozen meat, fish, shrimp and other seafood products.
Convenience Stores
The 580L capacity offers a practical balance between storage volume and retail floor space.
Promotional Island Display
Its curved appearance makes the freezer suitable for promotional areas where retailers want a more distinctive display fixture.
Why Choose a Curved Double-Sided Island Freezer?
The main advantage of this model is the combination of two-sided customer access and curved merchandising design.
Compared with a conventional wall-positioned freezer, the SDC-780R can be placed in a central sales area and approached from multiple directions.
This helps provide:
- Better product exposure
- Improved customer circulation
- More flexible store positioning
- Convenient frozen-food browsing
- Stronger promotional presentation
The curved structure also gives the freezer a more visually differentiated appearance than standard rectangular island cabinets.
Designed for Easier Daily Operation
Commercial freezer maintenance can add workload for store employees. The SDC-780R therefore incorporates several features intended to simplify routine use.
The automatic defrost system reduces manual frost removal, while the self-evaporating condensate system handles defrost water automatically.
Internal basket sections also make it easier to organize merchandise and replenish individual product categories without rearranging the entire cabinet.
FAQ
1. What is a curved double-sided island freezer?
It is a horizontal commercial freezer with a curved display design that allows products to be viewed and accessed from both sides.
2. What is the capacity of the SDC-780R?
The freezer provides an effective capacity of 580L.
3. What temperature range does it operate at?
The specified temperature range is -18°C to -22°C.
4. What refrigerants are available?
The specification lists R404A and R290 options.
5. What compressor brands can be used?
The freezer can be configured with Embraco or Secop compressors.
6. Does it require manual defrosting?
No. The freezer includes an automatic defrost system.
7. How is defrost water handled?
A self-evaporating condensate system automatically handles water produced during normal defrost cycles.
8. What type of doors are used?
The freezer uses upper-and-lower sliding glass doors.
9. Does the freezer include LED lighting?
Yes. The specification lists two integrated LED lights.
10. What temperature controller is used?
The freezer can use Dixell or Eliwell temperature controllers.
11. Are storage baskets included?
Yes. A combination basket system helps organize and separate different frozen product categories.
12. Is this freezer suitable for ice cream?
Yes, provided the ice cream’s required storage conditions fall within the freezer’s -18°C to -22°C temperature range.
13. Can it be used for frozen seafood and meat?
Yes. It can be used for packaged frozen seafood and meat products compatible with the specified operating temperature.
14. Where is this freezer normally installed?
Typical locations include supermarket center aisles, frozen-food departments, convenience stores and promotional freezer zones.
15. What makes this model different from a standard island freezer?
Its key difference is the curved double-sided design, which improves visual presentation and allows customers to browse products from multiple directions.
