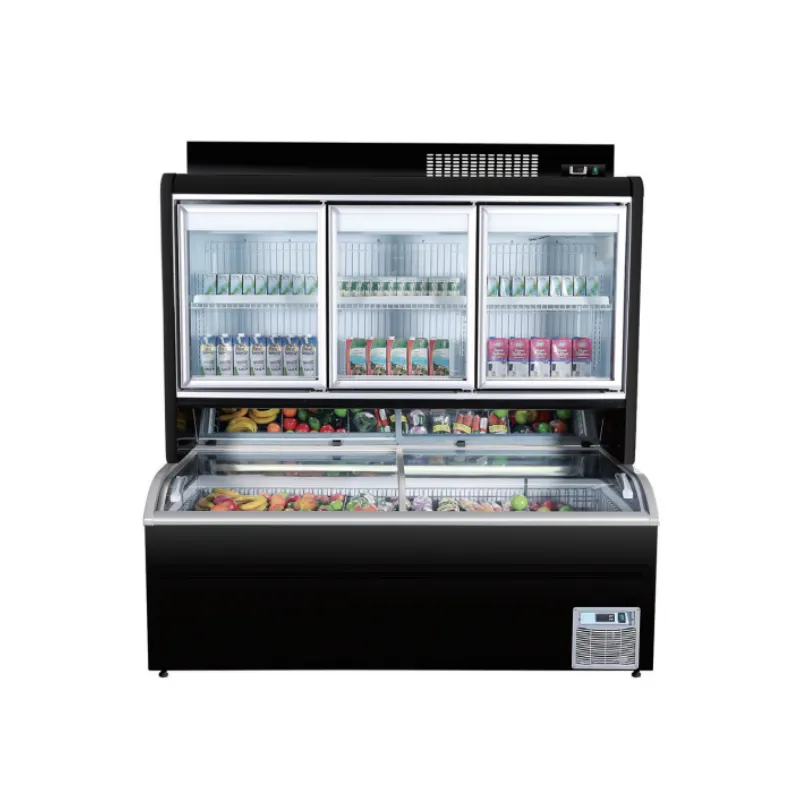

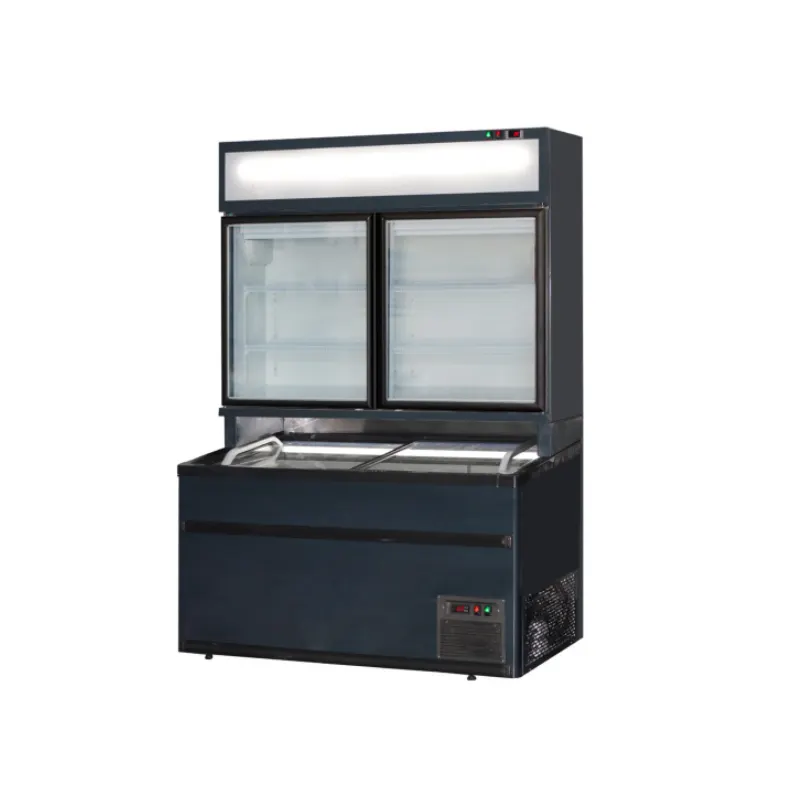

Dual-Temperature Mother & Child Commercial Display Freezer System

The UP / CQV / CQS Mother & Child Series Dual-Temperature Display System combines upright and horizontal freezer formats to create a coordinated refrigerated merchandising solution for supermarkets, convenience stores and frozen-food retailers.

Unlike conventional single-format display equipment, this series can combine upright merchandising cabinets with horizontal island freezers, allowing retailers to use vertical space for product visibility while adding lower island storage for high-volume frozen goods.

The cabinets feature triple-layer tempered glass with electric anti-fog heating, helping maintain clear product visibility under low-temperature operating conditions. Food-grade pre-coated aluminum interiors provide a clean storage environment, while internal divider baskets help organize different product categories.

A hot-gas defrost system automatically removes frost and reduces manual maintenance. Secop or Embraco compressors, Dixell controls and R290/R404A refrigerant configurations provide flexibility for different commercial refrigeration requirements.

With capacities ranging from 460L to 1200L, the series can support compact convenience-store installations as well as larger supermarket frozen-food displays.

Features

Upright + Island Combination Layout

The series combines different cabinet formats rather than relying on one standard display structure.

Upright units provide strong vertical product visibility, while island cabinets create easily accessible frozen-food storage at a lower level.

This configuration can help retailers create a more complete frozen merchandising zone.

Triple-Layer Heated Glass

The freezer doors use triple-layer tempered glass with electric heating.

The heated construction helps reduce:

• Condensation
• Glass fogging
• Frost formation
• Visibility loss

This is particularly valuable for commercial low-temperature displays.

Food-Grade Pre-Coated Aluminum Interior

The internal cabinet uses food-grade pre-coated aluminum, providing a clean and practical surface for commercial frozen-food storage.

Internal Divider Baskets

Divider baskets help separate products into organized sections.

They can be used to classify:

• Ice cream
• Frozen meat
• Seafood
• Frozen vegetables
• Ready meals
• Frozen snacks

Aluminum Alloy Handles

Integrated aluminum alloy handles provide a clean appearance and make sliding glass doors easier to operate.

Automatic Hot-Gas Defrost

The hot-gas defrost system automatically removes frost accumulation and reduces the need for manual de-icing.

Ventilated and Direct Cooling Options

Depending on the model, the series includes both ventilated and direct/static cooling configurations.

This gives retailers greater flexibility when selecting equipment for different product and store requirements.

Secop / Embraco Compressors

The models can use Secop or Embraco compressors, depending on configuration.

R290 / R404A Refrigerant Options

The supplied specifications list R290 and R404A refrigerant configurations.

Dixell Electronic Control

Dixell electronic temperature controllers provide convenient commercial refrigeration management.

LED Lighting

LED lighting improves visibility of displayed frozen products and helps customers identify merchandise more easily.

---

Technical Specifications

*The source table labels capacity as m³, but values such as 595, 610 and 1200 appear much more likely to represent liters. Confirm the unit before publication.

**The supplied temperature row contains 2 / 2 / 3 / 2, but does not identify whether these are temperature classes, operating modes or another specification. I recommend confirming this before publishing a numerical temperature claim.

---

Model Options

UP-1500F – 595L Upright Display

The UP-1500F uses a narrow 560 mm deep upright format, allowing retailers to add vertical frozen merchandising without requiring excessive floor depth.

Its 1.80 m² display area provides strong product visibility.

CQV-15D – 610L Island Freezer

The CQV-15D provides a lower horizontal display format with 610L effective capacity.

It is suitable for center-floor frozen-food merchandising and high-volume product storage.

UP-2100F – 1200L Upright Display

The wider UP-2100F provides the largest listed effective capacity at 1200L.

Its upright structure is suitable for supermarket wall lines and larger frozen merchandising zones.

CQS-21L – 460L Island Freezer

The CQS-21L provides a compact horizontal format with 460L capacity and a 1.84 m² display area.

It can complement an upright freezer by providing additional customer-accessible frozen storage.

---

Application Scenarios

Supermarket Frozen Food Zones

The combination of upright and island cabinets allows retailers to build a complete merchandising area using two complementary cabinet formats.

Ice Cream & Frozen Desserts

Triple-layer heated glass helps maintain clear visibility for ice cream, desserts and promotional frozen products.

Frozen Meat & Seafood

Internal baskets allow meat and seafood products to be separated by category.

Frozen Ready Meals

The cabinets can display:

• Frozen pizza
• Dumplings
• Prepared meals
• Frozen snacks
• Frozen vegetables
• Packaged convenience foods

Convenience Stores

Compact upright and island models can be combined where floor space is limited but different merchandising formats are required.

Retail Chain Projects

The coordinated cabinet family can help chain retailers standardize freezer layouts across different store sizes.

---

Why Combine Upright and Island Freezers?

Upright and island freezers serve different merchandising purposes.

An upright freezer uses vertical space efficiently and keeps products highly visible at eye level.

An island freezer provides lower, horizontal storage that can hold larger quantities of frozen products and support impulse purchasing.

Using both formats together can provide:

• Greater total display capacity
• Better use of vertical and floor space
• More flexible customer access
• Improved product-category separation
• Stronger frozen-food merchandising

---

Heated Glass for Low-Temperature Display

Low-temperature cabinets can develop condensation or frost on glass surfaces.

The triple-layer heated glass system helps maintain a clearer viewing area by warming the glass surface.

This supports:

• Better product visibility
• Cleaner cabinet appearance
• Easier product identification
• More attractive frozen-food merchandising

---

Ventilated vs. Direct Cooling

This series includes two refrigeration approaches.

Ventilated Cooling

The UP-1500F and UP-2100F use fan-assisted circulation to distribute cold air throughout the upright cabinet.

Direct Cooling

The CQV-15D and CQS-21L use direct cooling, providing a simpler refrigeration approach for horizontal island storage.

This combination allows retailers to choose different refrigeration structures within the same merchandising concept.

---

FAQ

1. What is a Mother & Child display cabinet?

It refers to a coordinated commercial refrigeration concept that combines different cabinet formats—typically upright and lower island units—within one merchandising solution.

2. Is this series suitable for frozen food?

Yes. The product features, heated triple-layer glass and freezer-type cabinet configurations are designed for frozen-food merchandising.

3. What capacities are available?

The supplied models provide approximately:

• 595L
• 610L
• 1200L
• 460L

4. What type of glass is used?

The product description specifies triple-layer tempered coated glass with electric anti-fog heating.

5. Why is the glass electrically heated?

Heating helps reduce condensation and frost on the viewing surface in low-temperature environments.

6. Does the cabinet use automatic defrost?

Yes. A hot-gas defrost system is included according to the supplied product features.

7. What compressor brands are available?

The listed configurations include Secop and Embraco.

8. What refrigerants can be used?

The specification lists R290 and R404A.

9. What controller is used?

The models use Dixell electronic temperature controllers.

10. Does the cabinet include LED lighting?

Yes. LED lighting is standard across the listed models.

11. Are divider baskets included?

Yes. Internal divider baskets help organize different frozen product categories.

12. What is the difference between ventilated and direct cooling models?

Ventilated models circulate cold air using fans, while direct cooling relies more directly on the refrigerated evaporator surface and natural air movement.

13. Can the upright and island cabinets be used together?

Yes. Their complementary formats make them suitable for creating coordinated frozen-food merchandising zones.

14. What is the actual operating temperature?

The supplied table does not provide a clear °C range for these four models. The values shown as 2 / 2 / 3 / 2 should be confirmed before a specific operating temperature is published.

15. Which model has the largest effective capacity?

The UP-2100F has the largest listed effective capacity at approximately 1200L.
