GN Series 304 Stainless Steel Refrigerated Worktables with GN 1/1 Storage

Bring refrigerated storage directly beneath your preparation surface with the GN Series stainless steel worktables. Combining a practical worktop with fan-assisted cooling, this range keeps ingredients within reach while making efficient use of kitchen floor space.

The series includes refrigerator models operating from −2°C to +10°C and freezer models operating from −22°C to −18°C. Three widths—1,360 mm, 1,795 mm and 2,230 mm—provide storage capacities of 282, 417 and 553 litres, making it easier to match the counter to your kitchen layout and storage needs.

Standard interior and exterior construction uses 304 stainless steel, with rounded internal corners that simplify cleaning. A 60 mm insulation layer, self-closing doors and removable magnetic gaskets support everyday use in busy commercial kitchens. GN 1/1-compatible shelving helps integrate the worktables into existing food preparation workflows.

Choose from solid-door storage or optional glass doors and drawer configurations to suit the way your team works.

Key Features

• Preparation and cold storage in one footprint
  Use the worktop for daily preparation while keeping refrigerated or frozen ingredients in the cabinet below.
• 304 stainless steel inside and out
  Standard stainless steel construction provides a durable, easy-to-clean surface for professional kitchen use.
• 60 mm insulation
  Thick cabinet insulation helps limit heat transfer between the refrigerated compartment and the surrounding kitchen.
• Doors that close automatically below 90°
  The self-closing design helps reduce the chance of doors being left partially open during service.
• Rounded internal corners and removable gaskets
  Curved interior edges reduce hard-to-reach cleaning areas. Magnetic door seals can be removed without tools.
• Fan-assisted cooling with automatic defrost
  Air circulation distributes cold air throughout the cabinet, while automatic defrost reduces manual defrosting work.
• Dixell digital temperature control
  The listed models use a Dixell controller for temperature adjustment and monitoring.
• GN 1/1-compatible shelving
  Each door section includes one grey-coated shelf as standard, supporting a consistent storage format across the range.
• Heated, replaceable door mullion
  The centre divider incorporates a heating element to help control condensation and can be replaced when required.
• Installation and storage options
  Choose adjustable stainless steel feet or lockable castors, with additional door, drawer and worktop configurations available on request.

Technical Specifications

Refrigerants represent alternative configurations, not a mixed refrigerant charge. Confirm the supplied refrigerant when ordering.

Series Construction and Options

Option availability and component substitutions should be confirmed for the selected model.

Application

Restaurant Preparation Lines

Position chilled ingredients below the worktop for portioning, assembly and plating. Select the cabinet width that fits the preparation station and the volume of ingredients handled during service.

Cafés and Sandwich Kitchens

Combine a preparation surface with undercounter ingredient storage where floor space is limited. Optional drawers provide an alternative to shelves for organising GN-format containers.

Hotel and Catering Kitchens

Use larger-capacity models for preparation areas serving multiple menus or higher meal volumes. GN 1/1-compatible storage fits kitchens already organised around Gastronorm equipment.

Bakery and Pastry Preparation

Choose refrigerator models for ingredients requiring chilled storage, or freezer models for products requiring frozen storage. Set the operating temperature according to the requirements of the food being stored.

Modular Commercial Kitchen Installations

The shared 700 mm depth and 860 mm height help coordinate counters of different widths within a kitchen plan. Optional splashbacks, feet and castors allow the installation to be tailored to the workspace.

Frequently Asked Questions

What is the difference between TN and BT models?

TN models are refrigerators with a temperature range of −2°C to +10°C. BT models are freezers with a range of −22°C to −18°C. Select the version according to the storage requirements of your ingredients.

Which size should I choose?

The 2100 models provide 282 litres of capacity in a 1,360 mm-wide cabinet. The 3100 models offer 417 litres at 1,795 mm wide, while the 4100 models provide 553 litres at 2,230 mm wide. All listed models are 700 mm deep and 860 mm high.

Is 304 stainless steel standard?

Yes. The standard specification uses 304 stainless steel for both the interior and exterior. A /S5 version using 201 stainless steel is available as an alternative and should be specified when ordering.

Are the shelves compatible with GN 1/1?

Yes. The cabinets support GN 1/1-compatible shelving. One grey-coated shelf is supplied per door section, giving the listed models two, three or four shelves.

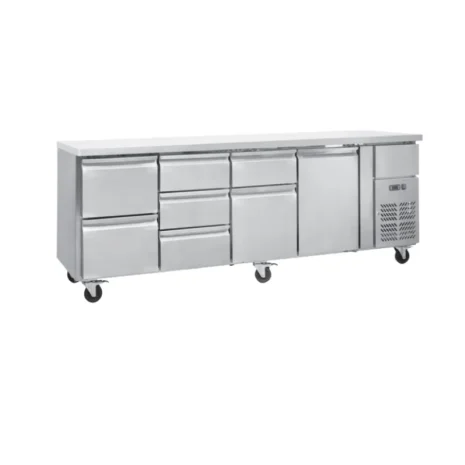

Can I order drawers instead of standard doors?

Optional drawer configurations accommodate GN 1/3, GN 2/3 or GN 1/2 formats. Confirm the drawer arrangement and its availability for your chosen refrigerator or freezer model before ordering.

How are the doors and seals designed for daily use?

Doors close automatically when opened less than 90°. The magnetic gaskets are removable without tools, making routine cleaning and replacement easier.

Which controller and compressor are fitted?

The supplied model table specifies Dixell controllers throughout the range. GN-2100TN and GN-3100TN use ZEL compressors; the other listed models use Secop compressors. Confirm any requested component changes in the final order specification.

Are lighting, locks and splashbacks included?

These are optional. Interior lighting, locks and keys, rear splashbacks, glass doors and other custom configurations should be specified when ordering.
