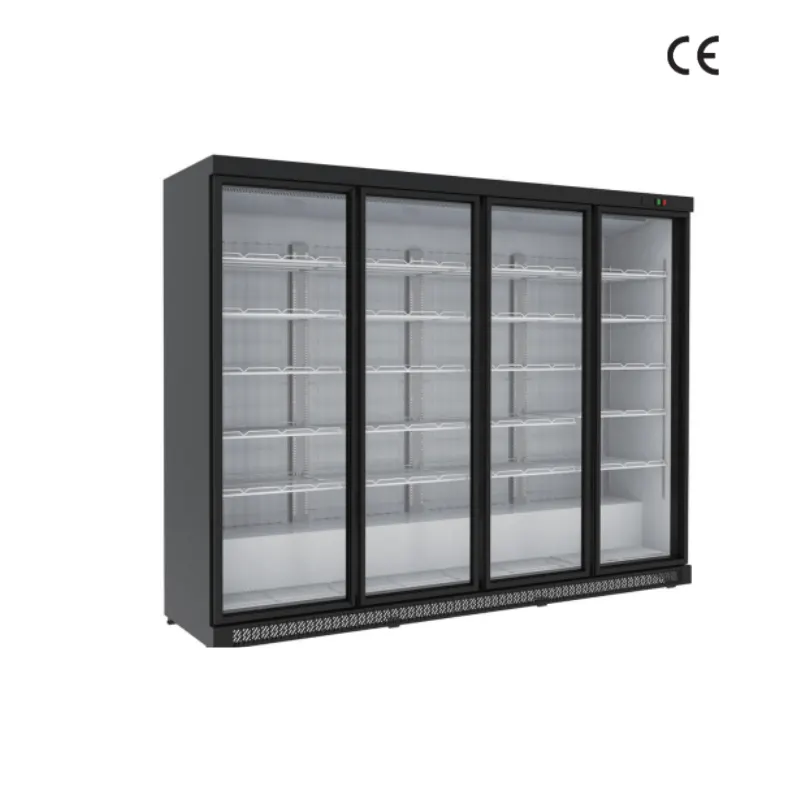

Rear-Mounted Glass Door Display Fridge

The Realmann SC-FR Rear-Mounted Glass Door Display Refrigerator Series is developed for large-capacity refrigerated merchandising in supermarkets, grocery chains, convenience stores, and commercial food retail environments. Featuring a flat-top cabinet design with a rear-mounted refrigeration unit, this series provides spacious chilled storage and an unobstructed product display arrangement.

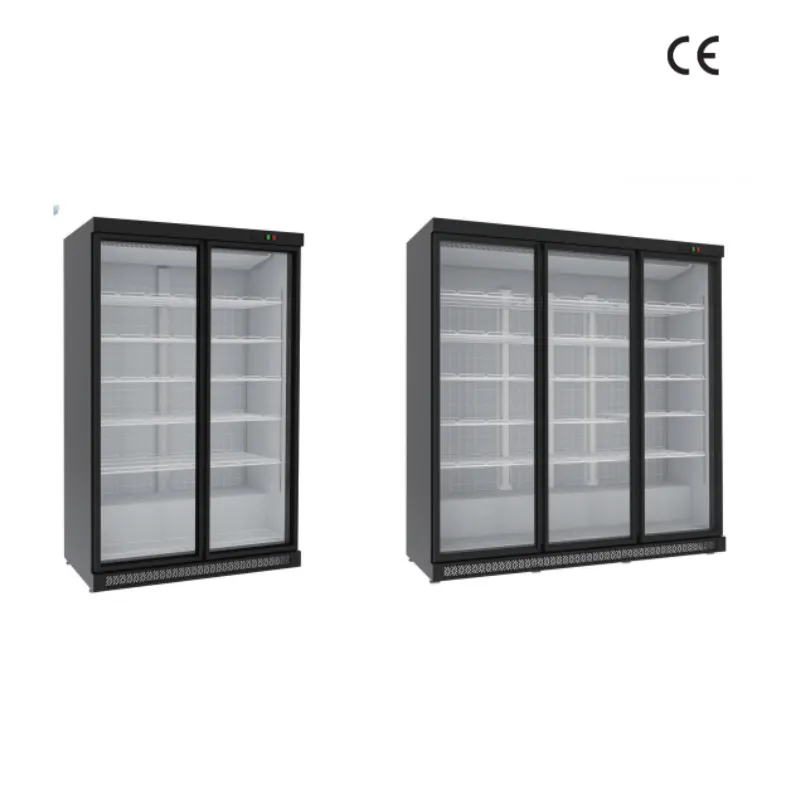

Available in three models—SC-1006FR, SC-1506FR, and SC-1906FR—the series offers usable capacities of 1000L, 1550L, and 2100L, with corresponding display areas of 1.92 m², 2.88 m², and 3.84 m².

The rear-mounted refrigeration configuration provides a distinct cabinet layout compared with conventional display refrigerators with alternative unit placements. This allows retail equipment buyers to select a refrigeration arrangement according to their installation requirements and store layout.

For clear product presentation, the refrigerator features double-layer electrically heated Low-E tempered glass doors. The Low-E coating helps limit radiant heat transfer, while integrated electric heating reduces condensation and fogging on the glass surface, helping customers view products without opening the cabinet.

The fan-forced refrigeration system circulates chilled air through the display compartment, supporting a specified operating temperature range of 0°C to +7°C. An enlarged copper-aluminum finned evaporator incorporates a manufacturer-specified 30% additional design allowance.

Inside the cabinet, four adjustable shelf levels and pre-coated aluminum panels support organized merchandising of bottled beverages and suitable chilled packaged foods. Vertical LED lighting along both sides enhances product visibility, while corrosion-resistant stainless steel shelf supports facilitate daily maintenance.

Self-closing glass doors help reduce accidental prolonged openings, and the integrated self-evaporating condensate system reduces routine manual water disposal.

For commercial refrigeration distributors and retail project buyers, Realmann provides optional exterior material configurations, integrated door handles, and enlarged swivel caster arrangements.

Key Features & Benefits

1. Rear-Mounted Refrigeration Unit Design

The SC-FR Series uses a rear-mounted refrigeration unit configuration, distinguishing it from standard bottom-mounted commercial display cabinets.

This design provides an alternative layout for supermarkets and retail equipment projects where refrigeration unit placement is an important installation consideration.

Buyers should confirm rear ventilation clearance and service access requirements according to the selected cabinet configuration.

2. Large Display Area for High-Volume Merchandising

The series offers three refrigerated display area configurations:

• SC-1006FR: 1.92 m² display area

• SC-1506FR: 2.88 m² display area

• SC-1906FR: 3.84 m² display area

These display areas support organized product presentation across different cabinet widths.

The larger SC-1906FR is suitable for retail projects requiring extended chilled merchandising space.

3. Double-Layer Heated Low-E Tempered Glass Doors

The cabinet uses double-layer insulated tempered glass with Low-E coating and integrated electric heating.

The Low-E coating helps reduce radiant heat transfer, while electric heating helps limit condensation on the glass surface.

This design supports clear visibility of refrigerated products, particularly in humid retail environments.

4. Fan-Forced Cooling from 0°C to +7°C

A fan-circulated refrigeration system distributes chilled air throughout the cabinet.

The specified operating range of 0°C to +7°C makes the series suitable for refrigerated merchandise that can be stored within these conditions.

Actual operating temperatures depend on ambient conditions, product loading, door-opening frequency, and installation requirements.

5. Enlarged Copper-Aluminum Finned Evaporator

The refrigeration system incorporates an enlarged copper-aluminum finned evaporator with a manufacturer-specified 30% additional design allowance.

The expanded heat-exchange configuration provides extra evaporator design margin.

This specification should not be interpreted as a guaranteed 30% improvement in cooling performance or energy efficiency.

6. Four Adjustable Shelf Levels

Each model includes four adjustable shelf levels.

Retailers can modify shelf positions according to product height and packaging dimensions, providing flexibility for bottled drinks, canned beverages, and suitable packaged refrigerated products.

7. Vertical LED Lighting for Clear Merchandising

Vertical LED lighting positioned along both interior sides helps illuminate products across the display shelves.

This lighting arrangement supports improved product identification and a consistent presentation of refrigerated merchandise.

8. Stainless Steel Shelf Supports

The cabinet incorporates stainless steel shelf support rails designed for practical commercial use.

These supports resist corrosion and simplify routine cleaning and shelf adjustment.

9. Self-Closing Glass Doors

The self-closing mechanism helps return the glass doors to their closed position following customer access.

This reduces the likelihood of prolonged accidental openings and helps limit unnecessary warm-air infiltration during normal operation.

10. Self-Evaporating Condensate System

The refrigerator includes a self-evaporating condensate management system intended to reduce the need for routine manual water disposal.

This supports convenient day-to-day operation in busy commercial retail environments.

11. Optional Cabinet Materials and Integrated Handles

Realmann offers optional PCM or aluminum panel configurations, allowing buyers to discuss cabinet material requirements.

Integrated door handles and enlarged swivel casters are also listed as available options, providing additional flexibility for retail equipment configurations.

Technical Specifications

SC-1006FR / SC-1506FR / SC-1906FR Comparison

Compressor brands are listed as alternatives according to the supplied technical sheet. The specific compressor configuration should be confirmed for each order. Electrical ratings, energy consumption, and climate class are not provided.

Optional Configurations

Commercial Applications

1. Supermarket Refrigerated Food Sections

The SC-FR Series is suitable for supermarkets requiring larger chilled display areas.

With display surfaces ranging from 1.92 m² to 3.84 m², the cabinets can accommodate various packaged refrigerated products, including suitable beverages and chilled foods.

The rear-mounted refrigeration arrangement provides an alternative equipment layout for supermarket refrigeration projects.

2. Grocery Store Beverage Displays

The adjustable shelves and vertical LED lighting support refrigerated merchandising of bottled water, soft drinks, juices, and other ready-to-drink products.

Self-closing heated glass doors help maintain product visibility and support regular customer access.

3. Retail Chain Refrigeration Installations

Retail chains can select from three cabinet widths and capacities to accommodate different store formats.

The consistent flat-top appearance helps create coordinated refrigerated display arrangements across multiple locations.

4. High-Volume Chilled Product Merchandising

The SC-1506FR and SC-1906FR provide expanded refrigerated display capacity for higher-volume retail applications.

Their 1550L and 2100L usable capacities support larger merchandise assortments in suitable commercial environments.

5. Commercial Food Retail Projects

Equipment distributors and retail project contractors can consider the SC-FR Series when specifying refrigerators for grocery stores, commercial food outlets, and supermarket installations.

The rear-mounted refrigeration unit and optional cabinet components provide additional configuration choices for project planning.

Frequently Asked Questions (FAQ)

Q1: What is a rear-mounted glass door display refrigerator?

A rear-mounted glass door display refrigerator is a commercial refrigerated cabinet with its refrigeration unit positioned at the rear of the equipment.

This arrangement differs from refrigerators with bottom-mounted or top-mounted units and may influence ventilation, installation clearance, and service access requirements.

Q2: What models are available in the Realmann SC-FR Series?

The series includes three models:

• SC-1006FR: 1000L usable capacity

• SC-1506FR: 1550L usable capacity

• SC-1906FR: 2100L usable capacity

All three models feature fan-forced cooling and a specified temperature range of 0°C to +7°C.

Q3: What are the benefits of electrically heated Low-E glass doors?

The Low-E coating helps limit radiant heat transfer through the glass.

The electric heating function helps reduce condensation and fogging on the door surface, maintaining clearer visibility of the refrigerated merchandise.

Q4: How much display area does each model provide?

The SC-1006FR provides 1.92 m², the SC-1506FR provides 2.88 m², and the SC-1906FR provides 3.84 m² of specified display area.

These figures help retail equipment buyers compare the merchandising area available across the three models.

Q5: What refrigerant does the SC-FR Series use?

All three models use R290 refrigerant.

R290 has a low global warming potential but is flammable. Installation and maintenance must follow applicable refrigeration safety requirements.

Q6: Are the shelves adjustable?

Yes. Each model includes four adjustable shelf levels.

The shelving configuration can be adapted to different product heights and packaging formats.

Q7: Do the doors close automatically?

Yes. The series includes self-closing glass doors designed to return toward the closed position after opening.

This helps reduce accidental prolonged door openings during retail operation.

Q8: What compressor brands are available?

The compressor brands vary by model:

• SC-1006FR: Cubigel or Donper

• SC-1506FR: Donper or Huayi

• SC-1906FR: Cubigel or Donper

The exact compressor configuration should be confirmed with Realmann before ordering.

Q9: What is the purpose of the enlarged copper-aluminum evaporator?

The copper-aluminum finned evaporator provides heat-exchange surfaces for the refrigeration system.

The manufacturer specifies a 30% additional evaporator design allowance, intended to provide extra refrigeration design margin.

Q10: Does the refrigerator require manual condensate drainage?

The self-evaporating condensate system is designed to reduce routine manual water disposal during normal operation.

Periodic cleaning and maintenance are still recommended.

Q11: Can cabinet materials and door handles be customized?

Yes. The supplied product information lists optional PCM or aluminum panel configurations and integrated door handles.

Buyers should confirm available options for their selected model.

Q12: Does Realmann provide wholesale and OEM/ODM manufacturing?

Yes. Realmann supports commercial refrigeration wholesale and OEM/ODM inquiries.

Customers can discuss cabinet configurations, optional materials, order quantities, and project requirements with the manufacturer.
