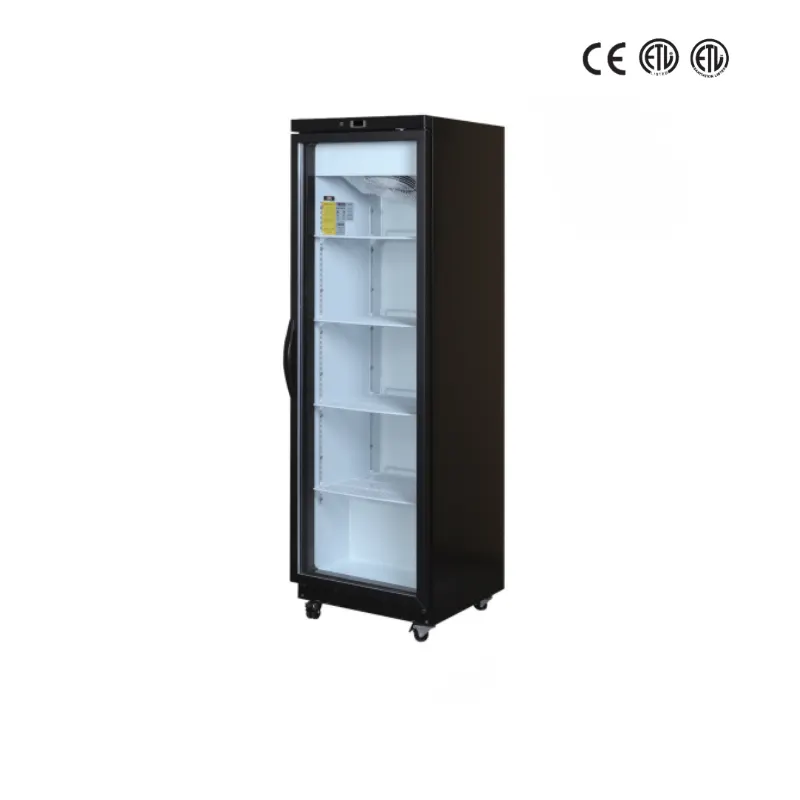

Stainless Steel and Glass Door Upright Display Refrigerators & Freezers

Highlights

  • Upright commercial refrigerator and freezer models with glass doors
  • European-style cabinet design
  • Refrigerator temperature range: 0 to +8°C
  • Freezer temperature: −18°C
  • Static, fan-assisted static, or ventilated cooling, depending on model
  • Digital thermostat; Dixell or Eliwell controller options
  • Interior lighting and adjustable shelves
  • Lock and key
  • Reversible self-closing door option
  • Optional stainless steel or glass exterior finish
  • Optional two adjustable front feet and two rear wheels
Download Datasheet

The SR and SF Series glass door upright cabinets combine front-facing product visibility with organized commercial refrigeration or frozen storage. Available in 143L, 345L, 356L, 506L, and 580L capacities, the range includes refrigerator models with a listed temperature range of 0 to +8°C and freezer models rated at −18°C. Choose static, fan-assisted static, or ventilated cooling according to the model. Each unit includes interior lighting, shelves, a digital thermostat, and a lock with key. Stainless steel or glass exterior finishes, Eliwell or Dixell controls, reversible self-closing doors, two adjustable front feet, and two rear wheels are listed as options; confirm the configuration available for your selected model.

  • SR-20G 143L Glass Door Upright Display Refrigerator
  • SF-40VG 345L Ventilated Glass Door Display Freezer
  • SR-40G 356L Glass Door Upright Display Refrigerator
  • SR-40VG 356L Ventilated Glass Door Display Refrigerator
  • SF-60VG 506L Ventilated Glass Door Display Freezer
  • SR-60G 580L Glass Door Display Refrigerator
  • SR-60VG 580L Ventilated Glass Door Display Refrigerator

Highlights

  • Upright commercial refrigerator and freezer models with glass doors
  • European-style cabinet design
  • Refrigerator temperature range: 0 to +8°C
  • Freezer temperature: −18°C
  • Static, fan-assisted static, or ventilated cooling, depending on model
  • Digital thermostat; Dixell or Eliwell controller options
  • Interior lighting and adjustable shelves
  • Lock and key
  • Reversible self-closing door option
  • Optional stainless steel or glass exterior finish
  • Optional two adjustable front feet and two rear wheels

Specifications

Specification SR-20G SF-40VG SR-40G SR-40VG SF-60VG SR-60G SR-60VG
Dimensions (W × D × H) 595 × 653 × 870 mm 595 × 653 × 1840 mm 595 × 653 × 1840 mm 595 × 653 × 1840 mm 775 × 723 × 1840 mm 775 × 723 × 1840 mm 775 × 723 × 1840 mm
Capacity 143 L 345 L 356 L 356 L 506 L 580 L 580 L
Cooling system Static Ventilated Static with fan cooling Ventilated Ventilated Static with fan cooling Ventilated
Temperature range 0 to +8°C −18°C 0 to +8°C 0 to +8°C −18°C 0 to +8°C 0 to +8°C
Shelves 1 + 1 6 + 1 3 + 1 3 + 1 6 + 1 3 + 1 3 + 1
Interior lighting Yes Yes Yes Yes Yes Yes Yes
Compressor ZEL / ZEL Embraco / ZEL ZEL / ZEL ZEL / ZEL Embraco / ZEL ZEL / ZEL ZEL / ZEL
Thermostat Dixell Dixell / Elitech Dixell Dixell Dixell / Elitech Dixell Dixell
Refrigerant R134a / R600a R404a / R290 R134a / R600a R134a / R600a R404a / R290 R134a / R600a R134a / R600a
40-ft GP container loading 108 54 54 54 42 42 42

Specifications are transcribed from the supplied charts. Confirm the exact finish, thermostat, compressor, refrigerant, and door options for the selected model before ordering.

Applications

Suitable for supermarkets, convenience stores, cafés, restaurants, beverage shops, and other food-service or retail settings that need chilled or frozen products stored visibly and accessibly.

FAQ

Which models are refrigerators and which are freezers?
Models with an SR prefix are refrigerators, listed at 0 to +8°C. SF-40VG and SF-60VG are freezers, listed at −18°C.

Do all models use ventilated cooling?
No. Depending on the model, the cooling system is static, static with fan cooling, or ventilated. See the specification table for details.

What capacities are available?
The listed capacities range from 143L to 580L. Freezer models are available in 345L and 506L capacities.

Are the cabinets supplied with glass doors?
The model names and product request refer to glass door cabinets. Confirm the precise door and exterior configuration with the supplier when ordering.

Can I choose a stainless steel exterior?
Stainless steel or glass exterior finishes are listed as options. Confirm the finish available for your model.

Which thermostat brands are available?
The specification charts list Dixell or Dixell/Elitech by model. Eliwell is also mentioned as an option in the product information, so confirm controller availability when ordering.

Are wheels and adjustable feet included?
Two adjustable front feet and two rear wheels are listed as an option. Confirm whether they are included in the selected configuration.
