Stainless Steel Drawer Worktop Refrigerators
Highlights
- Stainless steel interior and exterior, standard SS201
- Optional SS304 exterior or interior
- Stainless steel adjustable feet or optional lockable casters
- Digital Carel thermostat
- Huayi NUT45NR compressor
- Ventilated cooling with R290 refrigerant
- Evaporator and condenser fans
- Two or four refrigerated drawers, depending on model

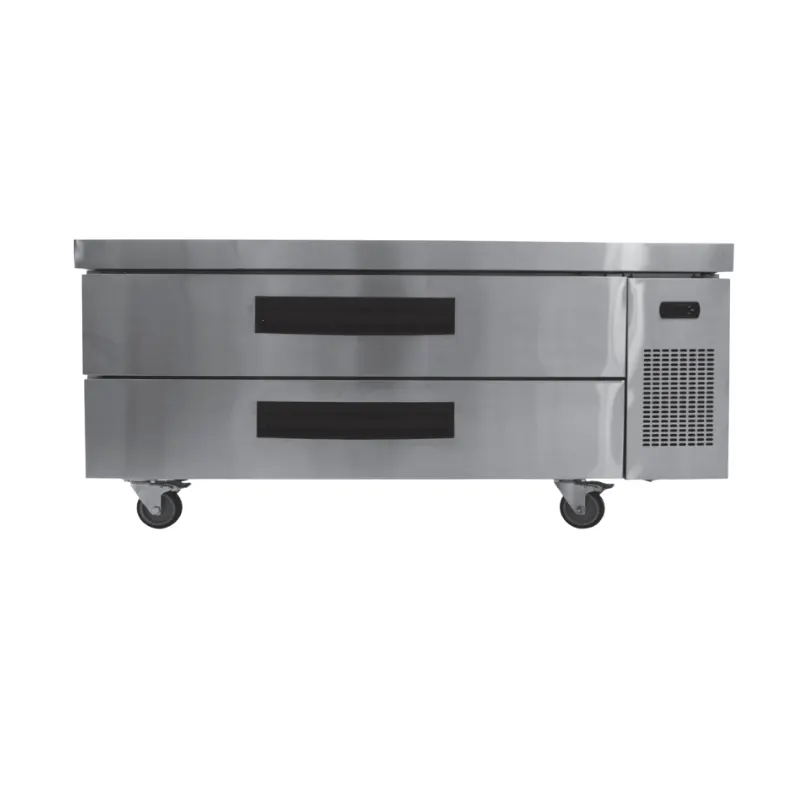

The CB Series stainless steel refrigerated drawer worktop combines a durable preparation surface with convenient refrigerated storage for commercial kitchens. Made with SS201 stainless steel inside and out, it features ventilated R290 cooling, a digital Carel thermostat, and a Huayi compressor to help keep ingredients chilled and within easy reach during food preparation. Choose from three sizes with two or four drawers, and configure the unit with optional SS304 stainless steel and adjustable feet or lockable casters.

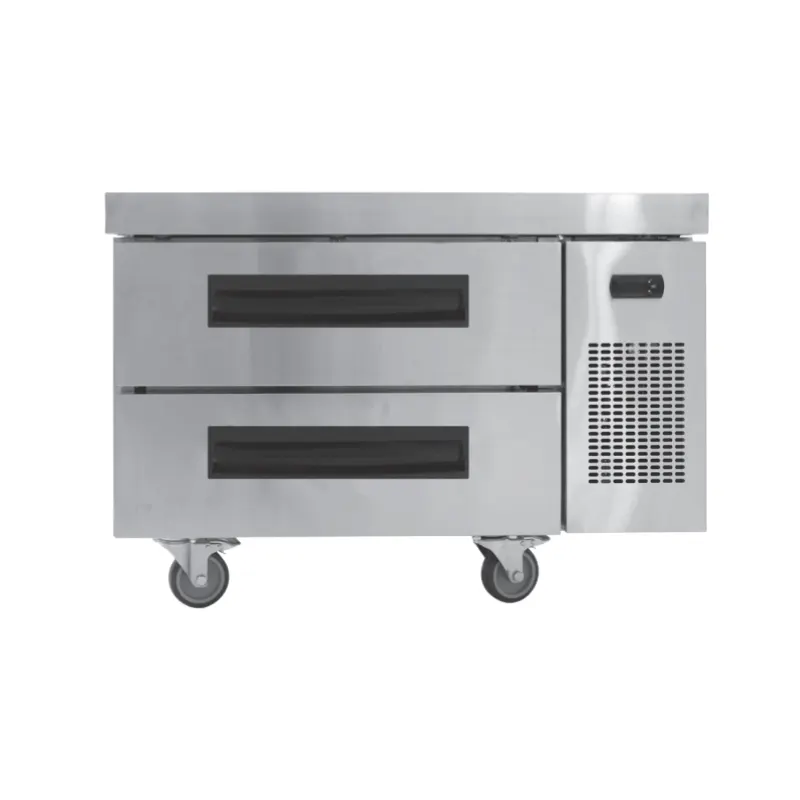

CB-36TN: A compact refrigerated worktop for kitchens that need cold storage close to the prep area. Two drawers provide organized access to ingredients, while ventilated cooling and a digital Carel thermostat support temperature control.
CB-52TN: Add practical refrigerated storage and a stainless steel work surface to your commercial kitchen. This 225-liter model has two drawers and a ventilated cooling system, making it suitable for daily ingredient handling in foodservice operations.
CB-72TN: Designed for higher-volume prep areas, the CB-72TN pairs a generous 334-liter capacity with four drawers. Its wide worktop and ventilated refrigeration help teams keep ingredients accessible during busy service.
Highlights
- Stainless steel interior and exterior, standard SS201
- Optional SS304 exterior or interior
- Stainless steel adjustable feet or optional lockable casters
- Digital Carel thermostat
- Huayi NUT45NR compressor
- Ventilated cooling with R290 refrigerant
- Evaporator and condenser fans
- Two or four refrigerated drawers, depending on model
Specifications
| Specification | CB-36TN | CB-52TN | CB-72TN |
|---|---|---|---|
| Product dimensions (W × D × H) | 920 × 820 × 685 mm (36.2 × 32.3 × 27 in) | 1340 × 820 × 685 mm (52.8 × 32.3 × 27 in) | 1835 × 820 × 685 mm (72.2 × 32.3 × 27 in) |
| Package dimensions (W × D × H) | 980 × 880 × 730 mm (38.5 × 34.6 × 28.7 in) | 1400 × 880 × 730 mm (55 × 34.6 × 28.7 in) | 1895 × 880 × 730 mm (74.6 × 34.6 × 28.7 in) |
| Capacity | 132 L / 4.66 cu ft | 225 L / 7.94 cu ft | 334 L / 11.79 cu ft |
| Drawers | 2 | 2 | 4 |
| Cooling type | Ventilated | Ventilated | Ventilated |
| Refrigerant | R290 | R290 | R290 |
| Refrigerant charge | 60 g | 75 g | 100 g |
| Temperature range | 32–41°F | 32–41°F | 32–41°F |
| Thermostat | Carel | Carel | Carel |
| Compressor | Huayi NUT45NR | Huayi NUT45NR | Huayi NUT45NR |
| 40-ft high-cube container loading | 78 | 48 | 39 |
The source chart labels both millimeter and inch dimension rows, but the values in those rows appear reversed. Dimensions above pair the values with their likely units based on the magnitudes; please confirm with the supplier before publishing. Temperature range is shown as 32–41 in the chart; °F is inferred from typical product labeling and should also be confirmed.
Applications
Suitable for restaurants, cafés, sandwich shops, delis, catering kitchens, and other commercial food preparation areas. The worktop supports prep tasks while drawer storage keeps frequently used ingredients within reach.
FAQ
What is a refrigerated drawer worktop used for?
It combines a food-preparation work surface with refrigerated drawer storage for ingredients and other chilled items.
How many drawers does each model have?
The CB-36TN and CB-52TN have two drawers each. The CB-72TN has four.
What is the listed operating temperature range?
The chart states 32–41. Confirm the temperature unit with the supplier before ordering or publishing.
Which materials are standard?
SS201 stainless steel is listed for both the exterior and interior. SS304 is available as an option for the exterior or interior.
What refrigeration components are listed?
The chart lists ventilated cooling, R290 refrigerant, a Huayi NUT45NR compressor, and a Carel thermostat. Evaporator and condenser fans are included in the supplied product details.
Can the unit be fitted with casters?
Lockable casters are listed as an option. Adjustable stainless steel feet are also available.
What should I confirm before placing an order?
Confirm the temperature unit and verify the product and package dimensions, stainless steel configuration, and mobility options with the supplier.
