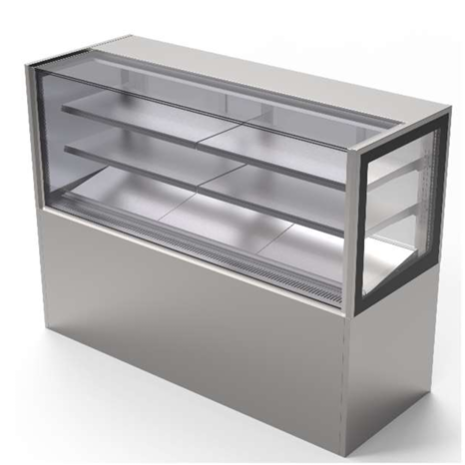

1800 Three-Layer Right-Angle Cake Display Case (Air-Cooled)

 Features

  • Precise Temperature Control (-2°C to +5°C)
    Ensures consistent freshness for cakes and chilled desserts
  • Advanced Airflow Distribution System
    Rear-outlet & front-inlet design for uniform cooling across all layers
  • Energy-Efficient Operation
    Inverter compressor + EC fans, only 12.1 kWh/24h
  • Premium Display Performance
    Three-layer structure with Low-E anti-fog glass for maximum visibility
  • Smart & Low-Maintenance Design
    Natural defrost, removable filter, RS485 remote monitoring support
Download Datasheet

The 1800 Three-Layer Right-Angle Cake Display Case (Air-Cooled) is designed for high-capacity, premium food retail environments where both product presentation and precise refrigeration are essential. With an extended 1800 mm display width and 750L net capacity, it provides ample space for showcasing cakes, pastries, and chilled desserts while maintaining optimal freshness.

Equipped with an inverter compressor and R290 refrigerant, the unit delivers energy-efficient, eco-friendly performance. Its advanced forced air circulation system, featuring a rear air outlet and front air inlet, ensures uniform temperature distribution across all display levels, minimizing thermal variation and preserving product quality.

The cabinet is constructed with AISI 304 stainless steel for superior hygiene and durability, while the double-glazed Low-E anti-fog glass guarantees crystal-clear visibility even in high-humidity environments. Combined with EC fans, intelligent controls, and easy maintenance features, this display case is built for continuous, high-performance commercial use.

 Features

  • Precise Temperature Control (-2°C to +5°C)
    Ensures consistent freshness for cakes and chilled desserts
  • Advanced Airflow Distribution System
    Rear-outlet & front-inlet design for uniform cooling across all layers
  • Energy-Efficient Operation
    Inverter compressor + EC fans, only 12.1 kWh/24h
  • Premium Display Performance
    Three-layer structure with Low-E anti-fog glass for maximum visibility
  • Smart & Low-Maintenance Design
    Natural defrost, removable filter, RS485 remote monitoring support

Technical Specifications

Category Specification
Model YCA-RA180R3-E
Temperature Range -2°C to +5°C
Cooling Type Air-cooled (forced air circulation)
Refrigerant R290
Compressor Inverter compressor
Fan System EC evaporator fan + EC condenser fan
Defrost System Natural defrost (no drain required)
External Material SUS304 stainless steel
Internal Material AISI 304 stainless steel
Glass Type Double-layer Low-E anti-fog glass
Door Type Sliding glass door with self-closing
Lighting 6× LED lights (4000K / 5000K, replaceable)
Lighting Control Independent switch
Effective Volume 750L
Display Area 1.8 m²

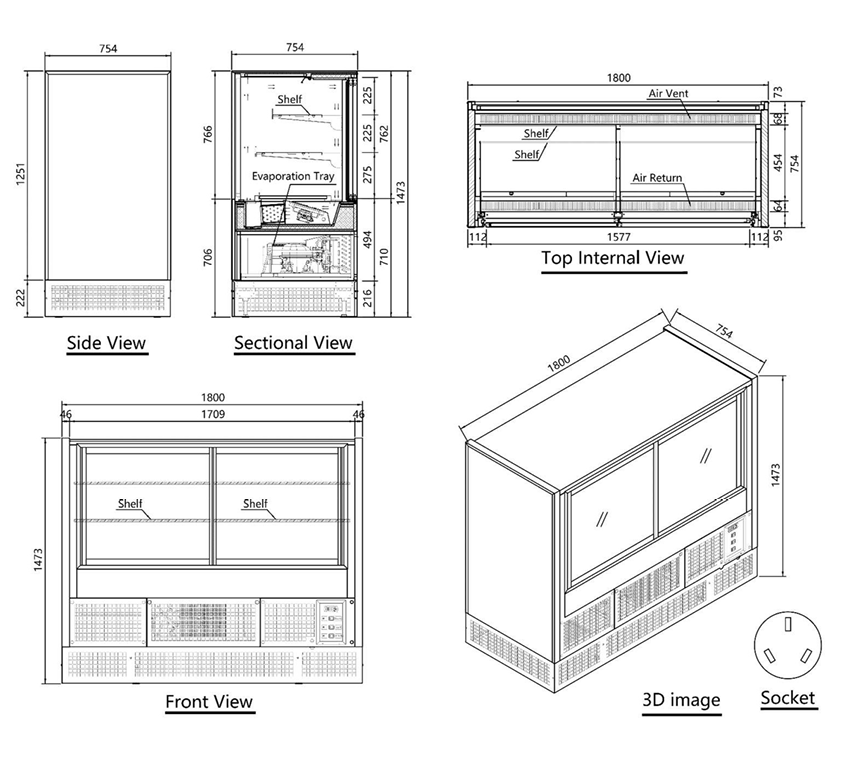

External Dimensions (W×D×H) 1800 × 754 × 1473 mm
Internal Dimensions (W×D×H) 1650 × 610 × 745 mm
Top Shelf Size 1650 × 293 mm
Middle Shelf Size 1650 × 393 mm
Bottom Shelf Size 1650 × 428 mm
Power Supply 220–240V AC / 50–60 Hz
Rated Power 580W
Rated Current 3.72A
Energy Consumption (24h) 12.1 kWh
Annual Energy Consumption 4416 kWh
Net Weight / Gross Weight 275 kg / 302 kg
Climate Class 3
Test Standard ISO 23953-2

Applications

  • Bakery & Patisserie Shops – Ideal for high-volume cake and dessert display
  • Cafés & Beverage Chains – Enhances product visibility and sales appeal
  • Hotels & Buffets – Professional dessert presentation with stable cooling
  • Supermarkets & Retail Stores – Reliable refrigeration for packaged desserts
  • Luxury Dessert Boutiques – Premium display with high transparency and lighting

FAQ

Q1: What products is this display case best suited for?
It is ideal for cakes, pastries, mousse, and other chilled desserts requiring stable low temperatures.

Q2: How does the airflow system improve performance?
The rear-outlet/front-inlet airflow ensures even cold air distribution, reducing temperature differences between shelves.

Q3: Is the unit energy efficient despite its large size?
Yes. With an inverter compressor and EC fans, it maintains efficient operation at 12.1 kWh/24h.

Q4: Will condensation affect product visibility?
No. The Low-E double-glazed glass prevents fogging and maintains clear visibility.

Q5: Does the unit require drainage for defrosting?
No. It uses a natural defrost system with an evaporating tray, eliminating external drainage needs.

Q6: Can it be integrated into smart systems?
Yes. It supports RS485 communication with ModBus protocol for remote monitoring and control.
