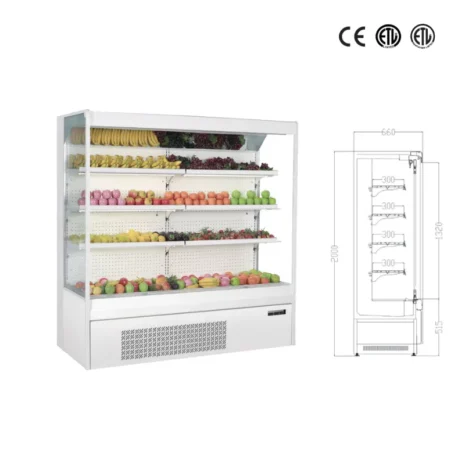

660mm Wide Upright Fruit and Vegetable Cooler
Highlights
- 660 mm deep upright refrigerated produce display
- Frost-free ventilated cooling; no manual defrosting required
- Trapezoidal air curtain for efficient cold-air distribution
- Copper-aluminum fin evaporator
- High-efficiency compressor options: Embraco or Secop
- Electronic temperature controller
- Built-in magnetic LED light for convenient maintenance
- Adjustable shelves for flexible product display
- Double-layer tempered-glass side panels
- Magnetic front panel designed for easier servicing and water drainage
- Self-retracting night blind helps reduce energy loss
- Clip-on fan base for maintenance access
- Movable feet for easier positioning
- Optional cabinet color, steel material and thickness, lighting, side shelves, and bottom support
The BLF-766 to BLF-2066 series is designed to keep fresh produce visible, organized, and chilled in supermarkets and grocery stores. Each 660 mm deep upright cabinet uses a frost-free ventilated cooling system, a trapezoidal air curtain, and a copper-aluminum fin evaporator to support consistent cooling across the display. Adjustable shelves, double-layer tempered-glass side panels, magnetic LED lighting, and a self-retracting night blind help present fruits and vegetables clearly while supporting day-to-day operation. Choose from five widths, with capacities from 260 to 720 liters. Custom cabinet colors, material and steel thickness, lighting, side shelves, and bottom supports are available options.
Highlights
- 660 mm deep upright refrigerated produce display
- Frost-free ventilated cooling; no manual defrosting required
- Trapezoidal air curtain for efficient cold-air distribution
- Copper-aluminum fin evaporator
- High-efficiency compressor options: Embraco or Secop
- Electronic temperature controller
- Built-in magnetic LED light for convenient maintenance
- Adjustable shelves for flexible product display
- Double-layer tempered-glass side panels
- Magnetic front panel designed for easier servicing and water drainage
- Self-retracting night blind helps reduce energy loss
- Clip-on fan base for maintenance access
- Movable feet for easier positioning
- Optional cabinet color, steel material and thickness, lighting, side shelves, and bottom support
Specifications
| Specification | BLF-766 | BLF-1066 | BLF-1366 | BLF-1566 | BLF-2066 |
|---|---|---|---|---|---|
| Product dimensions (W × D × H) | 685 × 660 × 2000 mm | 1000 × 660 × 2000 mm | 1310 × 660 × 2000 mm | 1500 × 660 × 2000 mm | 1940 × 660 × 2000 mm |
| Package dimensions (W × D × H) | 820 × 780 × 2155 mm | 1120 × 780 × 2155 mm | 1430 × 780 × 2155 mm | 1620 × 780 × 2155 mm | 2055 × 780 × 2155 mm |
| Capacity | 260 L | 360 L | 470 L | 540 L | 720 L |
| Display area | 0.87 m² | 1.24 m² | 1.65 m² | 1.90 m² | 2.48 m² |
| Cooling type | Ventilated | Ventilated | Ventilated | Ventilated | Ventilated |
| Temperature range | −1 to +7°C | −1 to +7°C | −1 to +7°C | −1 to +7°C | −1 to +7°C |
| Lighting | LED | LED | LED | LED | LED |
| Compressor | Embraco / Secop | Embraco / Secop | Embraco / Secop | Embraco / Secop | Embraco / Secop |
| Refrigerant | R404A / R290 | R404A / R290 | R404A / R290 | R404A / R290 | R404A / R290 |
| 40-ft GP container loading | 42 | 30 | 24 | 21 | 16 |
The chart lists alternative compressor and refrigerant options. Confirm the supplied configuration and any custom options when ordering.
Applications
Suitable for supermarkets, grocery stores, produce markets, and food retailers displaying fresh fruits, vegetables, and other chilled products.
FAQ
What is the depth of this display cabinet series?
All listed models are 660 mm deep. Widths range from 685 mm to 1940 mm.
What temperature range is specified?
The chart lists a range of −1 to +7°C for all five models.
Does the cooler require manual defrosting?
The product information describes a frost-free ventilated cooling system that does not require manual defrosting.
What are the compressor and refrigerant options?
The chart lists Embraco or Secop compressors and R404A or R290 refrigerant. Confirm the specific combination for your order.
Can the cabinet be customized?
Options listed include cabinet color, steel material and thickness, interior lighting, side shelves, and bottom support. Confirm the available configurations with the supplier.
How do I choose a model?
Compare the available width, capacity, and display area in the specifications table, then select the size that fits your store layout and product volume.
