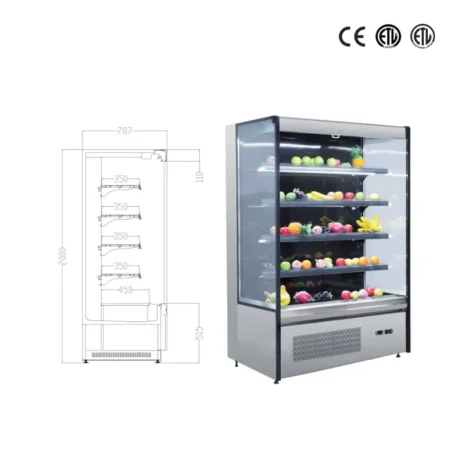

787mm Deep Supermarket Upright Refrigerated Display Cabinet

Highlights

  • Upright refrigerated display cabinet with 787 mm depth
  • Five sizes, from 700 mm to 1935 mm wide
  • Frost-free ventilated cooling system
  • Trapezoidal air curtain for more efficient cooling
  • Copper-aluminum fin evaporator
  • Embraco or Secop compressor options
  • Intelligent electronic temperature controller
  • Built-in magnetic LED lighting
  • Adjustable shelves for product display
  • Double-layer tempered-glass side panels
  • Magnetic front panel for easier servicing and water drainage
  • Self-retracting night blind helps reduce energy loss
  • Clip-on fan base for maintenance access
  • Movable feet for easier positioning
Download Datasheet

The BLF-780 to BLF-2080 series gives retailers a choice of five upright refrigerated display sizes, all with a 787 mm cabinet depth. The range is designed to keep products visible and accessible, with double-layer tempered-glass side panels, adjustable shelves, and built-in LED lighting. A frost-free ventilated system works with a trapezoidal air curtain and copper-aluminum fin evaporator to distribute chilled air through the cabinet. The magnetic front panel and clip-on fan base allow convenient access for routine care, while the self-retracting night blind helps limit cold-air loss outside business hours. Models provide 290–840 L capacity and a listed operating range of −1 to +7°C. Custom colors, steel specifications, lighting, side shelves, and bottom supports are available as options.

Highlights

  • Upright refrigerated display cabinet with 787 mm depth
  • Five sizes, from 700 mm to 1935 mm wide
  • Frost-free ventilated cooling system
  • Trapezoidal air curtain for more efficient cooling
  • Copper-aluminum fin evaporator
  • Embraco or Secop compressor options
  • Intelligent electronic temperature controller
  • Built-in magnetic LED lighting
  • Adjustable shelves for product display
  • Double-layer tempered-glass side panels
  • Magnetic front panel for easier servicing and water drainage
  • Self-retracting night blind helps reduce energy loss
  • Clip-on fan base for maintenance access
  • Movable feet for easier positioning
  • Optional cabinet color, steel material and thickness, lighting, side shelves, and bottom supports

Specifications

Specification BLF-780 BLF-1080 BLF-1380 BLF-1580 BLF-2080
Product dimensions (W × D × H) 700 × 780 × 2000 mm 997 × 787 × 2000 mm 1310 × 787 × 2000 mm 1500 × 787 × 2000 mm 1935 × 787 × 2000 mm
Package dimensions (W × D × H) 820 × 900 × 2155 mm 1120 × 900 × 2150 mm 1450 × 900 × 2155 mm 1620 × 900 × 2155 mm 2055 × 900 × 2155 mm
Capacity 290 L 420 L 550 L 630 L 840 L
Display area 0.87 m² 1.24 m² 1.65 m² 1.90 m² 2.48 m²
Cooling type Ventilated Ventilated Ventilated Ventilated Ventilated
Temperature range −1 to +7°C −1 to +7°C −1 to +7°C −1 to +7°C −1 to +7°C
Lighting LED LED LED LED LED
Compressor Embraco / Secop Embraco / Secop Embraco / Secop Embraco / Secop Embraco / Secop
Refrigerant R404A / R290 R404A / R290 R404A / R290 R404A / R290 R404A / R290
40-ft GP container loading 28 pcs 26 pcs 21 pcs 14 pcs 13 pcs

The BLF-780 dimension is listed as 700 × 780 × 2000 mm in the chart, while the other models are 787 mm deep. Confirm the BLF-780 depth and all optional configurations with the supplier.

Applications

Suitable for supermarkets, grocery stores, convenience stores, and food retailers displaying chilled produce, beverages, dairy products, and other packaged foods.

FAQ

What does 787 mm deep refer to?
It describes the cabinet depth for most models in the series. The supplied chart lists BLF-780 as 780 mm deep, so verify that model’s measurement with the supplier.

What temperature range is listed?
The chart specifies −1 to +7°C for all five models.

Does the cabinet need manual defrosting?
The product details describe a frost-free ventilated cooling system designed to avoid routine manual defrosting.

Which refrigerant and compressor are available?
The chart lists R404A or R290 refrigerant and Embraco or Secop compressor options. Confirm the configuration supplied with your order.

Can the cabinet be customized?
Options include cabinet color, steel material and thickness, interior lighting, side shelves, and bottom supports.

How do I select a model?
Compare the cabinet width, capacity, and display area in the table, then match the size to your store layout and merchandising needs.
