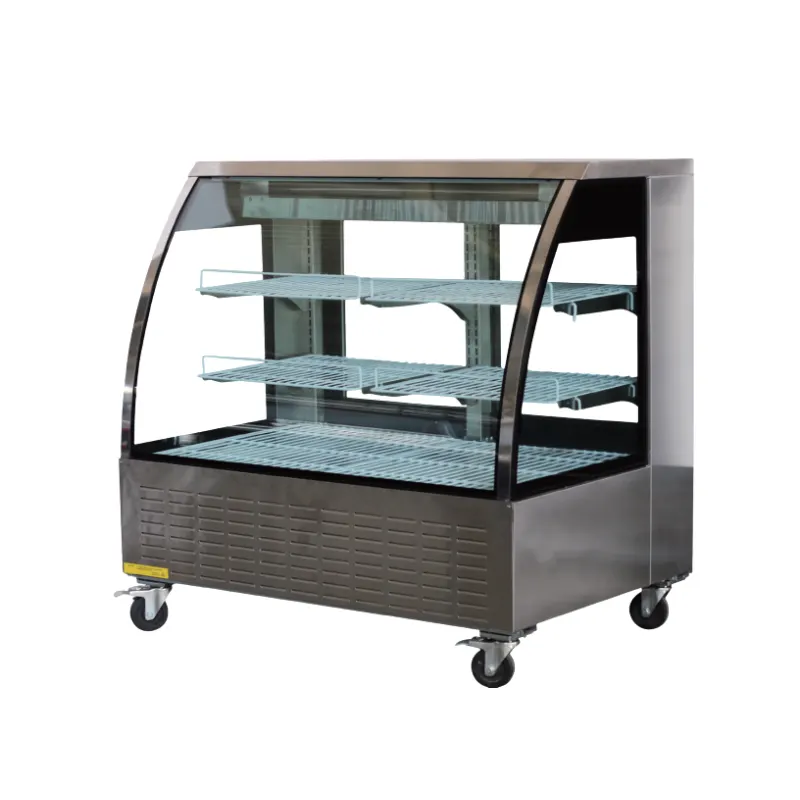

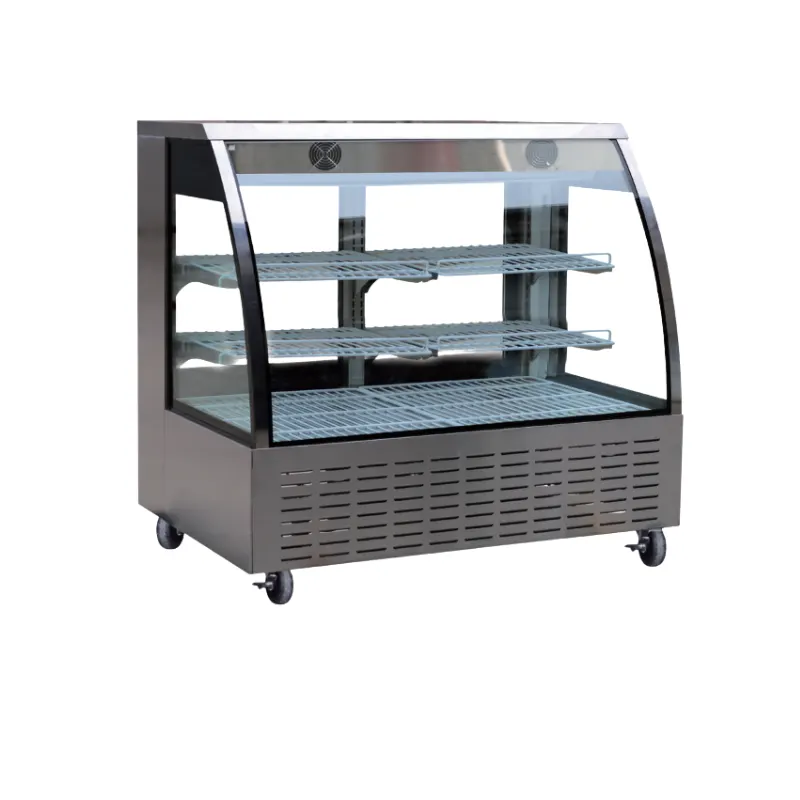

Static Cooling Service Counter Display Refrigerator

Highlights

  • Refrigerated service counter for food display and customer service
  • Stainless steel interior and exterior
  • Reinforced stainless steel side trim
  • Rounded interior corners for easier cleaning
  • Curved tempered-glass front door and tempered-glass rear sliding doors
  • Adjustable, heavy-duty PVC-coated shelves
  • Heavy-duty casters for mobility and access beneath the case
  • LED interior lighting
  • Available with static or ventilated cooling
  • Embraco compressor and R290 refrigerant
  • Listed temperature range: −2 to +8°C
Download Datasheet

The STD Series refrigerated service counter display case presents chilled foods behind tempered glass while keeping products accessible from both sides. Its stainless steel interior and exterior, reinforced stainless steel side trim, rounded interior corners, and heavy duty casters are designed for daily commercial use and easier cleaning. The curved front glass and rear sliding glass doors support clear product display and convenient service. Choose static or ventilated cooling across four widths, with LED lighting, adjustable PVC-coated shelves, an Embraco compressor, and R290 refrigerant. The listed operating range is −2 to +8°C.

  • STD-3732S Static Cooling Service Counter Display Refrigerator
  • STD-4832S Static Cooling Service Counter Display Refrigerator
  • STD-6032S Static Cooling Service Counter Display Refrigerator
  • STD-7132S Static Cooling Service Counter Display Refrigerator
  • STD-3732V Ventilated Cooling Service Counter Display Refrigerator
  • STD-4832V Ventilated Cooling Service Counter Display Refrigerator
  • STD-6032V Ventilated Cooling Service Counter Display Refrigerator
  • STD-7132V Ventilated Cooling Service Counter Display Refrigerator

Highlights

  • Refrigerated service counter for food display and customer service
  • Stainless steel interior and exterior
  • Reinforced stainless steel side trim
  • Rounded interior corners for easier cleaning
  • Curved tempered-glass front door and tempered-glass rear sliding doors
  • Adjustable, heavy-duty PVC-coated shelves
  • Heavy-duty casters for mobility and access beneath the case
  • LED interior lighting
  • Available with static or ventilated cooling
  • Embraco compressor and R290 refrigerant
  • Listed temperature range: −2 to +8°C

Specifications

Specification STD-3732S / STD-3732V STD-4832S / STD-4832V STD-6032S / STD-6032V STD-7132S / STD-7132V
Product dimensions (W × D × H) 920 × 825 × 1200 mm 1200 × 825 × 1200 mm 1500 × 825 × 1200 mm 1800 × 825 × 1200 mm
Package dimensions (W × D × H) 980 × 890 × 1250 mm 1260 × 890 × 1250 mm 1560 × 890 × 1250 mm 1860 × 890 × 1250 mm
Display area 1.2 m² / 12.92 ft² 1.4 m² / 15.07 ft² 1.63 m² / 17.55 ft² 1.85 m² / 19.91 ft²
Capacity 205 L / 7.24 ft³ 265 L / 9.36 ft³ 335 L / 11.83 ft³ 400 L / 14.13 ft³
Cooling type Static or ventilated Static or ventilated Static or ventilated Static or ventilated
Temperature range −2 to +8°C −2 to +8°C −2 to +8°C −2 to +8°C
Lighting LED LED LED LED
Compressor Embraco Embraco Embraco Embraco
Refrigerant R290 R290 R290 R290
40-ft GP container loading 52 units 44 units 26 units 26 units

Model suffix “S” indicates static cooling; “V” indicates ventilated cooling, based on the supplied charts. Verify model-specific configurations and specifications with the supplier before ordering.

Applications

Suitable for bakeries, cafés, restaurants, delis, sandwich shops, supermarkets, and catering counters that need refrigerated food display and service access.

FAQ

What is the difference between the S and V models?
The charts list static cooling for “S” models and ventilated cooling for “V” models.

What temperature range is specified?
The listed operating range is −2 to +8°C.

What materials are used for the cabinet?
The supplied product information specifies stainless steel inside and out, with stainless steel side trim.

Are the front and rear doors glass?
Yes. The product information describes a curved tempered-glass front door and rear sliding tempered-glass doors.

Can the shelves be adjusted?
Yes. The shelves are described as adjustable and PVC-coated.

Does the case have wheels?
The product information specifies heavy-duty casters for moving the case and cleaning underneath.

What widths and capacities are available?
The four sizes range from 920 mm to 1800 mm wide, with listed capacities from 205 L to 400 L. Refer to the table for model details.
