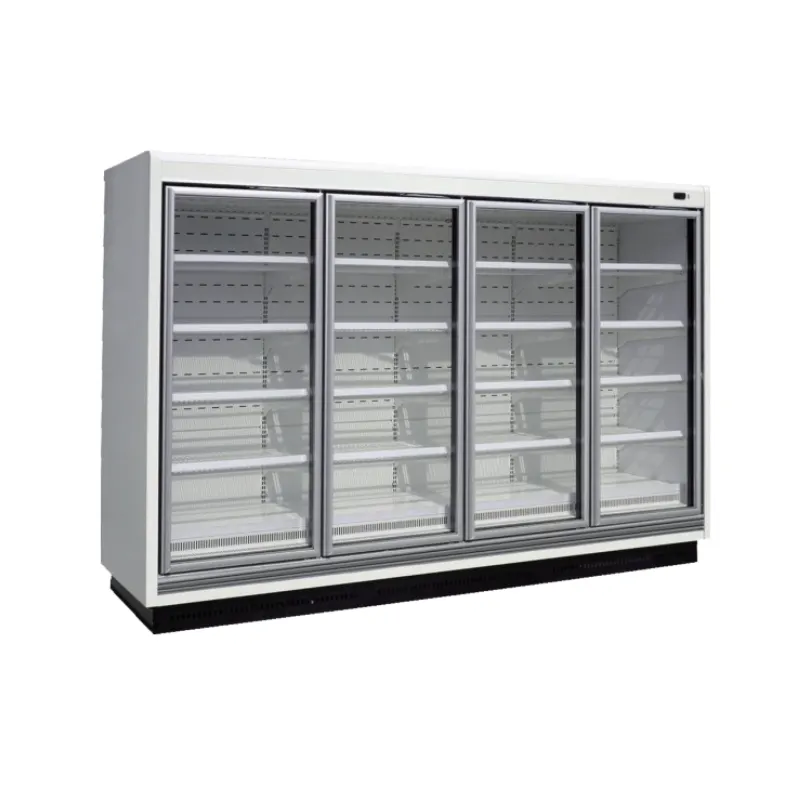

The 918mm Series Remote Upright Glass Door Freezer Display Cabinet is designed for supermarkets, hypermarkets, frozen-food retailers and other commercial environments that require large-volume frozen storage with clear product visibility.

Operating from -18°C to -22°C, the series is built for low-temperature merchandising of frozen meat, seafood, prepared foods, frozen vegetables, desserts and other products requiring commercial freezer conditions.

The cabinet uses triple-layer coated tempered glass doors with electric heating, helping reduce condensation and frost on the viewing surface while maintaining clear product presentation.

A remote refrigeration system, enlarged copper-aluminum fin evaporator, EBM fan system and CAREL electronic control work together to deliver stable forced-air cooling throughout the cabinet. TPU dividers help reduce unnecessary cold-air loss between sections and support improved refrigeration efficiency.

Six models are available, offering effective capacities from 1860L to 3500L, with standard and high versions for different supermarket layouts.

Features

Triple-Layer Heated Glass Doors

The cabinet uses triple-layer coated tempered glass doors with electric heating.

This construction provides enhanced insulation for low-temperature operation and helps reduce condensation and frosting on the glass surface.

The heated door design also keeps frozen products more clearly visible to customers.

Low-Temperature Freezer Performance

The cabinet operates within a temperature range of -18°C to -22°C, making it suitable for commercial frozen-food merchandising.

Remote Refrigeration System

The freezer cabinet is designed for remote refrigeration installations.

The condensing equipment can be installed separately from the display unit, making the series suitable for centralized supermarket refrigeration projects.

918mm Deep Cabinet

The 918 mm cabinet depth provides substantial internal loading capacity for frozen products.

This deeper structure makes the range particularly suitable for high-volume frozen-food departments.

Enlarged Copper-Aluminum Fin Evaporator

The enlarged finned evaporator increases the heat-exchange surface area and supports stable low-temperature refrigeration.

Forced-Air Cooling

EBM fans circulate cold air throughout the cabinet, helping maintain consistent temperatures across multiple shelf levels.

Trapezoidal Airflow Design

The optimized airflow structure helps guide cold air through the refrigerated compartment and improve overall cooling performance.

TPU Dividers

Built-in TPU dividers help separate refrigerated sections and reduce unnecessary cold-air loss.

This can improve internal airflow management and support more efficient freezer operation.

Adjustable Display Shelves

Shelf heights can be adjusted according to product dimensions, allowing flexible merchandising of different frozen product categories.

LED Top Lighting

Built-in LED lighting improves product visibility.

Optional shelf LED lighting can be added to highlight merchandise at individual display levels.

Solenoid Valve and Filtration

A solenoid valve is included as standard, while additional filtration helps protect the refrigeration circuit and reduce maintenance frequency.

Top-Pipe Installation Design

Upper piping access helps simplify refrigeration connections during commercial installation.

Adjustable Feet

Adjustable leveling bolts help installers position the freezer accurately on commercial floors.

Technical Specifications

*The supplied product description mentions R404A / R744, while the current specification table lists R404A. Confirm R744 availability according to the final project configuration.

**The source table does not specify the unit for cooling capacity. Confirm whether these values are in watts before publishing.

Model Options

CLG-2392F – 1860L

The CLG-2392F provides 1860L effective capacity and a 2.57 m² display area.

It is suitable for medium-sized frozen-food departments requiring a large refrigerated footprint without moving to the widest cabinet format.

CLG-2392FH – 2050L

The taller CLG-2392FH increases cabinet height to 2180 mm, expanding capacity to 2050L and display area to 2.81 m².

CLG-3092F – 2540L

With a cabinet width of 3100 mm, the CLG-3092F provides 2540L capacity for higher-volume supermarket frozen sections.

CLG-3092FH – 2800L

The high version increases vertical storage space, reaching 2800L effective capacity and a 3.74 m² display area.

CLG-3892F – 3170L

The CLG-3892F offers 3170L effective capacity and 4.28 m² of display space for large frozen-food departments.

CLG-3892FH – 3500L

The CLG-3892FH is the largest model in the series, providing 3500L capacity and a 4.68 m² display area.

Application

Supermarket Frozen Food Sections

The high-capacity cabinet is suitable for large frozen-food departments where products need to remain visible and easily organized.

Typical merchandise includes frozen vegetables, frozen meat and prepared meals.

Frozen Meat Display

The -18°C to -22°C operating range makes the cabinet suitable for frozen meat products when their required storage conditions match the cabinet specification.

Frozen Seafood

The cabinet can be used for packaged frozen fish, shrimp, shellfish and other frozen seafood products.

Ice Cream and Frozen Desserts

The heated glass doors help maintain visibility of frozen desserts and ice cream products in customer-facing displays.

Frozen Ready Meals

Adjustable shelves allow efficient merchandising of boxed meals, pizzas, dumplings and other packaged frozen foods.

Hypermarkets

The larger CLG-3092 and CLG-3892 models provide extensive frozen merchandising capacity for high-traffic stores.

Retail Chain Projects

Standard and high versions allow retailers to adapt the same freezer family to different store sizes and ceiling heights.

Central Refrigeration Systems

The remote refrigeration configuration is well suited to supermarket projects using centralized low-temperature refrigeration equipment.

Why Use Triple-Layer Heated Glass Doors?

Low-temperature freezer cabinets face greater condensation and frost challenges than normal refrigerated cabinets.

Triple-layer coated glass improves thermal insulation, while electric heating helps keep the outer glass surface clearer.

This provides several practical benefits:

• Better product visibility
• Reduced condensation
• Reduced glass frosting
• Improved customer viewing
• Better thermal separation
• More professional merchandising appearance

For commercial frozen-food display, this is a major difference compared with standard refrigerator doors.

Role of TPU Dividers

The freezer cabinet also incorporates TPU dividers between sections.

These dividers help control cold-air movement inside the cabinet and reduce unnecessary transfer between merchandising zones.

In a large upright freezer, better separation can support:

• Reduced cold-air loss
• More controlled airflow
• Improved section organization
• More efficient low-temperature operation

This is especially valuable in wide supermarket freezer installations.

Standard vs. FH Models

The FH models use the same cabinet width and depth as the corresponding F versions but increase cabinet height from 2030 mm to 2180 mm.

For example:

CLG-2392F: 1860L / 2.57 m²
CLG-2392FH: 2050L / 2.81 m²

CLG-3092F: 2540L / 3.42 m²
CLG-3092FH: 2800L / 3.74 m²

CLG-3892F: 3170L / 4.28 m²
CLG-3892FH: 3500L / 4.68 m²

The taller configuration is useful when retailers want more frozen merchandising space without increasing cabinet floor width.

FAQ

1. What is the operating temperature of this freezer?

The specified operating temperature range is -18°C to -22°C.

2. Is this a refrigerator or a freezer?

This CLG-F series is a commercial freezer display cabinet designed specifically for frozen merchandise.

3. What type of glass doors are used?

The freezer uses triple-layer coated tempered glass doors with electric heating.

4. Why are the freezer doors heated?

The electric heating helps reduce condensation and frost on the glass, keeping merchandise more clearly visible.

5. What capacities are available?

The series provides effective capacities from 1860L to 3500L.

6. What is the difference between F and FH models?

FH versions are taller.

F models are 2030 mm high, while FH models are 2180 mm high and provide more internal capacity and display area.

7. Is this a remote freezer?

Yes. The cabinet is designed for connection to a remote refrigeration system.

8. What type of cooling system does it use?

The freezer uses forced-air or fan cooling with EBM fans.

9. What controller is used?

The supplied specification lists CAREL temperature controllers.

10. What refrigerant is specified?

The technical table lists R404A. The product description also mentions R744, which should be confirmed according to the final system configuration.

11. What is the purpose of the TPU divider?

The TPU divider helps reduce cold-air loss between sections and supports better airflow management inside the cabinet.

12. Are the shelves adjustable?

Yes. Shelf heights can be changed according to frozen product size and packaging.

13. Does the cabinet include LED lighting?

Yes. LED top lighting is included, with optional shelf LED lighting available.

14. What products can be displayed?

Typical applications include frozen meat, seafood, vegetables, ready meals, ice cream, frozen desserts and other products compatible with the specified freezer temperature.

15. Which is the largest model?

The CLG-3892FH is the largest configuration, providing 3500L effective capacity and a 4.68 m² display area.
