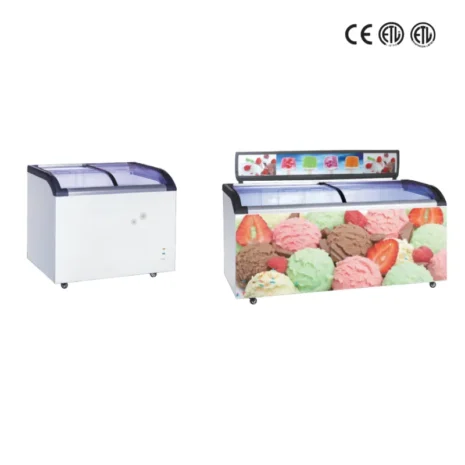

SD-Q Series Commercial Curved Glass Sliding Lid Chest Freezer

The Realmann SD-Q Commercial Curved Glass Sliding Lid Chest Freezer Series is designed for frozen food storage and customer-facing merchandising in supermarkets, convenience stores, grocery outlets, and frozen dessert retail locations. Available in six models with usable capacities ranging from 180L to 615L, the series combines a horizontal display layout with curved sliding glass lids for convenient product access.

Unlike upright glass door freezers, the SD-Q Series uses a direct cooling system and a chest-style cabinet, allowing frozen products to be arranged in removable storage baskets beneath a transparent sliding glass top.

The new curved glass lid design provides a clear view of packaged frozen foods while allowing customers to slide open the cabinet for product selection. A 70mm thick insulation layer helps reduce heat transfer through the cabinet body, supporting frozen storage at a specified temperature of −18°C or below under rated operating conditions.

For merchandising flexibility, the series includes two to seven reinforced food baskets depending on the selected model. Built-in LED lighting helps illuminate the cabinet interior, improving visibility of ice cream, frozen vegetables, packaged meat, and other compatible frozen products.

The freezer features an electrostatically coated exterior cabinet, aluminum alloy front and rear rim profiles, and a seven-position adjustable mechanical thermostat. A main power indicator provides a convenient visual indication of the electrical supply.

A bottom-mounted defrost drain outlet supports water removal during cleaning and manual defrosting. Two fixed-direction wheels and two swivel casters facilitate positioning and movement during retail installation.

Optional electronic temperature control and a rear advertising light box are available for buyers seeking additional control features or branded freezer displays.

As a commercial chest freezer manufacturer, Realmann supports OEM/ODM and wholesale inquiries for frozen food distributors, supermarket equipment suppliers, and ice cream merchandising projects.

Key Features & Benefits

1. Curved Sliding Glass Lids for Easy Product Access

The SD-Q Series features a newly designed curved sliding glass lid, providing a clear overhead view of frozen merchandise.

Customers can slide the lid open to access products without requiring the outward opening clearance of a hinged door.

The curved glazing creates an attractive display profile suitable for supermarkets, ice cream retail areas, and self-service frozen food sections.

2. 70mm Thick Cabinet Insulation

The freezer incorporates a 70mm thick insulation layer within the cabinet structure.

This insulation helps reduce heat transfer between the frozen interior and the surrounding environment, supporting low-temperature storage.

Actual energy consumption depends on the complete refrigeration system, ambient conditions, product loading, and frequency of customer access.

3. Direct Cooling System for Frozen Storage

The freezer uses a direct cooling system rather than fan-forced air circulation.

Cooling is transferred through the cabinet’s refrigeration surfaces, supporting frozen storage at a specified temperature of −18°C or below.

As with other static cooling systems, periodic manual defrosting may be necessary depending on frost accumulation and operating conditions.

4. Six Usable Capacity Options from 180L to 615L

The SD-Q Series includes six models for different merchandising requirements.

This range allows buyers to select compact freezers for smaller shops or wider cabinets for supermarket frozen food aisles.

5. Seven-Position Mechanical Temperature Control

Each model is equipped with a seven-position adjustable mechanical thermostat.

Operators can select the control setting according to the required freezing conditions and product storage requirements.

An electronic temperature controller is available as an optional configuration.

6. Reinforced Food Storage Baskets

The freezer includes reinforced food baskets designed to support organized product placement.

Depending on the selected model, two to seven baskets are provided as standard.

These baskets help separate frozen products by type, brand, or package size, making stock organization and replenishment more convenient.

7. Built-In LED Interior Lighting

An integrated LED lighting system is included as standard.

The lighting helps illuminate products stored beneath the glass lids, making it easier for customers to identify merchandise and for staff to manage stock.

8. Durable Electrostatic-Coated Exterior

The cabinet exterior features an electrostatic powder-coated finish.

Aluminum alloy rim profiles at the front and rear provide a practical cabinet edge structure suitable for everyday commercial use.

This construction supports a clean appearance and routine maintenance in retail environments.

9. Convenient Bottom Defrost Drain

A drain outlet positioned near the cabinet bottom facilitates water removal during defrosting and cleaning.

This helps simplify maintenance compared with cabinets that require water to be removed manually from the interior.

The drain should be used in accordance with the manufacturer’s operating instructions.

10. Four-Wheel Mobility Configuration

The freezer incorporates two fixed-direction wheels and two swivel casters.

This arrangement supports directional movement and maneuverability during installation, cleaning, and store layout adjustments.

11. Optional Electronic Control and Rear Light Box

For commercial projects requiring additional features, the SD-Q Series offers an optional electronic temperature controller and a rear-mounted illuminated advertising panel.

These options can be considered for branded frozen food and ice cream merchandising programs.

Technical Specifications

SD-220Q / SD-320Q / SD-420Q

SD-520Q / SD-620Q / SD-720Q

Additional Product Specifications

All model dimensions, usable capacities, basket quantities, refrigerant options and container loading quantities are based on the supplied technical sheet. R134a and R290 represent alternative refrigerant configurations, not simultaneous use. Electrical ratings, energy consumption and freezer pull-down times have not been specified.

Commercial Applications

1. Supermarket Frozen Food Islands

The SD-Q Series provides horizontal refrigerated merchandising suitable for supermarket frozen food areas.

Its curved sliding glass lids allow customers to browse frozen products from above, while removable baskets help organize stock and separate product categories.

The larger SD-620Q and SD-720Q models offer expanded capacity for higher-volume retail environments.

2. Ice Cream and Frozen Dessert Retail

The series can be used for packaged ice cream and frozen desserts when the selected operating temperature meets the products’ storage requirements.

The transparent curved lids improve product visibility, while the optional rear light box can support branded promotional displays.

3. Convenience Store Frozen Food Sections

The SD-220Q and SD-320Q offer smaller horizontal freezer configurations for convenience stores and neighborhood grocery shops.

These models provide frozen merchandising capacity without requiring the width of larger display cabinets.

4. Packaged Frozen Meat and Seafood Displays

The SD-Q Series can support suitably packaged frozen meat and seafood products that require storage at −18°C or below.

Removable food baskets help separate products and support convenient stock organization.

All products should be stored according to applicable food safety regulations and their individual temperature requirements.

5. Frozen Food Distributor and Promotional Programs

Frozen food manufacturers and distributors can use the series for customer-facing retail placement programs.

With an optional rear illuminated light box and electronic temperature control, the freezers can be configured for different merchandising and operating requirements.

OEM/ODM Customization Options

Realmann offers commercial refrigeration manufacturing support for wholesalers, supermarket equipment distributors, and frozen food brand projects.

Buyers can discuss available configurations, minimum order quantities, branding requirements and shipping arrangements with Realmann.

Frequently Asked Questions (FAQ)

Q1: What is a curved glass sliding lid chest freezer?

A curved glass sliding lid chest freezer is a horizontal commercial freezer with a transparent curved glass top.

The sliding lids allow customers to view frozen merchandise and access products without lifting a hinged cover.

This type of freezer is commonly used for packaged frozen food and ice cream merchandising.

Q2: What is the temperature range of the SD-Q Series?

All six models are specified for frozen storage at −18°C or below under rated conditions.

Actual cabinet temperatures depend on thermostat settings, ambient temperature, product loading and operating conditions.

Q3: What is the difference between direct cooling and fan-forced cooling?

Direct cooling transfers heat through refrigerated cabinet surfaces without relying on an internal fan to circulate cold air.

Fan-forced cooling uses a fan to distribute refrigerated air through the cabinet.

Direct-cooled chest freezers may require periodic manual defrosting when frost accumulates.

Q4: How thick is the insulation in the SD-Q Series?

The cabinet uses 70mm thick insulation.

The insulation helps limit heat transfer into the freezer and supports low-temperature storage, although actual energy efficiency depends on the complete refrigeration system.

Q5: How many storage baskets are included?

The basket quantity depends on the model:

• SD-220Q: 2 baskets

• SD-320Q: 3 baskets

• SD-420Q: 4 baskets

• SD-520Q: 5 baskets

• SD-620Q: 6 baskets

• SD-720Q: 7 baskets

Q6: Can the temperature be adjusted?

Yes. The standard freezer features a seven-position mechanical thermostat.

An electronic temperature controller is also available as an option.

The numbered mechanical settings should not be treated as exact temperatures without calibration data.

Q7: Is LED lighting included?

Yes. Built-in LED lighting is a standard feature across the series.

It helps illuminate the interior and improves visibility of frozen merchandise through the glass lids.

Q8: What refrigerant options are available?

The supplied specifications list R134a and R290 refrigerant configurations.

The selected refrigerant should be confirmed before ordering according to equipment design and destination-market requirements.

R290 is flammable and requires appropriate safety provisions.

Q9: Does the freezer have a defrost drain?

Yes. A bottom-mounted defrost drain outlet allows collected water to be removed during manual defrosting and cleaning.

Q10: Can the freezer be moved easily?

The standard configuration includes two fixed-direction wheels and two swivel casters, allowing the cabinet to be positioned during installation and cleaning.

Q11: Can a rear advertising light box be added?

Yes. A rear illuminated light box is available as an optional feature.

It may be useful for frozen food brands, ice cream distributors, and retail promotional projects.

Q12: What is the largest model in the SD-Q Series?

The SD-720Q offers the largest usable capacity at 615L.

Its dimensions are 2000 × 675 × 850 mm, and it includes seven storage baskets.

Q13: Does Realmann support wholesale and OEM/ODM production?

Yes. Realmann accepts inquiries for commercial chest freezer wholesale and OEM/ODM projects.

Buyers can discuss model sizes, controller options, light boxes, refrigerant configurations and order quantities.
