Glass-Door Mini Cake Display Refrigerator
Highlights
- Compact mini cake and dessert display cabinet
- Ventilated cooling system
- Embraco refrigeration unit
- Copper-aluminum fin evaporator
- Electronic digital temperature controller by Dixell
- Three-sided double-layer insulated glass for product visibility
- Movable feet for easier positioning
- Clip-on fan base for convenient service access
- R290 refrigerant
- Chilled models operate at 2–8°C (35–46°F)
- Frozen dessert model operates at −18 to −15°C (−0.4 to 5°F)
The STP0809 series brings a compact, glass-sided display to bakeries, cafés, and dessert counters where presentation matters. Each model offers 87 L of capacity and 1.21 m² of display area, with ventilated cooling, an Embraco refrigeration unit, a copper-aluminum fin evaporator, and a Dixell digital controller. Double-layer insulated glass on three sides provides a clear view of cakes and desserts. Choose the STP0809C or glass-door STP0809CG for chilled products, or the STP0809FG for frozen treats. Movable feet and a clip-on fan base support flexible placement and easier maintenance.
Highlights
- Compact mini cake and dessert display cabinet
- Ventilated cooling system
- Embraco refrigeration unit
- Copper-aluminum fin evaporator
- Electronic digital temperature controller by Dixell
- Three-sided double-layer insulated glass for product visibility
- Movable feet for easier positioning
- Clip-on fan base for convenient service access
- R290 refrigerant
- Chilled models operate at 2–8°C (35–46°F)
- Frozen dessert model operates at −18 to −15°C (−0.4 to 5°F)
Specifications
| Specification | STP0809C | STP0809CG (Glass Door) | STP0809FG |
|---|---|---|---|

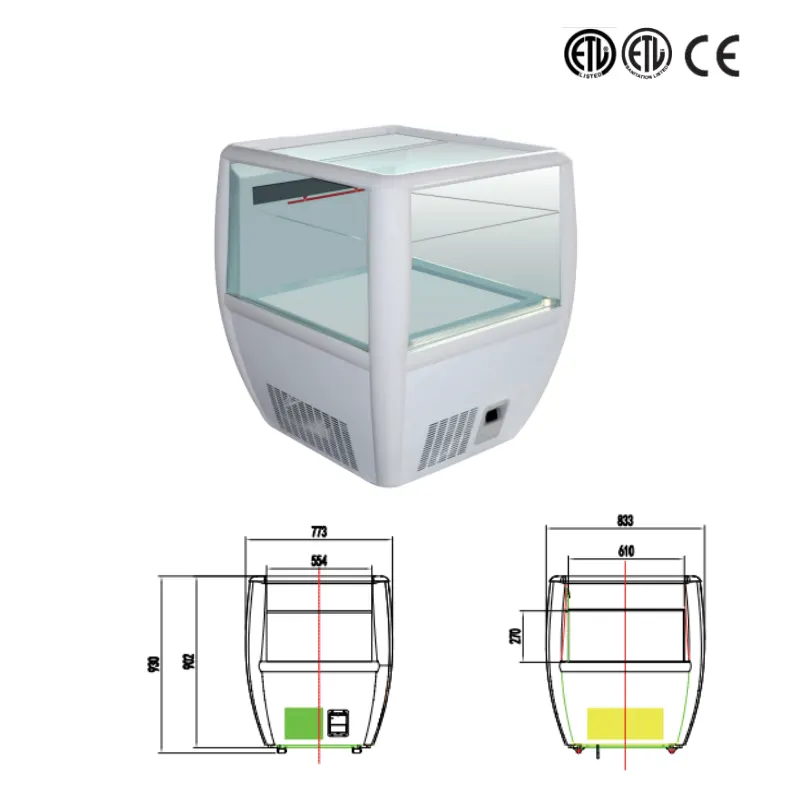

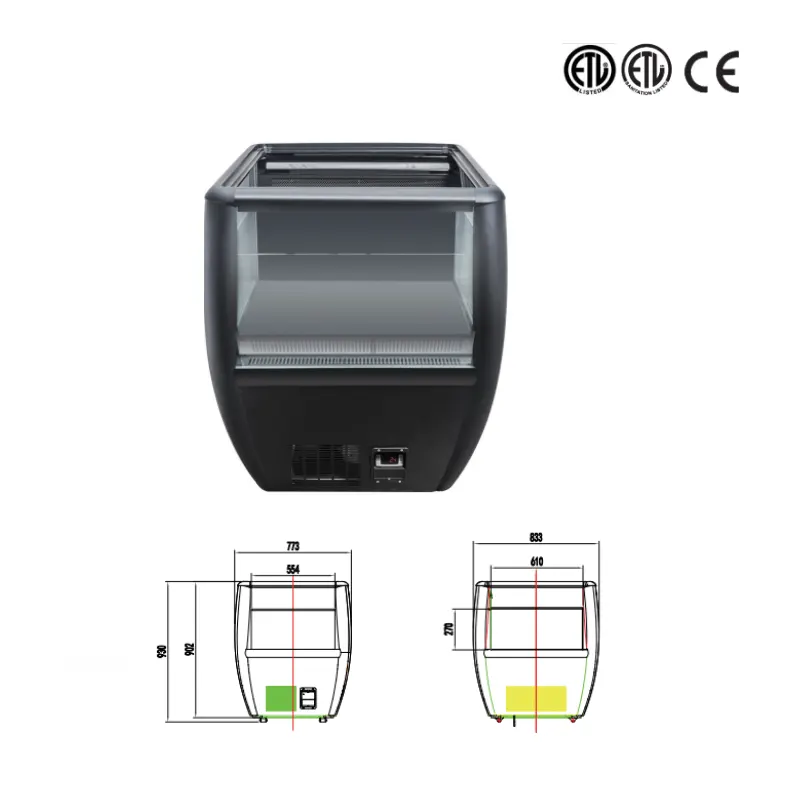

| Product dimensions (W × D × H) | 772 × 833 × 930 mm | 772 × 833 × 930 mm | 772 × 833 × 930 mm |
| Product dimensions (W × D × H) | 30 25/64 × 32 51/64 × 36 39/64 in | 30 25/64 × 32 51/64 × 36 39/64 in | 30 25/64 × 32 51/64 × 36 39/64 in |
| Package dimensions (W × D × H) | 860 × 920 × 1104 mm | 860 × 920 × 1104 mm | 860 × 920 × 1104 mm |
| Capacity | 87 L / 3.07 ft³ | 87 L / 3.07 ft³ | 87 L / 3.07 ft³ |
| Display area | 1.21 m² / 13.02 ft² | 1.21 m² / 13.02 ft² | 1.21 m² / 13.02 ft² |
| Cooling type | Ventilated | Ventilated | Ventilated |
| Temperature range | 2–8°C / 35–46°F | 2–8°C / 35–46°F | −18 to −15°C / −0.4 to 5°F |
| Refrigerant | R290 | R290 | R290 |
| Compressor | Embraco | Embraco | Embraco |
| Temperature controller | Dixell | Dixell | Dixell |
| 40-ft GP container loading | 56 units | 56 units | 56 units |
Applications
Suitable for bakeries, patisseries, cafés, dessert shops, restaurants, and hotel counters displaying cakes, pastries, chilled desserts, or frozen treats. Choose the chilled models for refrigerated products and the STP0809FG for frozen desserts.
FAQ
What is the difference between the three models?
The STP0809C and STP0809CG are listed for chilled display at 2–8°C. The STP0809CG is identified as the glass-door model. The STP0809FG is designed for frozen dessert display at −18 to −15°C.
How much can the display hold?
Each model has a listed capacity of 87 L and a display area of 1.21 m².
What cooling and refrigeration components are specified?
The charts list ventilated cooling, an Embraco compressor, a copper-aluminum fin evaporator, R290 refrigerant, and a Dixell digital temperature controller.
Are the sides made of glass?
The product information describes double-layer insulated glass on three sides for clear product visibility.
Can the cabinet be repositioned?
Movable feet are listed to help with placement. Confirm the exact foot configuration with the supplier.
How is maintenance access provided?
The clip-on fan base is designed to make access for maintenance easier.
