232L–529L Commercial Low-Profile Island Display Freezer
Features
-
Low-Profile Island Freezer Design: Horizontal frozen food display cabinet with 880mm height and sliding glass lids.
-
232L–529L Usable Capacity: Four models with display areas from 0.87 m² to 1.98 m².
-
R290 Static Refrigeration: Commercial frozen storage from −18°C to −22°C with Donper or GMCC compressor options.
-
Integrated Insulated Cabinet: Fine-cell foaming construction, aluminum alloy edging, and practical dual drainage.
-
Retail-Friendly Configuration: Standard storage baskets, anti-rodent machinery protection, and enlarged resin casters.

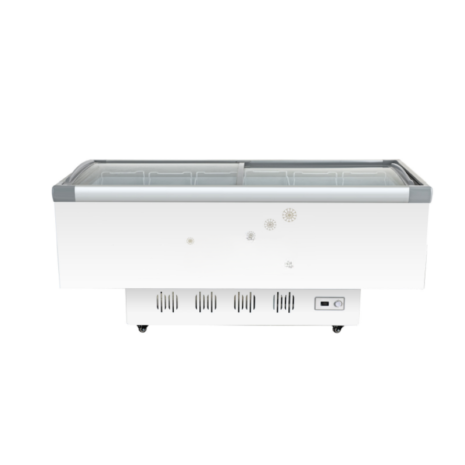

The Realmann SDG-N Commercial Low-Profile Island Display Freezer Series is designed for frozen food merchandising in supermarkets, grocery stores, retail chains, and self-service frozen food sections. Available in four models—SDG-1500N, SDG-1800N, SDG-2000N, and SDG-2500N—the series provides usable capacities ranging from 232L to 529L while maintaining a consistent cabinet height of 880 mm.
A defining feature of the SDG-N Series is its low-profile horizontal cabinet design, allowing retailers to present frozen merchandise in a display format that can be incorporated into supermarket aisles and promotional freezer areas.
The freezer features coated tempered glass sliding lids with left-right opening access. This arrangement allows shoppers to view packaged frozen merchandise from above and retrieve products without lifting a hinged cover. Aluminum alloy edging provides a practical frame around the glass opening.
The refrigeration system uses R290 refrigerant with direct cooling technology, supporting a specified operating temperature range of −18°C to −22°C. Donper or GMCC compressor configurations are available, together with digital or mechanical temperature controller options.
The cabinet uses integrated foamed insulation with a thickened, fine-cell foam structure. This helps limit heat transfer through the cabinet walls and supports the freezer’s low-temperature operating requirements.
Inside the cabinet, a pre-coated lining provides a practical surface for routine cleaning. Four or six storage baskets are supplied depending on the model, helping retailers organize different frozen food categories.
For everyday operation, the freezer incorporates drainage provisions at the cabinet rim and inside the storage compartment. Anti-rodent protection around the machinery compartment helps reduce unwanted access to internal components.
A full-length bottom base and enlarged resin casters facilitate cabinet positioning and support handling in commercial retail environments.
The SDG-N Series is supplied without standard interior lighting, making external store lighting an important consideration when planning the merchandise display.
As an OEM/ODM commercial refrigeration manufacturer, Realmann supports wholesale and project-based inquiries from supermarket equipment distributors, frozen food retailers, and international refrigeration importers.
Key Features & Benefits
1. Low-Profile Horizontal Cabinet Design
The SDG-N Series is designed with a consistent cabinet height of 880 mm across all four models.
This provides a coordinated display profile for supermarket freezer layouts, allowing retailers to select different cabinet widths while maintaining a consistent equipment height.
The design is suitable for horizontal frozen food merchandising and customer self-service access.
2. Sliding Tempered Glass Lids with Coated Surface
The freezer incorporates sliding tempered glass lids designed for convenient product viewing and access.
The glass surface includes a coating intended to reduce condensation, helping maintain merchandise visibility under suitable ambient conditions.
The left-right sliding arrangement allows customers to open the glass panels without the outward clearance required by hinged lids.
3. R290 Direct Cooling from −18°C to −22°C
The refrigeration system uses R290 refrigerant and static cooling technology.
The specified operating range of −18°C to −22°C supports suitable frozen food merchandising when actual cabinet conditions meet the products’ storage requirements.
R290 has a low global warming potential but is flammable, requiring appropriately designed equipment and suitable servicing procedures.
4. Four Capacity Options from 232L to 529L
The series includes four cabinet configurations:
| Model | Usable Capacity | Display Area |
|---|---|---|
| SDG-1500N | 232 L | 0.87 m² |
| SDG-1800N | 284 L | 1.06 m² |
| SDG-2000N | 410 L | 1.54 m² |
| SDG-2500N | 529 L | 1.98 m² |
The range allows retailers to select storage volume and display area according to available floor space and merchandising requirements.
5. Integrated Fine-Cell Foamed Insulation
The cabinet incorporates an integrally foamed insulation structure.
The product description specifies a thickened foam layer and fine-cell foaming technology intended to limit heat transfer through the cabinet body.
The exact insulation thickness and thermal conductivity have not been provided, so energy performance should be evaluated using verified manufacturer data.
6. Aluminum Alloy Edging for Sliding Glass Assembly
Aluminum alloy trim surrounds the upper glass opening.
This provides a practical edge structure for the sliding lids and contributes to the cabinet’s commercial appearance.
The trim is suitable for routine cleaning and maintenance according to the manufacturer’s instructions.
7. Donper or GMCC Compressor Options
The supplied technical specifications list Donper and GMCC compressor configurations.
These brands are available as alternatives rather than simultaneous installations.
The exact compressor model and quantity should be confirmed before ordering.
8. Digital or Mechanical Temperature Control
The SDG-N Series supports digital or mechanical temperature controller configurations.
A digital controller provides an electronic operating interface, while a mechanical controller offers a simpler adjustment arrangement.
Buyers can discuss the appropriate controller type according to their project requirements.
9. Organized Frozen Storage with Standard Baskets
The SDG-1500N and SDG-1800N include four baskets each, while the SDG-2000N and SDG-2500N include six baskets each.
These baskets help organize frozen products by category, brand, and packaging size.
They also facilitate product replenishment and stock management.
10. Dual Drainage for Cleaning and Maintenance
The cabinet incorporates drainage at the upper rim and inside the freezer compartment.
These features help manage collected water during cleaning and defrosting.
Because the refrigeration system uses static cooling, periodic manual defrosting may be necessary.
11. Anti-Rodent Machinery Compartment Protection
The machinery compartment includes protective features designed to limit rodent access.
This supports equipment protection in retail and storage environments but does not replace normal sanitation and pest-control measures.
12. Integrated Base with Enlarged Resin Casters
The freezer uses a full-length bottom base and enlarged resin casters.
This arrangement facilitates equipment movement during installation or cleaning and helps reduce handling-related damage.
Technical Specifications
SDG-1500N / SDG-1800N / SDG-2000N / SDG-2500N
| Specification | SDG-1500N | SDG-1800N | SDG-2000N | SDG-2500N |
|---|---|---|---|---|
| Product Type | Island Display Freezer | Island Display Freezer | Island Display Freezer | Island Display Freezer |
| Product Dimensions (W × D × H) | 1511 × 824 × 880 mm | 1811 × 824 × 880 mm | 2011 × 1010 × 880 mm | 2541 × 1010 × 880 mm |
| Packing Dimensions (W × D × H) | 1561 × 874 × 925 mm | 1861 × 874 × 925 mm | 2061 × 1060 × 925 mm | 2591 × 1060 × 925 mm |
| Temperature Range | −18°C to −22°C | −18°C to −22°C | −18°C to −22°C | −18°C to −22°C |
| Usable Capacity | 232 L | 284 L | 410 L | 529 L |
| Display Area | 0.87 m² | 1.06 m² | 1.54 m² | 1.98 m² |
| Cooling System | Direct / Static | Direct / Static | Direct / Static | Direct / Static |
| Standard Baskets | 4 | 4 | 6 | 6 |
| Interior Lighting | No | No | No | No |
| Compressor Brand | Donper / GMCC | Donper / GMCC | Donper / GMCC | Donper / GMCC |
| Temperature Controller | Digital / Mechanical | Digital / Mechanical | Digital / Mechanical | Digital / Mechanical |
| Refrigerant | R290 | R290 | R290 | R290 |
| 40′ HQ Loading Quantity | 30 | 26 | 22 | 16 |
All dimensions, capacities, display areas, refrigerant and loading quantities are based on the supplied technical sheet. Compressor and controller brands represent available configurations. The standard lighting configuration is explicitly listed as NO.
Additional Product Specifications
| Component | Description |
|---|---|
| Cabinet Configuration | Low-Profile Horizontal Island Freezer |
| Cooling Method | Direct / Static Cooling |
| Temperature Range | −18°C to −22°C |
| Refrigerant | R290 |
| Glass Lid | Coated Tempered Sliding Glass |
| Lid Access | Left-Right Sliding |
| Cabinet Edging | Aluminum Alloy |
| Insulation Construction | Integrated Fine-Cell Foaming |
| Interior Lining | Pre-Coated Material |
| Standard Storage Baskets | 4 or 6 Depending on Model |
| Condensate / Defrost Drainage | Cabinet Rim and Interior |
| Machinery Compartment | Anti-Rodent Protection |
| Cabinet Base | Full-Length Bottom Structure |
| Mobility | Enlarged Resin Casters |
| Interior LED Lighting | Not Included |
| OEM/ODM Manufacturing | Available for Inquiry |
Commercial Applications
1. Supermarket Frozen Food Island Merchandising
The SDG-N Series is suitable for supermarket freezer aisles and horizontal frozen product display areas.
The low-profile cabinet provides convenient customer access, while the sliding glass lids allow shoppers to view frozen merchandise before opening the compartment.
2. Grocery Store Frozen Food Sections
Grocery retailers can select different capacities based on available floor space.
The SDG-1500N and SDG-1800N provide smaller display configurations, while the SDG-2000N and SDG-2500N offer expanded display areas.
3. Packaged Frozen Vegetables and Prepared Meals
The series can be used for packaged frozen vegetables, prepared meals, and other products requiring storage within the specified temperature range.
The storage baskets help separate different merchandise categories and support routine replenishment.
4. Frozen Meat and Seafood Retail
Retailers can use the freezers for appropriately packaged frozen meat and seafood products.
Actual product temperatures should be monitored to ensure compliance with applicable storage requirements.
5. Promotional Frozen Food Displays
The horizontal cabinet design is suitable for dedicated promotional freezer areas.
The glass lids provide product visibility, while the enlarged casters facilitate repositioning when merchandising layouts change.
6. Supermarket Equipment Procurement Projects
Commercial refrigeration distributors and retail project contractors can consider the SDG-N Series for multi-store installation programs.
The shared cabinet design and different capacities help buyers select equipment according to individual store requirements.
OEM/ODM Customization Options
Realmann supports OEM/ODM and wholesale cooperation for commercial refrigeration distributors, retail chains, and equipment importers.
| Customization Item | Available Options |
|---|---|
| Product Models | SDG-1500N / SDG-1800N / SDG-2000N / SDG-2500N |
| Capacity Range | 232L–529L |
| Compressor Options | Donper / GMCC |
| Temperature Control | Digital / Mechanical |
| Refrigerant | R290 |
| Standard Baskets | 4 or 6 |
| Cabinet Configuration | Low-Profile Island Display |
| Additional Branding | Subject to Confirmation |
| OEM/ODM Service | Available for Inquiry |
Additional electrical specifications, cabinet colors, branding requirements, order quantities, and shipping arrangements should be confirmed with Realmann.
Frequently Asked Questions (FAQ)
Q1: What is a low-profile island display freezer?
A low-profile island display freezer is a horizontal commercial freezer with a relatively low cabinet height designed for customer-facing frozen merchandise.
The Realmann SDG-N Series features sliding glass lids and a consistent cabinet height of 880 mm.
Q2: What is the difference between the SDG-N and SDO-N Series?
Both series use R290 direct cooling, sliding glass lids, integrated foamed insulation, and operate from −18°C to −22°C.
The SDG-N Series has a cabinet height of 880 mm and usable capacities from 232L to 529L.
The SDO-N Series has a cabinet height of 860 mm and provides larger usable capacities from 329L to 727L.
For the same nominal width category, the two series share similar display area specifications but have different storage volumes.
Q3: What temperature range does the SDG-N Series support?
All four models are specified to operate from −18°C to −22°C.
Actual cabinet temperature depends on ambient conditions, thermostat settings, product loading, and frequency of lid openings.
Q4: What refrigerant is used?
All SDG-N models use R290 refrigerant.
R290 is flammable and requires suitable system design, installation and maintenance procedures.
Q5: Does the freezer use fan-forced cooling?
No. The SDG-N Series uses direct cooling.
It does not rely on an internal fan to circulate refrigerated air and may require periodic manual defrosting.
Q6: Are the sliding glass lids curved or flat?
The product description refers to curved coated tempered glass, while the product category is described as a flat display cabinet.
The exact glass geometry should be confirmed using the manufacturer’s model drawings or actual product photographs before publishing a specific flat-glass or curved-glass claim.
Q7: What is the largest model in the SDG-N Series?
The SDG-2500N is the largest model, offering 529L of usable capacity and a display area of 1.98 m².
Its exterior dimensions are 2541 × 1010 × 880 mm.
Q8: How many storage baskets are included?
The SDG-1500N and SDG-1800N include four baskets each.
The SDG-2000N and SDG-2500N include six baskets each.
Q9: Does the SDG-N Series include LED lighting?
No. The supplied technical specifications list interior lighting as NO for all four models.
Store lighting should be considered when planning merchandise visibility.
Q10: What compressor brands are available?
The series lists Donper and GMCC compressor options.
The selected brand, model and compressor quantity should be confirmed with Realmann.
Q11: Are mechanical and digital temperature controllers available?
Yes. The technical sheet lists both digital and mechanical controller options.
The final configuration should be specified when ordering.
Q12: What are the benefits of integrated foamed insulation?
Integrated foaming creates an insulated cabinet structure intended to limit heat transfer.
The fine-cell insulation design supports the freezer’s thermal requirements, although actual energy performance should be evaluated using measured data.
Q13: Does the freezer have a drainage system?
Yes. The product description specifies drainage provisions at the cabinet rim and inside the storage compartment.
These help manage water during cleaning and defrosting.
Q14: Can the freezer be repositioned for cleaning?
The cabinet includes enlarged resin casters that support repositioning during installation or maintenance.
Appropriate handling and positioning procedures should be followed.
Q15: Does Realmann provide OEM/ODM manufacturing?
Yes. Realmann supports commercial refrigeration wholesale and OEM/ODM inquiries.
Buyers can discuss model selection, controller options, compressor configurations, branding, quantities, and delivery requirements.
