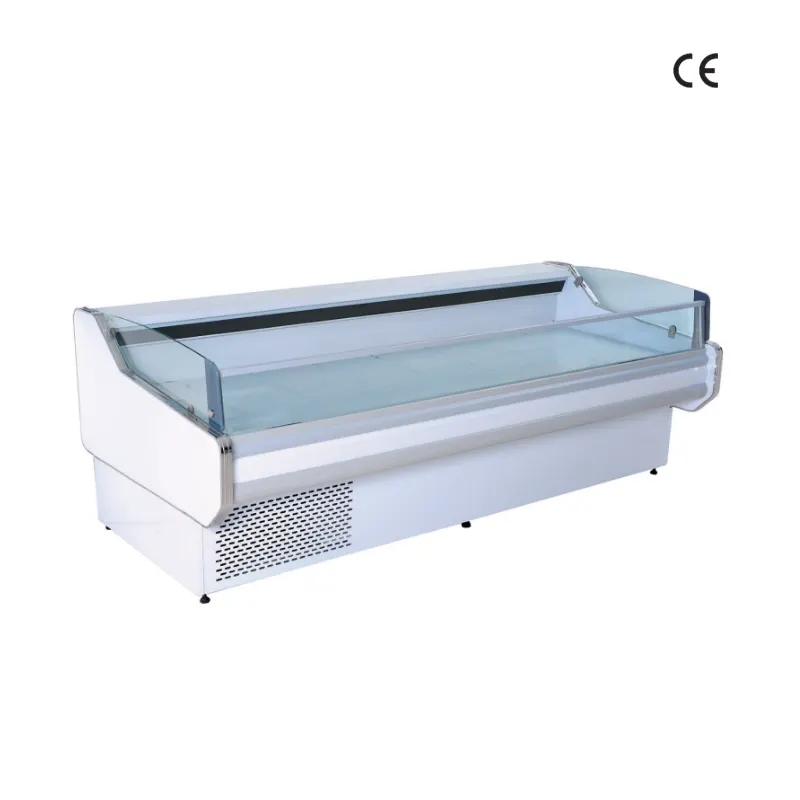

1160mm Self-Service Refrigerated Display Counter
Features
- 1160mm Deep Open Display
- Direct Self-Service Access
- 0–5°C Fan Cooling
- Rear Stainless Steel Worktop
- With / Without Compressor Options
The BSM / CSM 1160mm Series Self-Service Refrigerated Display Counter is designed for supermarkets, convenience stores, cafés, bakeries and fresh-food retailers that require a spacious open-front refrigerated display with direct customer access.
With a cabinet depth of 1160 mm, this series provides greater merchandising depth than standard self-service counters while maintaining a low 900 mm counter height. The open-front design allows shoppers to browse and select chilled products quickly, making it especially suitable for grab-and-go food, packaged meals, dairy products, desserts and promotional displays.
The cabinet operates from 0°C to +5°C and uses fan-assisted refrigeration for even cold-air distribution. A rear stainless steel worktop supports product preparation and replenishment, while the self-evaporating condensate system reduces daily maintenance.
Multiple sizes are available with effective capacities from 290L to 750L, and models can be supplied either with a compressor or without one for remote refrigeration projects.
Features
1160mm Deep Cabinet
The deeper 1160 mm cabinet provides a larger merchandising platform for chilled foods and packaged products.
It is suitable for retailers that need more display depth without using a full-height upright refrigerator.
Open-Front Self-Service Design
Customers can access products directly without opening glass doors or waiting for staff assistance.
This supports fast-moving retail categories and grab-and-go purchasing.
Low 900mm Counter Height
The relatively low cabinet profile keeps products within easy reach and helps maintain open sightlines across the store.
Electrostatic-Coated Construction
The cabinet body uses an electrostatic-coated finish for durability in commercial retail environments.
Rear Stainless Steel Worktop
The stainless steel rear work surface provides staff with a convenient area for preparation, packaging and product replenishment.
Fan-Assisted Refrigeration
Forced-air cooling distributes chilled air throughout the display area to support more uniform cabinet temperatures.
0°C to +5°C Operation
The cabinet operates between 0°C and +5°C, suitable for many chilled packaged foods whose required storage conditions fall within this range.
CAREL Temperature Control
CAREL electronic controls provide reliable temperature monitoring and adjustment.
LED Lighting
Integrated LED lighting improves product visibility across the display area.
Self-Evaporating Condensate System
Condensate water is automatically evaporated during normal operation, reducing manual drainage work.
Magnetic Front Panel
The magnetic front cover simplifies access during routine cleaning and maintenance.
Integrated Support Wheels
Built-in castors allow easier repositioning during installation, cleaning and store layout changes.
Compressor or Remote Version
The cabinet can be configured with a compressor or supplied without one for connection to a remote refrigeration system.
This provides flexibility for independent stores and larger supermarket projects.
Technical Specifications
| Specification | BSM-1311RC / CSM-1311RC | BSM-2011RC / CSM-2011RC | BSM-2511RC / CSM-2511RC | BSM-3811RC / CSM-3811RC |
|---|---|---|---|---|
| Product Type | Self-Service Refrigerated Counter | Self-Service Refrigerated Counter | Self-Service Refrigerated Counter | Self-Service Refrigerated Counter |
| Product Dimensions (W × D × H) | 1336 × 1160 × 900 mm | 1960 × 1160 × 900 mm | 2580 × 1160 × 900 mm | 3836 × 1160 × 900 mm |
| Packing Dimensions (W × D × H) | 1500 × 1260 × 1100 mm | 2100 × 1260 × 1100 mm | 2700 × 1260 × 1100 mm | 3950 × 1260 × 1100 mm |
| Display Area | 1.10 m² | 1.60 m² | 2.12 m² | 3.08 m² |
| Effective Capacity | 290 L | 410 L | 530 L | 750 L |
| Cooling System | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling |
| Temperature Range | 0°C to +5°C | 0°C to +5°C | 0°C to +5°C | 0°C to +5°C |
| Refrigerant | R404A | R404A | R404A | R404A |
| Compressor | Secop / Without Compressor | Secop / Without Compressor | Secop / Without Compressor | Boyang / Without Compressor |
| Temperature Controller | CAREL | CAREL | CAREL | CAREL |
| Lighting | LED Light | LED Light | LED Light | LED Light |
| 40′ GP Loading Qty. | 18 pcs | 18 pcs | 8 pcs | 6 pcs |
Model Options
290L Model
The BSM/CSM-1311RC provides 290L capacity and a 1.10 m² display area.
It is suitable for smaller grab-and-go zones, cafés and convenience stores.
410L Model
The BSM/CSM-2011RC provides 410L capacity with a 1.60 m² display area for broader chilled product assortments.
530L Model
The BSM/CSM-2511RC offers 530L effective volume and 2.12 m² display area, making it suitable for medium-sized supermarket food sections.
750L Model
The BSM/CSM-3811RC is the largest configuration, providing 750L capacity and a 3.08 m² display area for high-volume self-service merchandising.
Application Scenarios
Supermarket Grab-and-Go Areas
Suitable for sandwiches, salads, chilled meals and packaged ready-to-eat food.
Convenience Stores
The open design supports fast customer access to high-turnover chilled products.
Bakery and Café Counters
Ideal for packaged desserts, chilled pastries and beverages.
Dairy Products
The cabinet can display milk, yogurt and other chilled dairy products compatible with the 0°C to +5°C operating range.
Prepared Food Sections
Useful for cold dishes, packed meals and pre-portioned foods.
Retail Chain Projects
Multiple cabinet widths and compressor options make the series suitable for standardized installations across different store formats.
Why Choose a 1160mm Self-Service Display Counter?
The 1160 mm cabinet depth gives this series more merchandising space than shallower open counters.
This deeper design allows retailers to display more products per cabinet while maintaining a low-profile self-service layout.
Key advantages include:
- Greater product loading depth
- Easy direct customer access
- Better use of counter-level display space
- Suitable for central or perimeter store installations
- Flexible integration with different refrigeration systems
Self-Service vs. Assisted-Service Counter
This series should be positioned differently from the BSS assisted-service cabinets.
A self-service counter allows customers to pick products directly, while an assisted-service cabinet places staff between the product and customer.
The BSM / CSM series is therefore better suited to:
- Grab-and-go foods
- Pre-packed products
- Chilled beverages
- Packaged desserts
- High-turnover convenience items
FAQ
1. What is a self-service refrigerated display counter?
It is an open-front commercial refrigerated cabinet that allows customers to select chilled products directly.
2. What is the cabinet depth?
This series uses a 1160 mm deep cabinet.
3. What is the operating temperature range?
The specified temperature range is 0°C to +5°C.
4. Does the cabinet use fan cooling?
Yes. All models use fan-assisted refrigeration.
5. What capacities are available?
The available effective capacities are:
- 290L
- 410L
- 530L
- 750L
6. Does it include a stainless steel worktop?
Yes. A rear stainless steel worktop is included for preparation and replenishment.
7. What refrigerant is used?
The technical specification lists R404A.
8. What controller is installed?
The series uses CAREL temperature controllers.
9. Does it include LED lighting?
Yes. LED lighting is standard.
10. Can it be supplied without a compressor?
Yes. The cabinet can be supplied without a compressor for remote refrigeration projects.
11. What compressor brands are available?
The specification lists Secop for the smaller models and Boyang for the largest configuration, depending on version.
12. How is condensate water handled?
The cabinet uses a self-evaporating condensate system to reduce manual drainage.
13. Is the front panel removable?
Yes. The magnetic front panel is designed for easier cleaning and service access.
14. Can the cabinet be moved?
Yes. Integrated castors make repositioning easier.
15. Which model offers the largest capacity?
The BSM-3811RC / CSM-3811RC provides the largest effective capacity at 750L.
