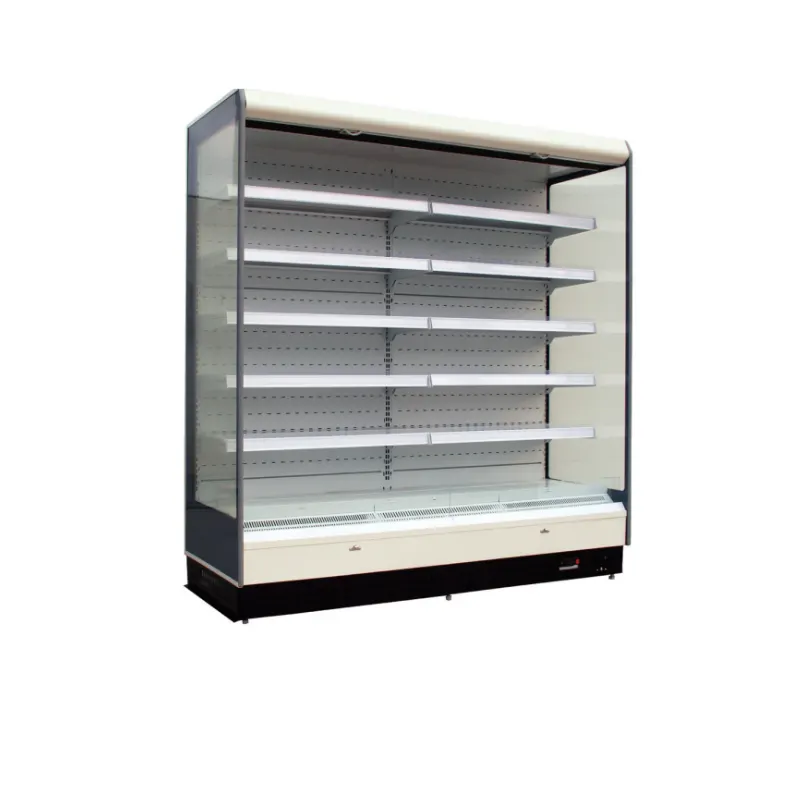

675 & 735mm Remote Open Multideck Display Refrigerator
Features
- Open-Front Merchandising Design
- Remote Refrigeration System
- Low-Front High-Visibility Display
- Wide Energy-Saving Night Curtain
- Adjustable LED-Lit Shelves
The 675 & 735mm Series Remote Open Multideck Display Refrigerator is designed for convenience stores, supermarkets and food retailers that require fast customer access, high product visibility and flexible refrigerated merchandising.
Unlike glass-door cabinets, this series features an open-front display structure with a low front edge, allowing shoppers to view and pick products directly without opening a door. The design maximizes the visible merchandising area and is particularly suitable for beverages, dairy products, sandwiches, salads, ready-to-eat food and other high-turnover chilled products.
The cabinet uses a remote refrigeration configuration with R404A refrigerant and an enlarged copper-aluminum fin evaporator. Combined with an optimized trapezoidal air curtain and EBM fans, the system provides efficient forced-air circulation throughout the display area.
A wide night curtain helps reduce cold-air loss during non-business hours, while adjustable shelves and optional shelf LED lighting allow retailers to create flexible and attractive product displays.
Six models are available with effective capacities from 690L to 1500L, giving retailers multiple cabinet width and depth options for different store layouts.
Features
Open-Front Display for Fast Product Access
The open display structure removes the need for glass doors, allowing customers to reach products immediately.
This makes the cabinet particularly suitable for high-turnover retail categories where convenience and quick product selection are important.
Low Front Edge for Maximum Visibility
A low front profile increases the usable merchandising area and provides a clearer view of products from different customer angles.
The design helps retailers make better use of the cabinet’s vertical display space.
Remote Refrigeration Configuration
This series is designed for split or remote refrigeration systems.
Separating the refrigeration equipment from the display cabinet makes the range suitable for convenience-store and supermarket projects using centralized refrigeration layouts.
Enlarged Copper-Aluminum Evaporator
An enlarged finned evaporator increases the heat-exchange surface and supports stable cooling performance across the cabinet.
Trapezoidal Air Curtain
The optimized air curtain directs refrigerated air across the open front, helping maintain cabinet temperature while reducing unnecessary cold-air loss.
EBM Fan System
The cabinet uses EBM fans for forced-air circulation, distributing cooled air across the shelves and display area.
CAREL Temperature Controller
A CAREL electronic temperature controller provides accurate temperature management for commercial refrigeration operation.
Adjustable Merchandise Shelves
Shelf positions can be adjusted according to different product heights and package formats.
This allows retailers to display drinks, dairy products, packaged food and grab-and-go items in different merchandising combinations.
LED Top Lighting
LED lighting is installed at the top of the cabinet to improve product visibility.
Optional shelf LED lighting can also be added to highlight merchandise on individual display levels.
Wide Night Curtain
An extra-wide night curtain helps minimize gaps when the cabinet is covered after business hours.
This reduces cold-air escape and supports more efficient overnight operation.
Solenoid Valve and Filtration
A solenoid valve is included as standard, while an additional filtration configuration helps protect the refrigeration circuit and reduce maintenance frequency.
Top-Pipe Connection Design
The piping connection is arranged from the upper section of the cabinet, helping simplify installation in commercial refrigeration projects.
Clip-Type Fan Base
The removable fan base improves service access and makes fan inspection or replacement easier.
Adjustable Foot Bolts
Adjustable feet help installers level and position the cabinet correctly on different commercial floors.
Technical Specifications
| Specification | CLF-1368 | CLF-1374 | CLF-2068 | CLF-2074 | CLF-2568 | CLF-2574 |
|---|---|---|---|---|---|---|
| Product Type | Remote Open Multideck Chiller | Remote Open Multideck Chiller | Remote Open Multideck Chiller | Remote Open Multideck Chiller | Remote Open Multideck Chiller | Remote Open Multideck Chiller |
| Product Dimensions (W × D × H) | 1310 × 675 × 2030 mm | 1310 × 735 × 2030 mm | 1935 × 675 × 2030 mm | 1935 × 735 × 2030 mm | 2560 × 675 × 2030 mm | 2560 × 735 × 2030 mm |
| Packing Dimensions (W × D × H) | 1484 × 775 × 2090 mm | 1484 × 845 × 2090 mm | 2109 × 775 × 2090 mm | 2109 × 845 × 2090 mm | 2734 × 775 × 2090 mm | 2734 × 845 × 2090 mm |
| Effective Capacity | 690 L | 710 L | 1030 L | 1060 L | 1460 L | 1500 L |
| Display Area | 1.97 m² | 1.97 m² | 2.96 m² | 2.96 m² | 3.94 m² | 3.94 m² |
| Cooling System | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling |
| Temperature Range | -1°C to +7°C | -1°C to +7°C | -1°C to +7°C | -1°C to +7°C | -1°C to +7°C | -1°C to +7°C |
| Refrigerant | R404A | R404A | R404A | R404A | R404A | R404A |
| Cooling Capacity* | 1550 | 1755 | 2325 | 2600 | 3100 | 3470 |
| Fan Brand | EBM | EBM | EBM | EBM | EBM | EBM |
| Temperature Controller | CAREL | CAREL | CAREL | CAREL | CAREL | CAREL |
| Lighting | LED Light | LED Light | LED Light | LED Light | LED Light | LED Light |
| 40′ GP Loading Qty. | 24 pcs | 22 pcs | 16 pcs | 14 pcs | 8 pcs | 8 pcs |
*The source table lists cooling capacity values but does not specify the unit. It is better to confirm whether these figures are in W before publishing them on the website.
675mm vs. 735mm Cabinet Depth
The series provides two cabinet depths to suit different merchandising requirements.
675mm Series
Models CLF-1368, CLF-2068 and CLF-2568 use a 675 mm cabinet depth.
This version is suitable for convenience stores and retail locations where aisle space needs to be carefully controlled.
735mm Series
Models CLF-1374, CLF-2074 and CLF-2574 use a deeper 735 mm cabinet.
The additional depth increases usable capacity while maintaining the same cabinet width and display area within each corresponding model size.
For example, the CLF-2574 provides 1500L effective capacity, compared with 1460L for the shallower CLF-2568.
Application
Convenience Stores
The open-front structure makes products easy to see and reach, making the cabinet suitable for high-frequency purchases such as beverages, sandwiches, milk, yogurt and ready-to-eat meals.
Supermarkets
The larger CLF-2068/2074 and CLF-2568/2574 models provide wide refrigerated merchandising areas for chilled-food aisles.
Multiple cabinets can also be arranged into continuous refrigerated runs.
Grab-and-Go Food Areas
The cabinet is particularly suitable for:
- Sandwiches
- Salads
- Chilled meals
- Desserts
- Yogurt
- Prepared food
- Bottled beverages
Open access helps customers complete purchases quickly.
Beverage Merchandising
Adjustable shelves provide flexible arrangements for bottled water, soft drinks, juice, energy drinks and chilled coffee.
Optional shelf lighting can further improve beverage presentation.
Dairy Sections
The -1°C to +7°C operating range makes the cabinet suitable for compatible dairy products including milk, yogurt and packaged chilled drinks.
Bakery and Café Retail
Open multideck chillers can be positioned near checkout areas or food counters to merchandise packaged desserts, bottled drinks and chilled takeaway foods.
Retail Chain Projects
With three widths and two depths, the series gives chain stores flexibility to select different capacities while maintaining a consistent equipment design.
Designed for High-Visibility Merchandising
The CLF series is built around a different retail concept from a conventional glass-door refrigerator.
With no door between the customer and merchandise, products remain continuously visible and immediately accessible.
The combination of a low front edge, open display area and adjustable shelving maximizes the amount of merchandise that can be seen from the aisle.
This makes the cabinet especially suitable for impulse purchases and high-turnover refrigerated categories.
Night Curtain for After-Hours Operation
An open-front cabinet provides excellent daytime access, but reducing cold-air loss outside trading hours is also important.
The CLF series therefore includes an extra-wide night curtain.
When the store is closed, the curtain can cover the open display area and reduce unnecessary exchange between refrigerated cabinet air and the surrounding store environment.
The wider design helps minimize edge gaps and improve cabinet coverage.
Remote Refrigeration for Store Projects
Because the CLF series uses a remote refrigeration configuration, compressors and condensing equipment can be located away from the merchandising cabinet.
This makes the product particularly suitable for:
- Convenience-store refrigeration projects
- Supermarket centralized refrigeration
- Multi-cabinet installations
- Continuous multideck display runs
- Retail environments requiring centralized mechanical equipment
The top-pipe design also helps simplify refrigerant piping during project installation.
FAQ
1. What is an open multideck display refrigerator?
An open multideck refrigerator is an upright refrigerated merchandising cabinet with an open front and multiple adjustable shelves. Customers can access products directly without opening a glass door.
2. Where is an open display chiller commonly used?
It is commonly used in convenience stores, supermarkets, grocery stores, cafés and grab-and-go food areas.
3. What is the operating temperature range?
The specified temperature range is -1°C to +7°C.
4. Is this a self-contained refrigerator?
No. The CLF series is designed as a remote or split-type refrigeration cabinet and requires connection to compatible external refrigeration equipment.
5. What is the difference between the 675mm and 735mm models?
The main difference is cabinet depth.
The 735 mm versions provide slightly more effective storage capacity, while the 675 mm versions require less floor depth.
6. What capacities are available?
Depending on the model, effective capacity ranges from 690L to 1500L.
7. Does the cabinet use glass doors?
No. This series uses an open-front merchandising design, allowing customers direct access to refrigerated products.
8. How does the cabinet keep cold air inside without doors?
The cabinet uses a controlled air curtain across the open display area to help separate the refrigerated interior from ambient store air.
9. Does it include a night curtain?
Yes. An extra-wide night curtain is provided to cover the open display area during non-business hours.
10. Are the shelves adjustable?
Yes. The shelf positions can be changed according to the size and height of the products being displayed.
11. Can LED lights be installed on the shelves?
Yes. The cabinet includes LED top lighting, while shelf LED lighting is available as an option.
12. What fan brand is used?
The specification lists EBM fans for the entire range.
13. What temperature controller is used?
The models are equipped with CAREL electronic temperature controllers.
14. What refrigerant does the cabinet use?
The current specifications list R404A refrigerant.
15. Is this product suitable for convenience-store projects?
Yes. The open-front access, multiple cabinet sizes, low front profile and remote refrigeration architecture make the series particularly suitable for convenience-store refrigerated merchandising projects.
