White Pre-Painted Upright Display Refrigerators and Freezers
Highlights

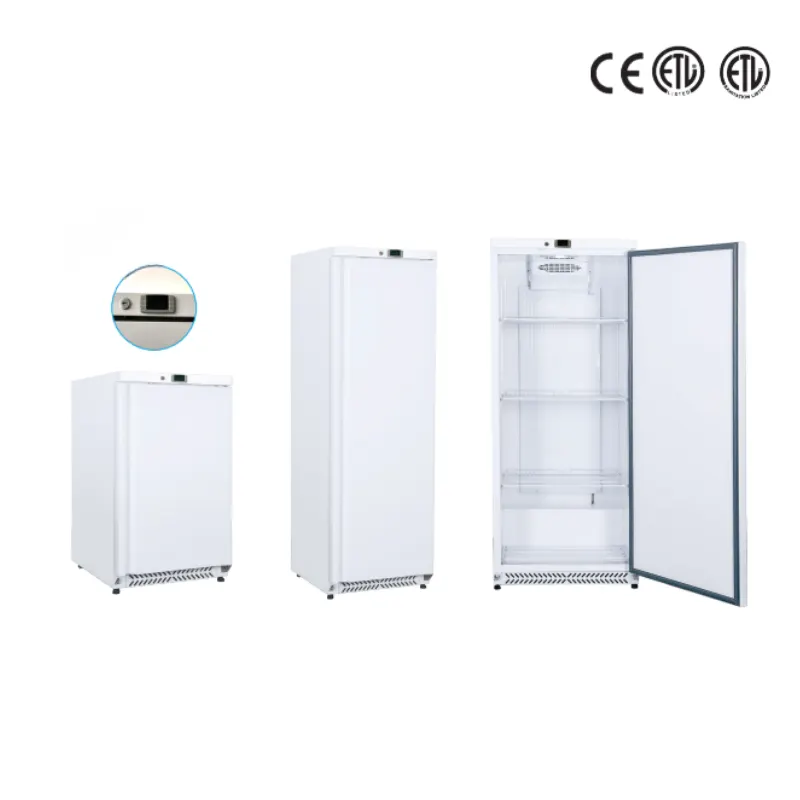

- European-style upright cabinet with white pre-painted solid door
- Freezer models: −18°C; refrigerator models: 0 to +8°C
- Static, fan-assisted static, or ventilated cooling, depending on model
- Digital thermostat; controller brand varies by model
- Lock and key
- Interior lighting
- Adjustable shelves
- Reversible self-closing door option
- Roll-bond plate with chiller fan
- Seven-layer evaporator freezer

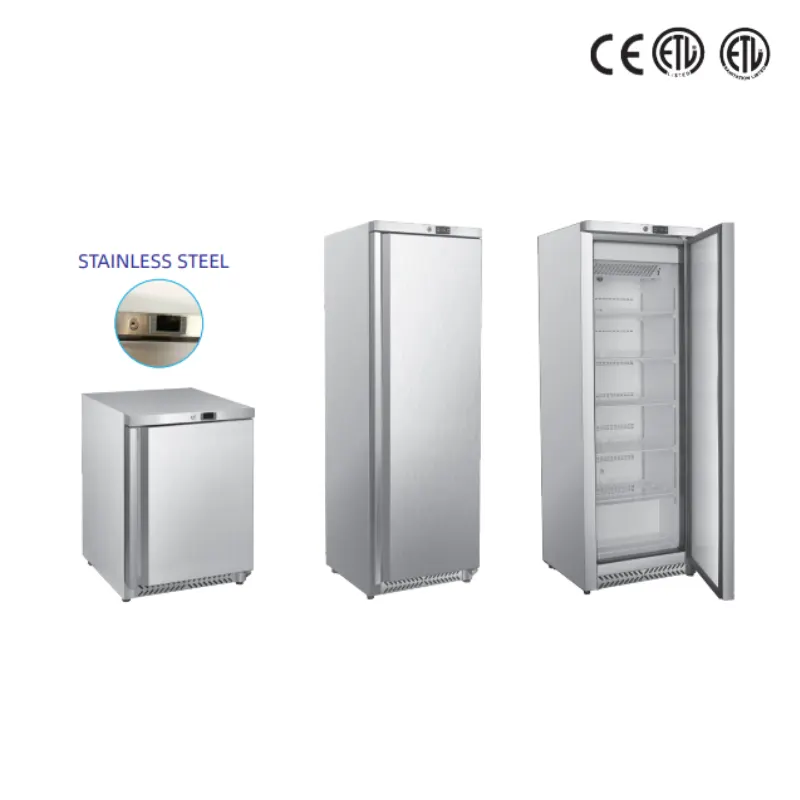

- Optional stainless steel or glass exterior
- Optional two adjustable front feet and two rear wheels
The SF and SR Series are European-style upright display cabinets with white pre-painted solid doors, designed for organized frozen or chilled storage in commercial settings. The freezer models maintain a listed temperature of −18°C, while refrigerator models operate from 0 to +8°C. Depending on the model, cooling is static, static with fan assistance, or ventilated. Each cabinet includes a digital thermostat, lock and key, interior lighting, and adjustable shelves. Optional features include stainless steel or glass exterior panels, Eliwell or Dixell controls, and two adjustable front feet with two rear wheels. Choose from compact single-door units or larger-capacity models to suit your available space and storage needs.
- SF-20 White Upright Display Freezer
- SF-40V White Ventilated Upright Display Freezer
- SF-60V White Wide Upright Display Freezer
- SR-20 White Upright Display Refrigerator
- SR-40 White Upright Display Refrigerator
- SR-40V White Ventilated Upright Display Refrigerator
- SR-60 White Wide Upright Display Refrigerator
- SR-60V White Wide Ventilated Upright Display Refrigerator
Highlights
- European-style upright cabinet with white pre-painted solid door
- Freezer models: −18°C; refrigerator models: 0 to +8°C
- Static, fan-assisted static, or ventilated cooling, depending on model
- Digital thermostat; controller brand varies by model
- Lock and key
- Interior lighting
- Adjustable shelves
- Reversible self-closing door option
- Roll-bond plate with chiller fan
- Seven-layer evaporator freezer
- Optional stainless steel or glass exterior
- Optional two adjustable front feet and two rear wheels
Specifications
Freezer Models
| Specification | SF-20 | SF-40V | SF-60V |
|---|---|---|---|
| Dimensions (W × D × H) | 595 × 653 × 870 mm | 595 × 653 × 1840 mm | 775 × 723 × 1840 mm |
| Capacity | 143 L | 345 L | 506 L |
| Cooling system | Static | Ventilated | Ventilated |
| Temperature range | −18°C | −18°C | −18°C |
| Shelves | 1 + 1 | 6 + 1 | 6 + 1 |
| Lighting | Yes | Yes | Yes |
| Compressor | ZEL / ZEL | Embraco / ZEL | Embraco / ZEL |
| Thermostat | Dixell / Elitech | Dixell / Elitech | Dixell / Elitech |
| Refrigerant | R134a / R600a | R404a / R290 | R404a / R290 |
| 40-ft GP container loading | 108 | 54 | 42 |
Refrigerator Models
| Specification | SR-20 | SR-40 | SR-40V | SR-60 | SR-60V |
|---|---|---|---|---|---|
| Dimensions (W × D × H) | 595 × 653 × 870 mm | 595 × 653 × 1840 mm | 595 × 653 × 1840 mm | 775 × 723 × 1840 mm | 775 × 723 × 1840 mm |
| Capacity | 143 L | 356 L | 356 L | 580 L | 580 L |
| Cooling system | Static | Static with fan cooling | Ventilated | Static with fan cooling | Ventilated |
| Temperature range | 0 to +8°C | 0 to +8°C | 0 to +8°C | 0 to +8°C | 0 to +8°C |
| Shelves | 1 + 1 | 3 + 1 | 3 + 1 | 3 + 1 | 3 + 1 |
| Lighting | Yes | Yes | Yes | Yes | Yes |
| Compressor | ZEL / ZEL | ZEL / ZEL | ZEL / ZEL | ZEL / ZEL | ZEL / ZEL |
| Thermostat | Dixell | Dixell | Dixell | Dixell | Dixell |
| Refrigerant | R134a / R600a | R134a / R600a | R134a / R600a | R134a / R600a | R134a / R600a |
| 40-ft GP container loading | 108 | 54 | 54 | 42 | 42 |
Specifications are transcribed from the supplied charts. Confirm configuration, component brands, and refrigerant availability for the selected model before ordering.
Applications
Suitable for commercial kitchens, cafés, restaurants, convenience stores, grocery shops, food-service counters, and other businesses that need organized upright frozen or chilled storage.
FAQ
What is the difference between the SF and SR models?
SF models are freezers with a listed operating temperature of −18°C. SR models are refrigerators with a listed range of 0 to +8°C.
Do all models use ventilated cooling?
No. Cooling type depends on the model. The charts list static, static with fan cooling, and ventilated options.
Are these glass-door display cabinets?
The listed models have white pre-painted solid doors. Glass exterior material is mentioned as an option; confirm whether it applies to the door or cabinet panels for your selected configuration.
Can the door be reversed?
A reversible self-closing door is listed as an available option. Confirm model compatibility when ordering.
Which thermostat brands are available?
The product information lists Dixell and Eliwell as options. The model charts specify Dixell or Dixell/Elitech, depending on the model.
What are the dimensions and capacities?
Dimensions and capacities are shown by model in the specification tables. The listed capacities range from 143 L to 580 L for refrigerators and 143 L to 506 L for freezers.
Do the units include wheels?
Two rear wheels and two adjustable front feet are listed as an option. Check availability for the selected model.
