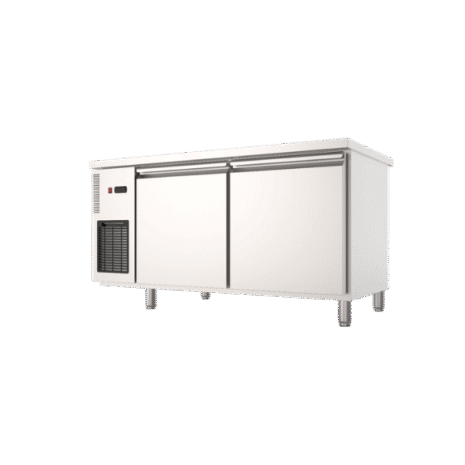

1500 Air-Cooled Worktop Refrigerator (0~5°C)
Highlights
- Single temperature refrigerator zone: 0~5°C
- High-efficiency forced air cooling system
- Smart airflow duct circulation for even temperature distribution
- Environmentally friendly R290 refrigerant
- Low temperature fluctuation for food preservation
- Stainless steel SUS201 interior and exterior construction
- Electric auto defrost with condensate self-evaporation
- Front-access removable filter for easy maintenance
- Rounded interior corners for improved hygiene
- Foamed-in-place rigid structure for durability
The 1500 Air-Cooled Worktop Refrigerator YTA-150R REF is designed for professional commercial kitchens, restaurants, bakeries, hotels, and food preparation areas that require reliable refrigerated storage combined with a durable stainless steel work surface.
Equipped with a high-efficiency forced-air refrigeration system and intelligent airflow management, the unit maintains stable temperatures between 0~5°C, helping preserve food freshness and reduce temperature fluctuations during busy kitchen operations. The use of environmentally friendly R290 refrigerant (GWP=3) ensures energy-efficient cooling performance while supporting sustainable refrigeration standards.
Its heavy-duty stainless steel construction, microprocessor-controlled electric defrost system, and easy-maintenance front-access design make the YTA-150R REF suitable for demanding commercial environments with ambient temperatures up to 43°C.
Ideal for undercounter refrigeration applications, this commercial worktop refrigerator combines storage, workspace efficiency, hygiene, and reliable cooling performance in one compact solution.
Highlights
- Single temperature refrigerator zone: 0~5°C
- High-efficiency forced air cooling system
- Smart airflow duct circulation for even temperature distribution
- Environmentally friendly R290 refrigerant
- Low temperature fluctuation for food preservation
- Stainless steel SUS201 interior and exterior construction
- Electric auto defrost with condensate self-evaporation
- Front-access removable filter for easy maintenance
- Rounded interior corners for improved hygiene
- Foamed-in-place rigid structure for durability
- Cyclopentane insulation with 60 mm thickness
- Optional LED lighting and door lock
- Optional adjustable casters or feet
- Optional SUS304 stainless steel upgrade
- Optional RS485 ModBus remote monitoring port
- Suitable for ambient temperatures up to 43°C
Technical Specifications
| Item | Specification |
|---|---|
| Model | YTA-150R REF |
| Product Type | Air-Cooled Worktop Refrigerator |
| Temperature Range | 0~5°C |
| Cooling System | Forced Air Circulation |
| Cooling Unit | Self-contained |
| Refrigeration Capacity | 490W |
| Refrigerant | R290 (GWP=3) |
| Refrigerant Charge | 45g |
| Defrost System | Electric Defrost, Microprocessor-Controlled |
| Insulation Material | Cyclopentane |
| Insulation Thickness | 60 mm |
| Exterior Material | SUS201 Stainless Steel + Galvanized Back/Bottom |
| Interior Material | SUS201 Stainless Steel |
| Climate Class | 4 |
| Operating Ambient Temp. | 5~43°C |
| Voltage | 220-240V / 50-60Hz |
| Rated Power | 120W |
| Rated Current | 1.28A |
| Shelves | 2 pcs Food-Grade Plastic-Coated Shelves |
| Feet Height | H100~120 mm |
| Optional Casters | H128 mm Adjustable Casters |
| Test Standard | ISO 22041 |

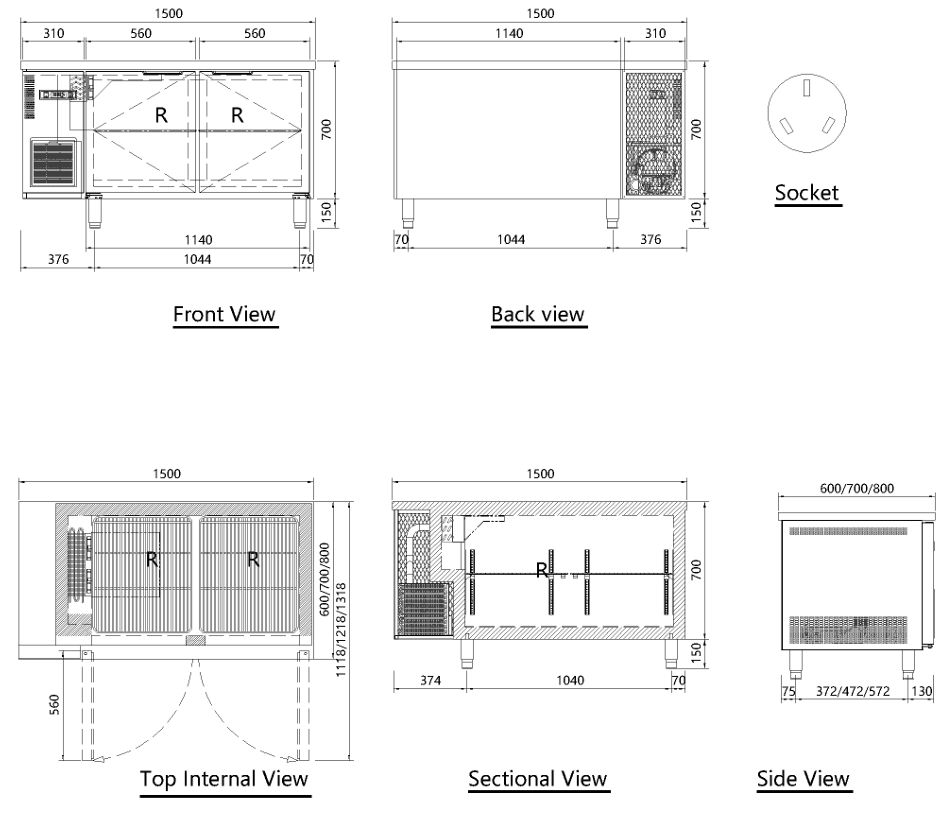

Dimensions & Capacity
| Configuration | 600D | 700D | 800D |
|---|---|---|---|
| Net Capacity | 271L | 332L | 393L |
| Gross Capacity | 284L | 344L | 405L |
| External Dimensions (W×D×H) | 1500×600×800 mm | 1500×700×800 mm | 1500×800×800 mm |
| Internal Dimensions (W×D×H) | 1180×412×570 mm | 1180×512×570 mm | 1180×612×570 mm |
| Door Swing Space | 1500×1118×800 mm | 1500×1218×800 mm | 1500×1318×800 mm |
| Package Dimensions | 1530×630×860 mm | 1530×730×860 mm | 1530×830×860 mm |
| Net Weight | 62 kg | 65 kg | 68 kg |
| Gross Weight | 72 kg | 76 kg | 83 kg |
Applications
The YTA-150R REF commercial worktop refrigerator is suitable for:
- Restaurants
- Hotel kitchens
- Bakery kitchens
- Cafés and coffee shops
- Fast food chains
- Catering facilities
- Central kitchens
- Food preparation stations
- Commercial food service operations
- Supermarket back kitchens
FAQ
1. What temperature range does the refrigerator maintain?
The YTA-150R REF operates within a stable temperature range of 0~5°C, suitable for fresh food storage and kitchen prep applications.
2. What type of refrigerant does the unit use?
The refrigerator uses R290 refrigerant, an environmentally friendly natural refrigerant with ultra-low GWP (Global Warming Potential).
3. Is the refrigerator suitable for hot kitchen environments?
Yes. The unit is designed for commercial environments with ambient temperatures ranging from 5°C to 43°C.
4. Does the refrigerator require a drainage connection?
No. The unit features an electric defrost system with condensate self-evaporation, eliminating the need for an external drain pipe in most installations.
5. Can the refrigerator be customized?
Yes. Optional configurations include:
- SUS304 stainless steel
- Adjustable casters
- LED lighting
- Door lock
- RS485 ModBus communication port
6. What are the advantages of the forced-air cooling system?
The forced-air circulation system provides:
- Faster cooling recovery
- More uniform temperature distribution
- Reduced temperature fluctuation
- Improved food preservation
7. Is this refrigerator suitable for commercial kitchens?
Yes. The heavy-duty stainless steel construction, hygienic interior design, and high ambient operating capability make it ideal for professional commercial kitchens.
