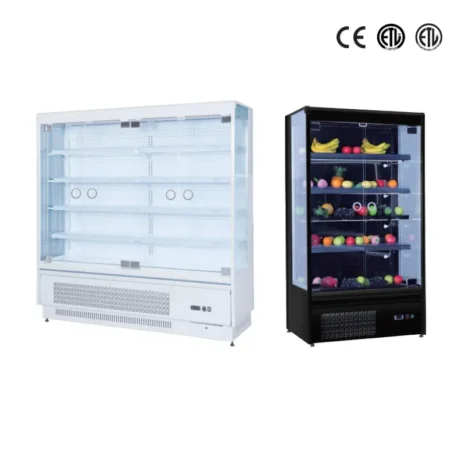

787MM Vertical Refrigerated Display Cabinet

 Features

  • Single-layer tempered glass door — high transparency for attractive product presentation.
  • Double-layer tempered glass side panels — enhanced insulation and structural durability.
  • Built-in magnetic LED lighting — safe, bright, and easy to service.
  • Adjustable internal shelves — flexible layout for different product heights.
  • Magnetic front panel — quick removal for cleaning and convenient water drainage.
  • Removable fan base — simplifies servicing and extends equipment life.
  • Movable leveling feet — easy positioning and mobility during store refits.
  • Refrigerant options — compatible with R404a or R290 for regional compliance.
Download Datasheet

The BLF-787MM vertical refrigerated display cabinet is engineered for modern retail environments that demand reliable cooling, maximum product visibility, and low maintenance. Available in four widths from 997 mm to 1935 mm, this upright air-cooled cabinet keeps beverages, dairy, fresh food, and pastries perfectly chilled at temperatures from -1 °C to 7 °C.

Features

  • Single-layer tempered glass door — high transparency for attractive product presentation.
  • Double-layer tempered glass side panels — enhanced insulation and structural durability.
  • Built-in magnetic LED lighting — safe, bright, and easy to service.
  • Adjustable internal shelves — flexible layout for different product heights.
  • Magnetic front panel — quick removal for cleaning and convenient water drainage.
  • Removable fan base — simplifies servicing and extends equipment life.
  • Movable leveling feet — easy positioning and mobility during store refits.
  • Refrigerant options — compatible with R404a or R290 for regional compliance.

Optional Customization

  • Custom cabinet color
  • Steel thickness and material upgrades
  • Built-in lighting configuration
  • Additional side shelves
  • Bottom support/base options

Technical Specifications

Item BLF-1080GA BLF-1380GA BLF-1580GA BLF-2080GA
Product Model BLF-1080GA BLF-1380GA BLF-1580GA BLF-2080GA
Product Dimensions (W/D/H mm) 997×787×2000 1310×787×2000 1500×787×2000 1935×787×2000
Package Dimensions (W/D/H mm) 1120×900×2150 1430×900×2155 1620×900×2155 2055×900×2155
Effective Capacity (L) 0.42 0.55 0.63 0.84
Display Area (m²) 1.24 1.65 1.9 2.48
Cooling Type Air-cooled Air-cooled Air-cooled Air-cooled
LED Light LED Light LED Light LED Light LED Light
Temperature Range (°C) -1~7 -1~7 -1~7 -1~7
Compressor Embraco/Secop Embraco/Secop Embraco/Secop Embraco/Secop
Refrigerant Type R404a/R290 R404a/R290 R404a/R290 R404a/R290
40 GP Loading Quantity 26 21 14 13

Applications

Supermarkets & Hypermarkets
Convenience Stores
Bakeries & Cafés
Beverage & Cold-Drink Shops
Hotels & Restaurants
Dairy & Fresh Food Retail

Frequently Asked Questions

What temperature range does this display cabinet support?

The 787MM series operates from -1 °C to 7 °C, making it ideal for chilled beverages, dairy, baked goods, and packaged fresh foods.

Do I need to manually defrost the cabinet?

No. The frost-free, forced-air cooling system prevents ice build-up, eliminating the need for manual defrosting and reducing downtime.

Which compressor and refrigerant are used?

Each unit is fitted with a high-efficiency Embraco/Secop compressor and supports either R404a or R290 refrigerant depending on local regulations.

Can the cabinet be customized for my store?

Yes. Optional customization includes cabinet color, steel thickness/material, internal lighting, side shelves, and bottom support configurations.

How many units fit in a 40 ft GP container?

Container loading varies by model: BLF-1080GA (26 units), BLF-1380GA (21 units), BLF-1580GA (14 units), and BLF-2080GA (13 units).
