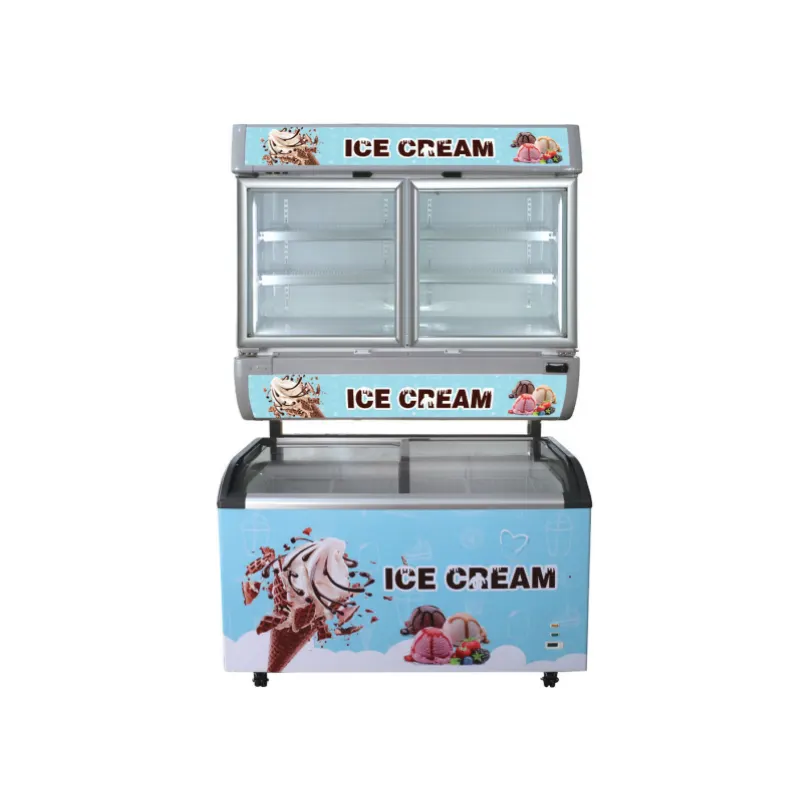

Dual-Temperature Combination Display Cabinet – Mother & Child Series
Features
- Chiller & Freezer Combination
- Sliding Glass Door Access
- Heated Triple-Glass Freezer Doors
- Automatic Hot-Gas Defrost
- Food-Grade Aluminum Interior
The Mother & Child Series Dual-Temperature Display Cabinet combines chilled and frozen merchandising within a coordinated commercial refrigeration solution.
Designed for supermarkets, convenience stores, specialty food shops and frozen-food retailers, the series includes dedicated refrigerated and freezer configurations for products requiring different storage conditions.
The UP-1200 and UP-1200F use ventilated refrigeration and two glass doors for clear merchandise presentation, while the SD-420Q is a low-temperature static freezer equipped with four glass doors and a specified operating range of -18°C to -21°C.
Sliding glass doors provide convenient customer access without requiring large opening clearance. Food-grade pre-coated aluminum interiors support hygienic product storage, while internal divider baskets help organize different product categories.
For freezer applications, triple-layer coated tempered glass with electric heating helps reduce condensation and maintain a clear viewing surface. Automatic hot-gas defrost and a self-evaporating condensate system further reduce routine maintenance.
This combination design is particularly useful for retailers that want to merchandise chilled and frozen products together while maintaining separate refrigeration conditions.
Features
Dual-Temperature Merchandising Concept
The Mother & Child Series allows retailers to combine refrigerated and frozen product displays within one coordinated equipment family.
This is useful for stores carrying both chilled and frozen merchandise in the same sales zone.
Sliding Glass Door Design
The cabinet uses left-right sliding glass doors for convenient access.
Unlike swing doors, sliding panels require less aisle clearance and are well suited to compact retail spaces.
Food-Grade Pre-Coated Aluminum Interior
The internal cabinet uses food-grade pre-coated aluminum to provide a clean and practical storage surface for commercial food applications.
Internal Divider Baskets
Divider baskets help separate different products and improve storage organization.
They are particularly useful for frozen foods, ice cream, packaged meat and other mixed merchandise.
Integrated Aluminum Alloy Handle
The one-piece aluminum alloy handle provides a clean appearance and convenient sliding-door operation.
Automatic Hot-Gas Defrost
The hot-gas defrost system reduces frost accumulation automatically, minimizing the need for manual ice removal.
Self-Evaporating Condensate System
Condensate generated during defrosting is automatically evaporated, reducing routine water disposal.
Heated Triple-Layer Freezer Glass
The freezer configuration uses triple-layer coated tempered glass with electric heating to help prevent condensation and fogging.
This improves visibility of frozen merchandise during operation.
Ventilated Chiller Cooling
The UP models use ventilated cooling to circulate cold air through the display area.
Static Freezer Cooling
The SD-420Q uses static refrigeration, providing a different cooling approach for low-temperature frozen storage.
Technical Specifications
| Specification | UP-1200 | UP-1200F | SD-420Q |
|---|---|---|---|
| Product Type | Refrigerated Display Cabinet | Freezer Display Cabinet | Low-Temperature Display Freezer |
| Product Dimensions (W × D × H) | 1275 × 532 × 1125 mm | 1275 × 532 × 1125 mm | 1270 × 680 × 850 mm |
| Packing Dimensions (W × D × H) | 1380 × 760 × 1320 mm | 1380 × 760 × 1320 mm | 1320 × 780 × 890 mm |
| Effective Capacity* | 605 L | 250 L | 355 L |
| Display Area | 0.47 m² | 0.47 m² | — |
| Cooling System | Ventilated | Ventilated | Static |
| Lighting | LED | LED | LED |
| Glass Door Quantity | 2 | 2 | 4 |
| Temperature Classification / Range | M1 | L1 | -18°C to -21°C |
| Compressor | Secop / Embraco | Secop / Embraco | ZEL |
| Refrigerant | R290 / R404A | R290 / R404A | R290 |
| 40′ GP Loading Qty. | 50 pcs | 50 pcs | 79 pcs |
*The supplied table labels effective capacity as m³, but the values 605, 250 and 355 are much more consistent with liters. I recommend confirming the unit before publishing.
Temperature note: M1 and L1 are classification codes rather than direct temperature values. If you want numerical operating temperatures on the website, confirm the certified range for the UP-1200 and UP-1200F first.
Model Overview
UP-1200 – Refrigerated Display Cabinet
The UP-1200 provides approximately 605L effective capacity and uses ventilated refrigeration.
Its two-door layout and 0.47 m² display area make it suitable for chilled products where clear visibility and easy customer access are important.
UP-1200F – Freezer Display Cabinet
The UP-1200F shares the same compact cabinet dimensions while providing a dedicated low-temperature product configuration.
It is suitable for stores that want a coordinated chilled and frozen display appearance.
SD-420Q – Static Display Freezer
The SD-420Q provides 355L capacity and operates from -18°C to -21°C.
Its four-door design offers convenient access to frozen merchandise while maintaining a compact horizontal form.
Application Scenarios
Convenience Stores
The compact cabinet footprint is suitable for stores that need both chilled and frozen products within limited floor space.
Supermarkets
The series can be used to create coordinated chilled and frozen merchandising zones.
Frozen Food Display
Typical freezer applications include:
- Frozen meals
- Frozen vegetables
- Frozen meat
- Frozen seafood
- Ice cream
- Frozen desserts
Chilled Food Display
Refrigerated configurations can be used for products such as:
- Beverages
- Dairy products
- Desserts
- Packaged ready-to-eat foods
- Chilled snacks
subject to each product’s required storage temperature.
Specialty Food Stores
The dual-temperature concept is useful for retailers carrying both refrigerated and frozen specialty foods.
Retail Chain Projects
Coordinated cabinet styling helps retailers maintain a consistent refrigeration appearance across multiple stores.
Why Choose a Dual-Temperature Display Cabinet?
Retailers often need separate refrigeration conditions for chilled and frozen products.
A coordinated dual-temperature cabinet family helps solve this without mixing products under the wrong storage conditions.
It offers several advantages:
- Dedicated chilled and frozen storage
- Consistent merchandising appearance
- Flexible store layout
- Easier product-category separation
- Better use of limited floor space
- Suitable for mixed-product retail environments
Ventilated vs. Static Cooling
The UP models use ventilated cooling, which circulates chilled air through the cabinet and helps reduce temperature differences.
The SD-420Q uses static cooling, where refrigeration relies more on natural cold-air distribution.
The two systems serve different merchandising and storage requirements, giving retailers more flexibility when configuring the product mix.
Heated Glass for Freezer Visibility
Freezer doors operate at much lower temperatures than refrigerated cabinets and are more prone to condensation.
The triple-layer coated glass with electric heating helps keep the viewing surface clearer.
This improves:
- Product visibility
- Cabinet appearance
- Customer product identification
- Frozen-food merchandising quality
FAQ
1. What is a dual-temperature display cabinet?
It is a commercial refrigeration solution that provides separate chilled and frozen configurations for different product categories.
2. Is this one cabinet with two temperature zones?
The supplied product family includes coordinated refrigerator and freezer configurations. The exact physical combination arrangement should be confirmed for each project.
3. What cooling system does the UP-1200 use?
The UP-1200 uses ventilated cooling.
4. What cooling system does the SD-420Q use?
The SD-420Q uses static cooling.
5. What is the temperature of the SD-420Q?
The specified operating range is -18°C to -21°C.
6. What do M1 and L1 mean?
M1 and L1 are refrigeration performance classifications rather than direct temperature settings. Confirm the corresponding certified operating ranges before publishing specific °C values.
7. What refrigerants are available?
The UP models list R290 / R404A, while the SD-420Q uses R290.
8. What compressor brands are available?
UP models use Secop or Embraco, while the SD-420Q specification lists ZEL.
9. Does the cabinet include LED lighting?
Yes. All listed models include LED lighting.
10. What type of doors are used?
The series uses glass doors, including sliding configurations for convenient customer access.
11. Does the freezer glass have anti-condensation heating?
Yes. The product description specifies triple-layer coated tempered glass with electric heating for freezer applications.
12. Is automatic defrost included?
Yes. The product features include a hot-gas automatic defrost system.
13. How is defrost water handled?
A self-evaporating condensate system reduces the need for manual drainage.
14. Is this series suitable for ice cream?
Yes, provided the freezer configuration meets the required storage temperature of the ice cream product.
15. Which model has the largest capacity?
The UP-1200 has the largest listed effective capacity at approximately 605L.
