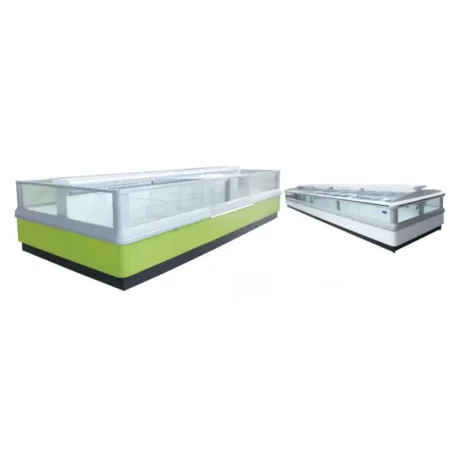

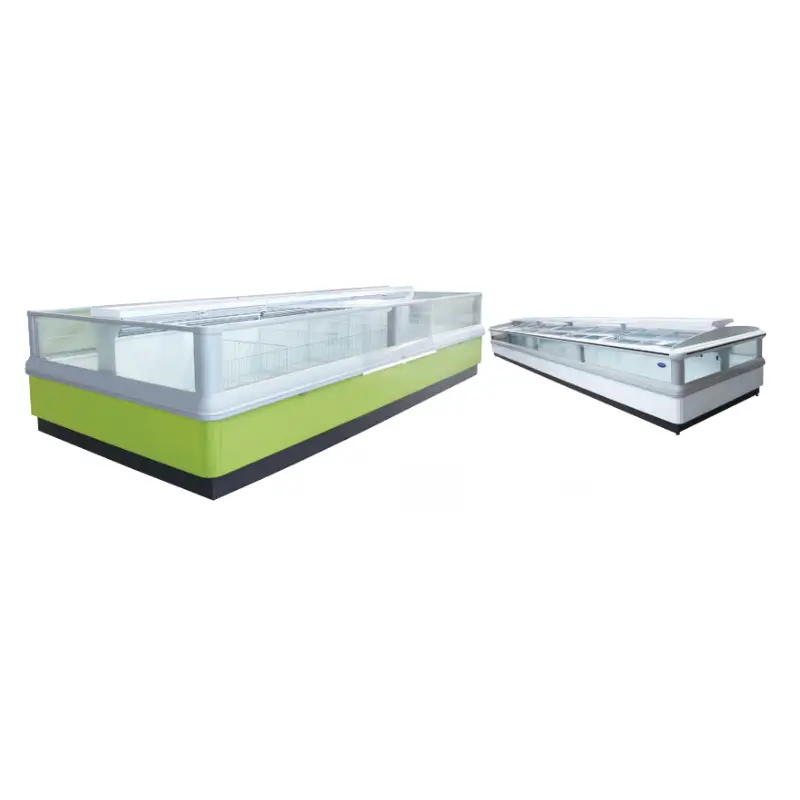

Remote Combination Island Freezer with Dual Air Outlet
Features
- Dual Air Outlet Cooling
- Remote Refrigeration Design
- Flexible Glass Door Options
- -18°C to -22°C Freezing
- Wide Modular Island Configurations
The Dual Air Outlet Remote Combination Island Freezer is designed for supermarkets, hypermarkets and large frozen-food departments requiring wide product presentation, flexible cabinet combinations and reliable low-temperature performance.
Unlike conventional self-contained island freezers, this series is built for remote refrigeration systems and features a specially designed dual air outlet structure. The optimized airflow delivers cold air efficiently across the display area, supporting faster temperature pull-down and more uniform refrigeration throughout the cabinet.
Operating at -18°C to -22°C, the series is suitable for frozen food, meat, seafood, ice cream, frozen vegetables and packaged ready meals. A specially designed evaporator coil further improves heat exchange and supports efficient refrigeration performance.
Multiple cabinet widths and depths are available, including 1550 mm and 1800 mm wide configurations. Glass door opening styles can also be selected according to the retail layout, including vertical push/pull and horizontal sliding arrangements.
With effective capacities ranging from 200L to 1790L, this series can be configured for compact retail zones as well as large supermarket island runs.
Features
Dual Air Outlet Refrigeration
The cabinet uses a dual air outlet design to distribute cold air more effectively across the frozen display area.
This helps improve pull-down performance and supports more uniform low-temperature conditions throughout wide island freezer configurations.
Energy-Efficient Evaporator Coil Design
A specially engineered evaporator coil helps increase refrigeration efficiency and optimize heat exchange.
This design is particularly useful for large-capacity island freezers operating continuously in supermarkets.
Remote Refrigeration System
The freezer is designed for connection to external refrigeration equipment rather than using an integrated condensing unit.
This makes it well suited to:
- Central supermarket refrigeration systems
- Multi-cabinet installations
- Large frozen-food departments
- Continuous island freezer lines
Maximum Frozen Food Visibility
The merchandising structure is designed to maximize the visible product area, helping customers browse frozen products more easily.
Display areas range from 1.73 m² to 7.63 m², depending on the selected model.
Multiple Glass Door Opening Options
The island freezer can be configured with different glass door mechanisms according to store requirements.
Available arrangements include:
- Up/down sliding glass doors
- Pull-type upper/lower glass doors
- Left-right horizontal sliding doors
This flexibility allows the freezer to adapt to different aisle widths and customer access patterns.
1550mm and 1800mm Width Options
The product family includes both 1550 mm and 1800 mm depth/width configurations, giving refrigeration planners more flexibility when designing supermarket layouts.
EBM Fan System
EBM fans provide stable forced-air circulation for consistent frozen storage conditions.
CAREL Temperature Control
CAREL electronic controllers provide convenient monitoring and accurate commercial refrigeration management.
Solenoid Valve as Standard
A solenoid valve is included as standard to support reliable refrigeration control.
Additional Filtration
The refrigeration circuit includes enhanced filtration to reduce contamination risk and help extend maintenance intervals.
LED Lighting
Integrated LED lighting improves visibility of frozen merchandise and supports a brighter retail presentation.
Technical Specifications
| Specification | DV-1918 | BV-2518 | DV-3818 | DV-1810D | DV-1916 | BV-2516 | DV-3816 | DV-1610D |
|---|---|---|---|---|---|---|---|---|
| Product Type | Remote Island Freezer | Remote Island Freezer | Remote Island Freezer | Remote Island Freezer | Remote Island Freezer | Remote Island Freezer | Remote Island Freezer | Remote Island Freezer |
| Product Dimensions (W × D × H) | 1875 × 1800 × 850 mm | 2500 × 1800 × 850 mm | 3750 × 1800 × 850 mm | 1800 × 960 × 850 mm | 1875 × 1550 × 850 mm | 2500 × 1550 × 850 mm | 3750 × 1550 × 850 mm | 1550 × 960 × 850 mm |
| Packing Dimensions (W × D × H) | 2170 × 2000 × 1050 mm | 2800 × 2000 × 1050 mm | 3950 × 2000 × 1050 mm | 2000 × 1100 × 1050 mm | 2170 × 1700 × 1050 mm | 2800 × 1700 × 1050 mm | 3950 × 1700 × 1050 mm | 1700 × 1100 × 1050 mm |
| Display Area | 3.81 m² | 5.08 m² | 7.63 m² | 1.96 m² | 3.38 m² | 4.52 m² | 6.78 m² | 1.73 m² |
| Effective Capacity | 870 L | 1180 L | 1790 L | 340 L | 620 L | 1050 L | 1580 L | 200 L |
| Cooling System | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling |
| Temperature Range | -18°C to -22°C | -18°C to -22°C | -18°C to -22°C | -18°C to -22°C | -18°C to -22°C | -18°C to -22°C | -18°C to -22°C | -18°C to -22°C |
| Refrigerant | R404A | R404A | R404A | R404A | R404A | R404A | R404A | R404A |
| Cooling Capacity* | 1200 | 1600 | 2400 | 800 | 1100 | 1400 | 2100 | 700 |
| Fan Brand | EBM | EBM | EBM | EBM | EBM | EBM | EBM | EBM |
| Temperature Controller | CAREL | CAREL | CAREL | CAREL | CAREL | CAREL | CAREL | CAREL |
| Lighting | LED Light | LED Light | LED Light | LED Light | LED Light | LED Light | LED Light | LED Light |
| 40′ GP Loading Qty. | 12 pcs | 8 pcs | 6 pcs | 24 pcs | 14 pcs | 8 pcs | 6 pcs | 28 pcs |
*The original specification does not indicate the unit of cooling capacity. Confirm whether these values are in watts before publishing.
Model Selection
1800mm Series
The DV-1918, BV-2518 and DV-3818 provide deeper 1800 mm configurations for large supermarket frozen-food departments.
Their effective capacities range from 870L to 1790L, with the DV-3818 providing the largest display area at 7.63 m².
1550mm Series
The DV-1916, BV-2516 and DV-3816 use a narrower 1550 mm footprint.
They are suitable for stores that require substantial frozen-food display capacity while preserving more aisle space.
Compact End Models
The DV-1810D and DV-1610D provide 340L and 200L capacities respectively.
These smaller configurations are suitable as end sections, compact freezer modules or supplemental frozen display units.
Application
Supermarket Frozen Food Departments
The wide cabinet configurations provide substantial product capacity for large frozen-food aisles.
Suitable merchandise includes:
- Frozen vegetables
- Frozen meals
- Frozen dumplings
- Pizza
- Packaged frozen snacks
- Frozen desserts
Frozen Meat and Seafood
The -18°C to -22°C range supports many frozen meat and seafood products whose required storage conditions fall within this range.
Ice Cream Displays
The large horizontal merchandising surface makes the cabinet suitable for ice cream and frozen dessert displays.
Hypermarkets
The DV-3818 and DV-3816 provide large continuous frozen-food merchandising areas for high-volume stores.
Central Supermarket Islands
The dual-sided island format makes it suitable for central store locations where customers can approach the freezer from multiple directions.
Retail Chain Projects
Multiple widths, depths and cabinet lengths allow retailers to create standardized frozen display layouts across different store formats.
Dual Air Outlet Design for Faster Refrigeration
The dual air outlet structure is the main technical difference between this series and conventional island freezers.
Instead of relying on a single cold-air delivery path, the cabinet directs chilled airflow across a broader area.
This can help:
- Improve cold-air distribution
- Reduce uneven temperature zones
- Support faster temperature recovery
- Improve refrigeration performance across wide cabinets
- Maintain stable conditions during busy retail operation
For large supermarket island freezers, this airflow architecture is especially important because the display area can exceed 7 m².
Flexible Door Configuration for Different Store Layouts
Different supermarkets require different customer access patterns.
This series therefore provides multiple glass door options instead of using one fixed opening mechanism.
A left-right sliding configuration can minimize front clearance, while an upper/lower sliding or pull configuration may provide easier access for wider product zones.
This allows refrigeration planners to match the door structure to:
- Aisle width
- Customer traffic
- Product placement
- Island orientation
- Store layout
Why Choose a Remote Combination Island Freezer?
A remote island freezer separates the display cabinet from the main refrigeration equipment.
For larger supermarkets, this can offer several advantages:
- Easier integration with centralized refrigeration
- Reduced compressor heat around the sales floor
- Reduced mechanical noise near customers
- Greater flexibility for large cabinet runs
- Easier refrigeration system planning for multiple cabinets
This makes the series particularly suitable for supermarket and hypermarket engineering projects rather than small standalone retail installations.
FAQ
1. What is a dual air outlet island freezer?
It is a commercial island freezer that uses multiple cold-air outlets to distribute refrigerated air more evenly across the display area.
2. What temperature range does the freezer operate at?
The specified operating range is -18°C to -22°C.
3. Is this a self-contained freezer?
No. This series is designed as a remote refrigeration island freezer and requires connection to external refrigeration equipment.
4. What refrigerant is specified?
The current technical specification lists R404A.
5. What fan brand is used?
All listed models use EBM fans.
6. What controller is installed?
The series uses CAREL refrigeration controllers.
7. What capacities are available?
Effective capacities range from 200L to 1790L, depending on the cabinet configuration.
8. What is the largest model?
The DV-3818 provides the largest effective capacity at 1790L and the largest display area at 7.63 m².
9. Are different cabinet depths available?
Yes. The main series includes configurations around 1550 mm and 1800 mm, together with narrower compact models.
10. Can the glass door style be customized?
Yes. The supplied product information indicates multiple door configurations, including upper/lower and horizontal sliding arrangements.
11. Does the freezer include LED lighting?
Yes. LED lighting is included across the listed models.
12. Is a solenoid valve included?
Yes. A solenoid valve is specified as standard.
13. Why is additional filtration used?
Additional filtration helps protect the refrigeration system from contaminants and can help reduce maintenance frequency.
14. What products can be displayed?
Typical applications include frozen meat, seafood, vegetables, ready meals, ice cream and other products compatible with the -18°C to -22°C operating range.
15. Is this series suitable for large supermarket projects?
Yes. Its remote refrigeration design, wide model range, dual air outlet system and flexible door configurations make it particularly suitable for supermarket and hypermarket installations.
