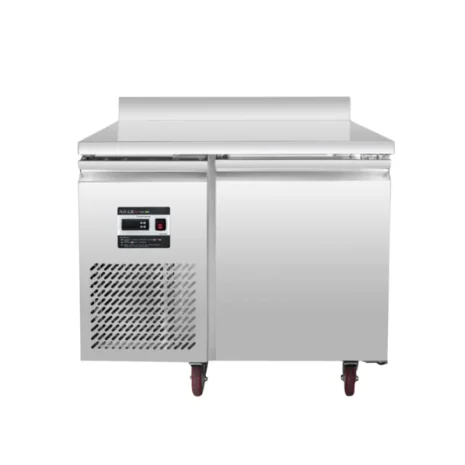

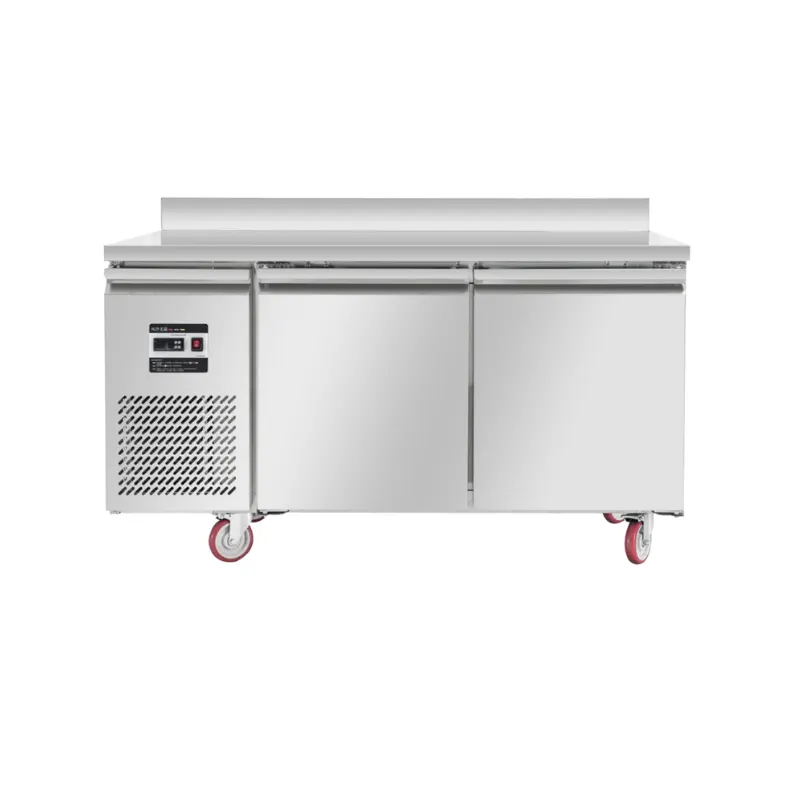

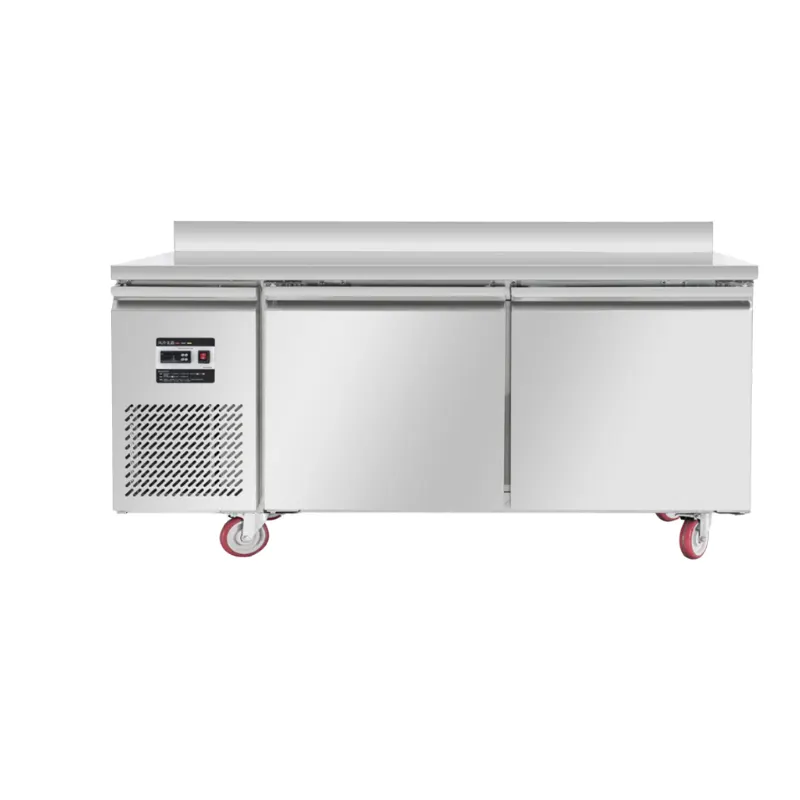

XU Series Stainless Steel Refrigerated Prep Counters
Features
- Preparation and storage in one unit: Position chilled or frozen supplies directly beneath the work surface.
- Four counter widths: Choose from 900 to 1800 mm to suit individual stations or longer preparation lines.
- 136–426L capacity options: Match storage volume to the quantity of stock needed at the workstation.
- Refrigerator or freezer versions: Specify the temperature function required for each preparation area.
- Ventilated cooling: Circulates cold air throughout the cabinet.
- HUAYI compressor and Carel controller: Branded components for refrigeration and temperature management.
- High-density foam insulation: Helps reduce heat transfer through the cabinet body.
- Adjustable shelving: Organise containers and ingredients according to their size.
Keep ingredients within reach while making full use of your preparation area. The XU Series stainless steel refrigerated counters combine a practical work surface with refrigerated or frozen storage underneath, helping commercial kitchens bring preparation and ingredient access into one workstation.
Available in 900, 1200, 1500 and 1800 mm widths, the range offers effective capacities from 136 to 426 litres. Every model shares a 760 mm depth and 850 mm height, making it easier to select the counter length that suits your kitchen layout.
Choose an R-series refrigerator with a 0°C to +10°C range or an F-series freezer with a listed temperature of −18°C. Ventilated cooling, a HUAYI compressor and a Carel temperature controller support the refrigeration system, while high-density foam insulation helps limit heat transfer into the cabinet.
Adjustable internal shelves accommodate different storage arrangements. Self-closing doors, removable door gaskets and automatic defrost simplify everyday operation and cleaning around a busy preparation station.
Key Features
- Preparation and storage in one unit: Position chilled or frozen supplies directly beneath the work surface.
- Four counter widths: Choose from 900 to 1800 mm to suit individual stations or longer preparation lines.
- 136–426L capacity options: Match storage volume to the quantity of stock needed at the workstation.
- Refrigerator or freezer versions: Specify the temperature function required for each preparation area.
- Ventilated cooling: Circulates cold air throughout the cabinet.
- HUAYI compressor and Carel controller: Branded components for refrigeration and temperature management.
- High-density foam insulation: Helps reduce heat transfer through the cabinet body.
- Adjustable shelving: Organise containers and ingredients according to their size.
- Removable door gaskets: Allow easier access for cleaning and replacement.
- Self-closing doors: Help reduce doors being accidentally left open.
- Automatic defrost: Reduces routine manual defrosting work.
- R290 refrigerant: Specified across all listed models.
Technical Specifications
Dimensions and Capacity
| Parameter | XU-0976 Series | XU-1276 Series | XU-1576 Series | XU-1876 Series |
|---|---|---|---|---|
| Freezer model | XU-0976F | XU-1276F | XU-1576F | XU-1876F |
| Refrigerator model | XU-0976R | XU-1276R | XU-1576R | XU-1876R |
| Dimensions (W × D × H) | 900 × 760 × 850 mm | 1200 × 760 × 850 mm | 1500 × 760 × 850 mm | 1800 × 760 × 850 mm |
| Packed dimensions (W × D × H) | 940 × 780 × 960 mm | 1240 × 780 × 960 mm | 1540 × 780 × 960 mm | 1840 × 780 × 960 mm |
| Effective capacity | 136 L | 233 L | 330 L | 426 L |
| Refrigerator temperature range | 0°C to +10°C | 0°C to +10°C | 0°C to +10°C | 0°C to +10°C |
| Listed freezer temperature | −18°C | −18°C | −18°C | −18°C |
Shared Features and Components
| Parameter | Specification |
|---|---|
| Cabinet type | Stainless steel refrigerated preparation counter |
| Cooling system | Ventilated cooling |
| Compressor | HUAYI |
| Fan brand | Yongrong |
| Temperature controller | Carel |
| Refrigerant | R290 |
| Insulation | High-density foam |
| Internal shelves | Adjustable |
| Defrost system | Automatic |
| Doors | Self-closing |
| Door gaskets | Removable |
F and R designate separate freezer and refrigerator versions. The supplied sheet lists −18°C for freezer models without specifying a full operating range. Stainless steel grade, shelf quantity and worktop load rating are not stated.
Application
Restaurant Preparation Lines
Store frequently used ingredients below the preparation surface, reducing trips to a separate refrigerator during service.
Sandwich Shops and Cafés
Create a compact assembly station with refrigerated supplies underneath. Select the counter width according to the available preparation space.
Bakery and Pastry Workstations
Keep suitable chilled ingredients or frozen stock near the working area. Choose the refrigerator or freezer version to match the products being stored.
Catering Kitchens
Use longer counter models to combine preparation space with additional cold storage for batch assembly and portioning.
Small Commercial Kitchens
Use the 900 mm model where space is limited, bringing a worktop and 136L of refrigerated or frozen storage into the same footprint.
FAQ
What is the difference between F and R models?
F models are freezers, with a listed temperature of −18°C. R models are refrigerators, with a range of 0°C to +10°C. Select the required version when ordering.
Can one counter switch between refrigeration and freezing?
The supplied specifications identify separate F and R models. A convertible operating mode is not specified.
Which sizes are available?
The counters come in 900, 1200, 1500 and 1800 mm widths. All listed models are 760 mm deep and 850 mm high.
Does a wider counter provide more storage?
Yes. Effective capacity increases from 136L in the 900 mm model to 426L in the 1800 mm model.
Can the internal shelves be repositioned?
Yes. Adjustable shelving is listed as a standard feature. Confirm shelf dimensions and load limits if you use specific containers.
How do removable door gaskets help with cleaning?
They provide access to areas around the door seal that can collect residue. Follow the manufacturer’s instructions for removal, cleaning and refitting.
Are castors included?
The pictured XU-1576F has castors, but the specification table does not confirm them for every model. Check the supplied base configuration before ordering.
Can heavy appliances be placed on the worktop?
The worktop load rating and suitability for supporting appliances are not provided. Confirm these details before placing heavy or heat-producing equipment on the counter.
Does this counter include ingredient wells or a topping rail?
The supplied information describes enclosed undercounter storage and a work surface. It does not list refrigerated ingredient wells or a topping rail.
