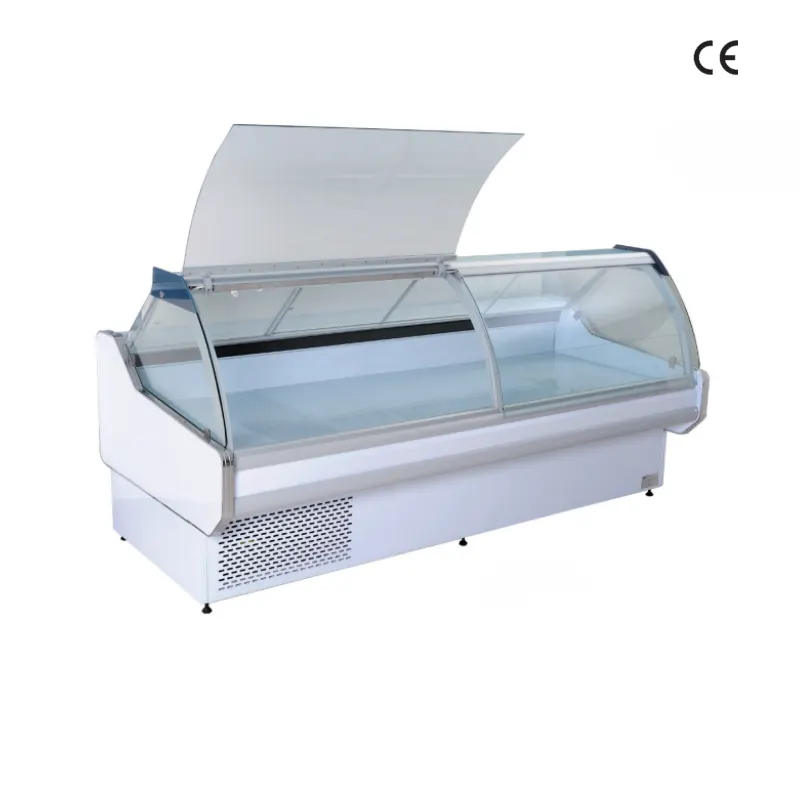

1160mm Service Counter Refrigerated Display Case with Lift-Up Curved Glass
Features
- 1160mm Deep Service Counter
- Lift-Up Curved Front Glass
- Stainless Steel Food Interior
- 0–5°C Fan Cooling
- With / Without Compressor Options
The 1160mm Series Service Counter Refrigerated Display Case is designed for supermarkets, delicatessens, butcher shops, bakeries, specialty food stores and foodservice counters that require a spacious assisted-service display with convenient staff access.
With a 1160 mm cabinet depth, this series provides a larger merchandising platform than compact service counters, offering effective capacities from 320L to 750L and display areas up to 3.08 m².
The customer-facing side uses lift-up curved glass, giving shoppers a clear view of displayed products while allowing staff to access the interior easily for cleaning, replenishment and product arrangement. A stainless steel interior supports hygienic food presentation, while the rear stainless steel worktop provides a practical area for portioning, packaging and preparation.
The cabinet operates from 0°C to +5°C and uses fan-assisted refrigeration with CAREL electronic control. Multiple widths are available, and selected configurations can be supplied with or without a compressor, making the series suitable for both self-contained and project-based refrigeration installations.
Features
1160mm Deep Display Platform
The 1160 mm cabinet depth provides a generous refrigerated display area for high-volume service counters.
This makes the series suitable for stores that need to present more products within a single continuous counter.
Lift-Up Curved Glass
The curved front glass can be lifted upward for convenient access.
This makes it easier for staff to:
- Refill merchandise
- Clean the display
- Rearrange products
- Perform routine maintenance
Assisted-Service Counter Design
The cabinet is designed for face-to-face service environments where staff operate from behind the counter and customers view products from the front.
This setup is suitable for deli, meat, prepared food and specialty retail applications.
Stainless Steel Interior
The inner display area uses stainless steel for durability, hygiene and convenient cleaning.
Rear Stainless Steel Worktop
A rear stainless steel working surface provides space for product preparation, packing and service operations.
Fan-Assisted Refrigeration
Forced-air cooling distributes chilled air throughout the display area for more even temperature performance.
0°C to +5°C Temperature Range
The cabinet is designed to operate between 0°C and +5°C, making it suitable for many chilled foods whose storage requirements fall within this range.
With or Without Compressor
Depending on the model and project requirement, the cabinet can be configured with a compressor or supplied without one for connection to an external refrigeration system.
This gives distributors and commercial refrigeration contractors greater installation flexibility.
CAREL Temperature Controller
The series uses CAREL electronic controls for reliable commercial temperature management.
LED Lighting
Built-in LED lighting enhances product visibility across the curved display area.
Magnetic Front Panel
The magnetic front panel improves access for routine cleaning and service.
Integrated Castors
Built-in support wheels make positioning and relocation more convenient during installation and store maintenance.
Technical Specifications
| Specification | BSS-1311RGC / CSS-1311RGC | BSS-2011RGC / CSS-2011RGC | BSS-2511RGC / CSS-2511RGC | BSS-3811RGC / CSS-3811RGC |
|---|---|---|---|---|
| Product Type | Service Counter Display Case | Service Counter Display Case | Service Counter Display Case | Service Counter Display Case |
| Product Dimensions (W × D × H) | 1336 × 1160 × 1200 mm | 1960 × 1160 × 1200 mm | 2560 × 1160 × 1200 mm | 3836 × 1160 × 1200 mm |
| Packing Dimensions (W × D × H) | 1450 × 1260 × 1400 mm | 2070 × 1260 × 1400 mm | 2710 × 1260 × 1400 mm | 3950 × 1260 × 1400 mm |
| Display Area | 1.10 m² | 1.60 m² | 2.12 m² | 3.08 m² |
| Effective Capacity | 320 L | 390 L | 530 L | 750 L |
| Cooling System | Fan Cooling | Fan Cooling | Fan Cooling | Fan Cooling |
| Temperature Range | 0°C to +5°C | 0°C to +5°C | 0°C to +5°C | 0°C to +5°C |
| Refrigerant | R404A | R404A | R404A | R404A |
| Compressor | Secop / Without Compressor | Secop / Without Compressor | Secop / Without Compressor | Boyang / Without Compressor |
| Temperature Controller | CAREL | CAREL | CAREL | CAREL |
| Lighting | LED Light | LED Light | LED Light | LED Light |
| Front Glass | Lift-Up Curved Glass | Lift-Up Curved Glass | Lift-Up Curved Glass | Lift-Up Curved Glass |
| 40′ GP Loading Qty. | 9 pcs | 9 pcs | 4 pcs | 3 pcs |
Model Options
320L Model
The BSS/CSS-1311RGC provides 320L capacity and a 1.10 m² display area.
It is suitable for smaller deli counters, cafés and specialty food retailers.
390L Model
The BSS/CSS-2011RGC expands the display area to 1.60 m², providing more space for chilled product presentation.
530L Model
The BSS/CSS-2511RGC offers 530L effective capacity and a 2.12 m² display area, making it suitable for medium-to-large supermarket service counters.
750L Model
The BSS/CSS-3811RGC is the largest model in the series, providing 750L capacity and a 3.08 m² display area.
It is suitable for long deli, butcher or prepared-food counter runs.
Application Scenarios
Supermarket Deli Counters
The wide refrigerated platform provides space for prepared foods, cold cuts and packaged specialties.
Butcher Shops
Suitable for chilled meat display when the product’s required storage conditions are compatible with the cabinet’s 0°C to +5°C operating range.
Prepared Food Counters
The rear worktop provides convenient preparation space for portioning and packaging food during customer service.
Bakery & Dessert Shops
The cabinet can be used for selected chilled pastries, cakes, desserts and packaged bakery products.
Cheese & Specialty Food Stores
The service counter layout works well for cheese, delicatessen products and other staff-served chilled foods.
Large Supermarkets
The 3836 mm model is particularly suitable for larger stores requiring an extended continuous service display.
Why Choose a 1160mm Deep Service Counter?
Compared with shallower service counters, a 1160 mm cabinet provides additional merchandising depth and greater usable display capacity.
This is valuable for retailers that need to present a broad product range while maintaining a professional assisted-service format.
The deeper configuration supports:
- More product rows
- Larger trays
- Greater display volume
- Better separation of food categories
- Longer service-counter merchandising runs
With Compressor vs. Without Compressor
One key advantage of this series is configuration flexibility.
With Compressor
A compressor-equipped version provides a more self-contained refrigeration solution and is suitable where independent installation is preferred.
Without Compressor
A compressor-free configuration can be connected to a remote refrigeration system, making it more suitable for supermarket engineering projects and centralized refrigeration layouts.
This flexibility is particularly useful for OEM customers, refrigeration contractors and chain-store projects.
FAQ
1. What is the main feature of this 1160mm service counter?
Its main advantages are the deeper 1160 mm cabinet, lift-up curved glass and large assisted-service display area.
2. What is the operating temperature range?
The specified temperature range is 0°C to +5°C.
3. What type of front glass is used?
The cabinet uses lift-up curved glass for easy access and cleaning.
4. What material is used inside the cabinet?
The interior is made from stainless steel.
5. Does the cabinet include a rear worktop?
Yes. A rear stainless steel worktop provides convenient preparation and packaging space.
6. What capacities are available?
The series provides effective capacities of:
- 320L
- 390L
- 530L
- 750L
7. Does the cabinet use fan cooling?
Yes. All models use fan-assisted refrigeration.
8. What refrigerant is specified?
The listed refrigerant is R404A.
9. What controller is used?
The series uses CAREL temperature controllers.
10. Can the cabinet be supplied without a compressor?
Yes. Selected configurations can be supplied without a compressor for remote refrigeration projects.
11. What compressor brands are available?
The listed configurations include Secop and Boyang, depending on model.
12. Does the cabinet include LED lighting?
Yes. LED lighting is standard.
13. Is the front panel easy to service?
Yes. The magnetic front panel improves access for routine maintenance.
14. Can the cabinet be moved?
Yes. Integrated support wheels make repositioning easier.
15. Which model has the largest display area?
The BSS-3811RGC / CSS-3811RGC provides the largest display area at 3.08 m² and an effective capacity of 750L.
