Open Front Cake Refrigerated Display Case

Highlights

  • Open-front refrigerated display for self-service retail
  • Low and high cabinet options in four widths
  • Ventilated cooling with trapezoidal air curtain
  • Copper-aluminum fin evaporator
  • Embraco refrigeration unit and Dixell temperature controller
  • New-style LED lighting designed to reduce dark areas
  • Movable feet for convenient positioning
  • Clip-on fan base for easier maintenance
  • R290 refrigerant
  • Listed temperature class: 3M2 (−1 to 7°C / 30.2 to 44.6°F)
Download Datasheet

Built for self-service merchandising, the STP Series presents chilled products in an open, easy-to-browse format. The range includes low and high cabinet versions in four widths, so retailers can choose a display size to fit their floor plan and product volume. Ventilated cooling, a trapezoidal air curtain, and a copper-aluminum fin evaporator support even cold-air distribution across the shelves. New-style LED lighting helps illuminate the display, while movable feet and a clip-on fan base simplify positioning and service access. All models are listed with an Embraco compressor, Dixell controller, R290 refrigerant, and a 3M2 temperature class.

Highlights

  • Open-front refrigerated display for self-service retail
  • Low and high cabinet options in four widths
  • Ventilated cooling with trapezoidal air curtain
  • Copper-aluminum fin evaporator
  • Embraco refrigeration unit and Dixell temperature controller
  • New-style LED lighting designed to reduce dark areas
  • Movable feet for convenient positioning
  • Clip-on fan base for easier maintenance
  • R290 refrigerant
  • Listed temperature class: 3M2 (−1 to 7°C / 30.2 to 44.6°F)

Specifications

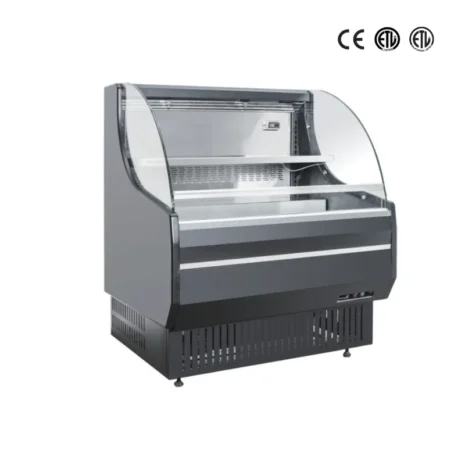

Low Models

Specification STP2834LE / LU STP3934LE / LU STP5034LE / LU STP6334LE / LU
Dimensions (W × D × H) 710 × 842 × 1175 mm 990 × 842 × 1175 mm 1290 × 842 × 1175 mm 1600 × 842 × 1175 mm
Package dimensions (W × D × H) 760 × 892 × 1275 mm 1040 × 892 × 1275 mm 1340 × 892 × 1275 mm 1650 × 892 × 1275 mm
Capacity 0.14 m³ / 4.94 ft³ 0.20 m³ / 6.88 ft³ 0.25 m³ / 8.93 ft³ 0.32 m³ / 11.08 ft³
Display area 0.44 m² / 4.73 ft² 0.61 m² / 6.56 ft² 0.80 m² / 8.61 ft² 0.99 m² / 10.56 ft²
Refrigerant R290 R290 R290 R290
Temperature class 3M2 3M2 3M2 3M2
Compressor Embraco Embraco Embraco Embraco
Controller Dixell Dixell Dixell Dixell
40-ft GP container loading 78 52 42 28

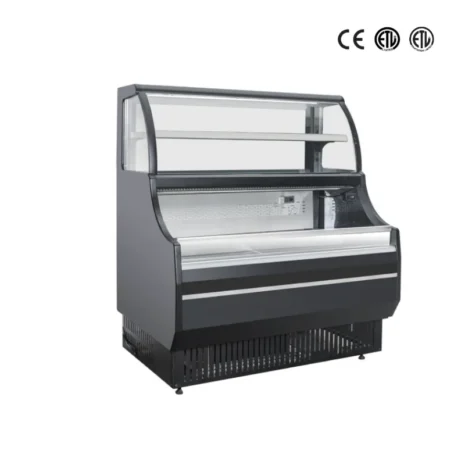

High Models

Specification STP2834HE / HU STP3934HE / HU STP5034HE / HU STP6334HE / HU
Dimensions (W × D × H) 710 × 842 × 1460 mm 990 × 842 × 1460 mm 1290 × 842 × 1460 mm 1600 × 842 × 1460 mm
Package dimensions (W × D × H) 760 × 892 × 1561 mm 1040 × 892 × 1561 mm 1340 × 892 × 1561 mm 1650 × 892 × 1561 mm
Capacity 0.23 m³ / 8.05 ft³ 0.32 m³ / 11.23 ft³ 0.41 m³ / 14.41 ft³ 0.51 m³ / 18.15 ft³
Display area 0.56 m² / 6.02 ft² 0.78 m² / 8.39 ft² 1.00 m² / 10.76 ft² 1.26 m² / 13.56 ft²
Refrigerant R290 R290 R290 R290
Temperature class 3M2 3M2 3M2 3M2
Compressor Embraco Embraco Embraco Embraco
Controller Dixell Dixell Dixell Dixell
40-ft GP container loading 39 26 21 14

The charts group E/L and U model variants together and do not explain the suffix differences. Confirm the exact variant and configuration with the supplier. Capacity, display area, and temperature class are transcribed from the supplied charts.

Applications

Suitable for supermarkets, convenience stores, grocery shops, cafés, and food-service outlets displaying chilled packaged foods, drinks, dairy products, or grab-and-go items.

FAQ

What is the difference between the low and high models?
The low models are 1175 mm high; the high models are 1460 mm high. Higher models also have greater listed capacity and display area at each width.

What does the 3M2 temperature class mean?
The charts list 3M2 and show −1 to 7°C (30.2 to 44.6°F). Confirm the required operating conditions with the supplier for your products and store environment.

What cooling system do these display cases use?
All listed models use ventilated cooling with a trapezoidal air curtain.

Which refrigeration components are specified?
The charts list an Embraco compressor, Dixell controller, and R290 refrigerant.

Are the shelves and lighting included?
The supplied product details describe adjustable shelves and new-style LED lighting. Confirm the shelf configuration for the selected model.

What do the E, L, U, H, and other model suffixes mean?
The charts list several suffix variants but do not define them. Ask the supplier to confirm the differences before ordering.
